Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL30

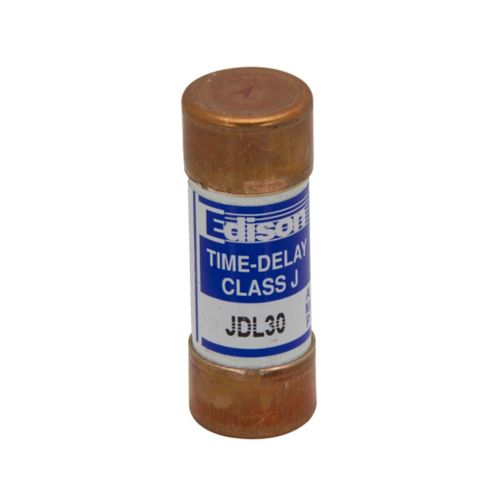

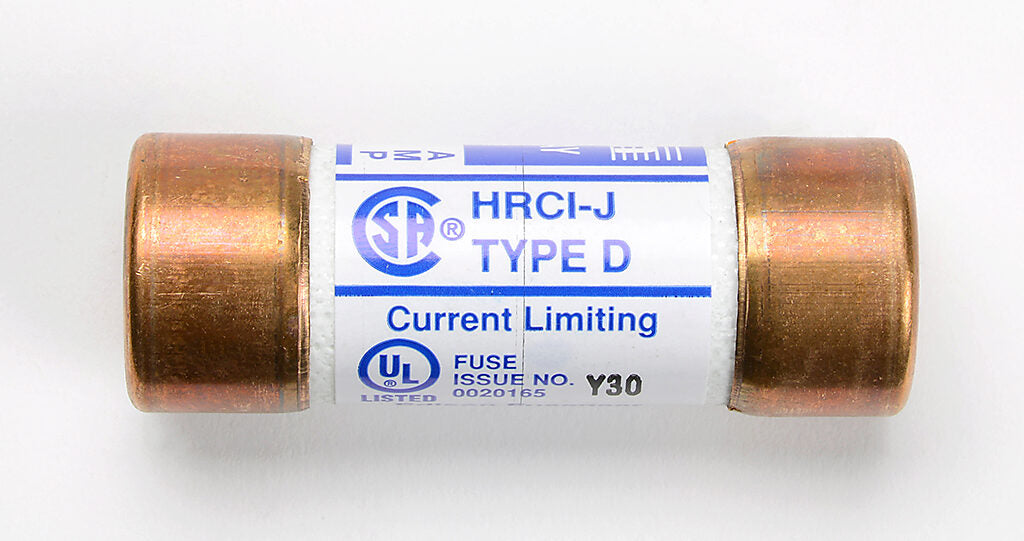

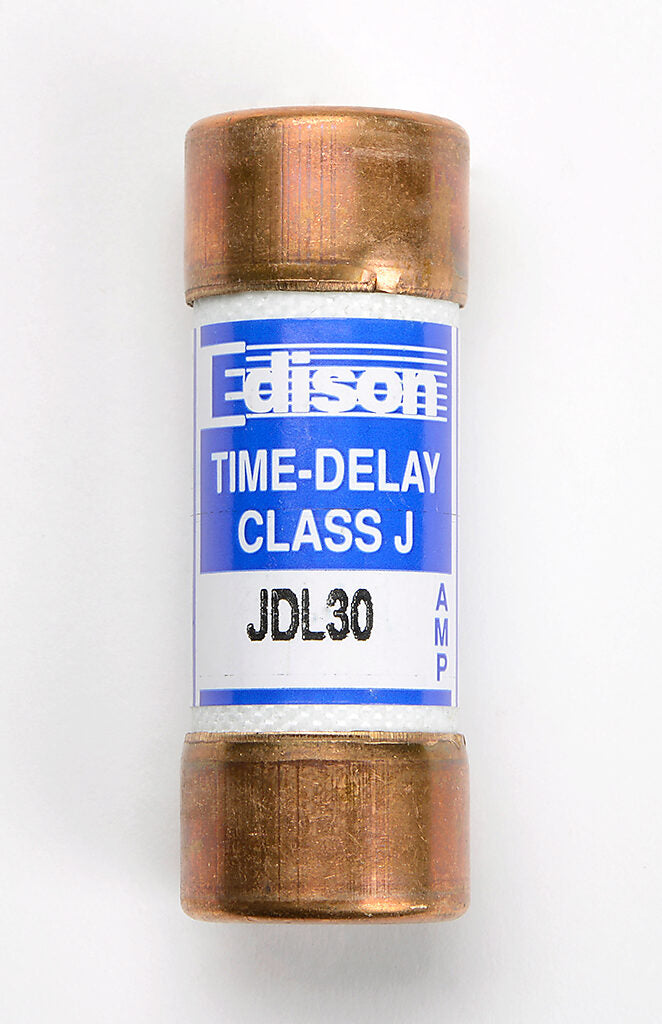

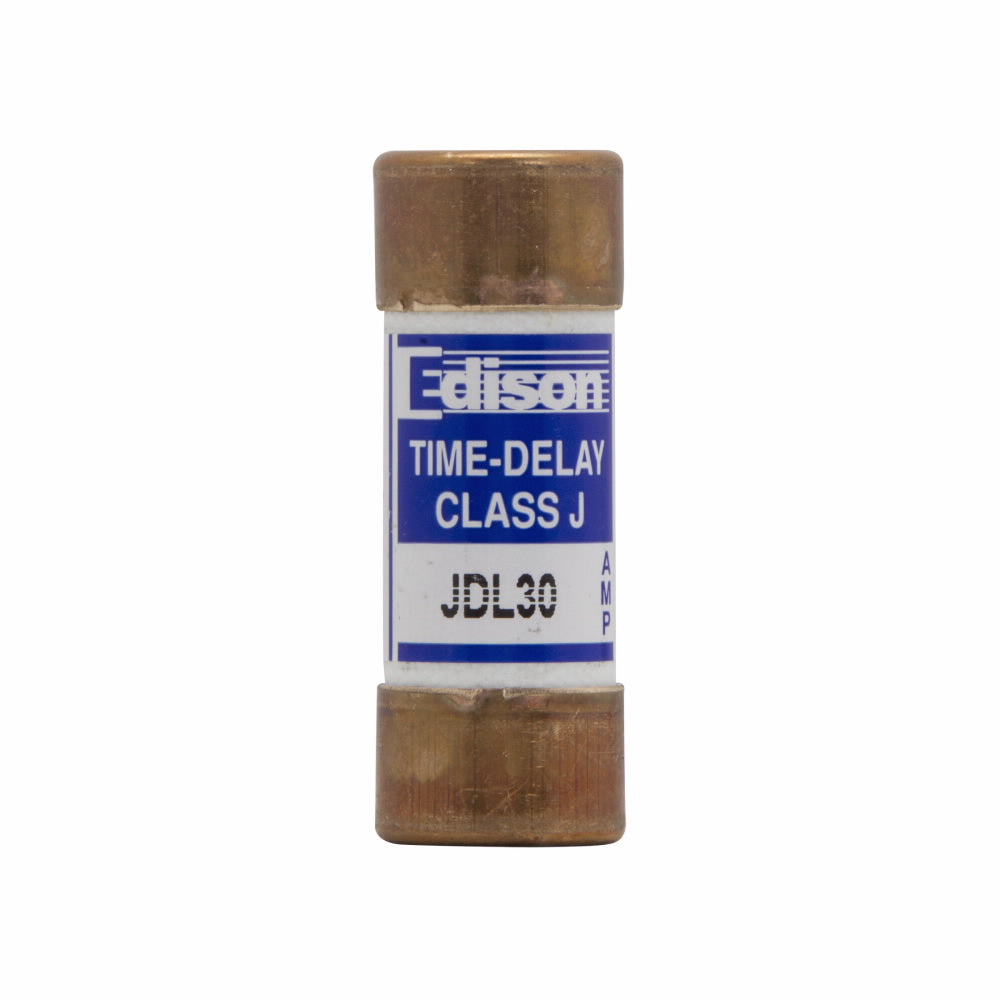

JDL30 is a 30 amp, 600 volt Class J time-delay fuse from Edison Fuses designed for reliable circuit protection.This fuse features a true dual-element design providing a minimum 10 second time-delay at 500% overload to minimize nuisance openings. It is a 1 pole, current-limiting fuse with a 300kA interrupting rating at 600 VAC. The fuse has a compact barrel style with a diameter of 0.81 inches and is suitable for feeder and branch circuit protection applications. It complies with IEC Standard 947-4-1 for Type 2 no damage motor circuit protection and runs cooler due to lower resistance.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 600 VAC
- Poles: 1
- Fuse Type: Class J, Time-Delay, Dual Element
- Interrupt Rating: 300kA at 600 VAC
- Mounting Type: Ferrule (Barrel) style
- Dimensions: 0.81 inch diameter
- Series: JDL
- Trip Unit: Time-Delay (minimum 10 second at 500% overload)
- Certifications: IEC 947-4-1 Type 2 Coordination
Specifications
- Part Number: JDL30
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 30
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 078263480340
- GTIN : 00782634803409
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
