Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL3

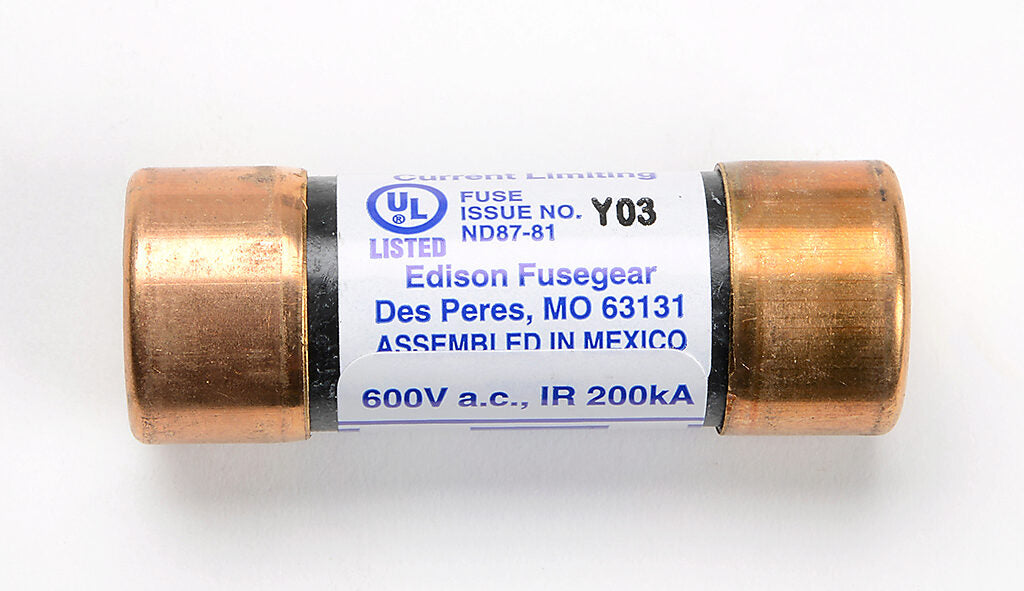

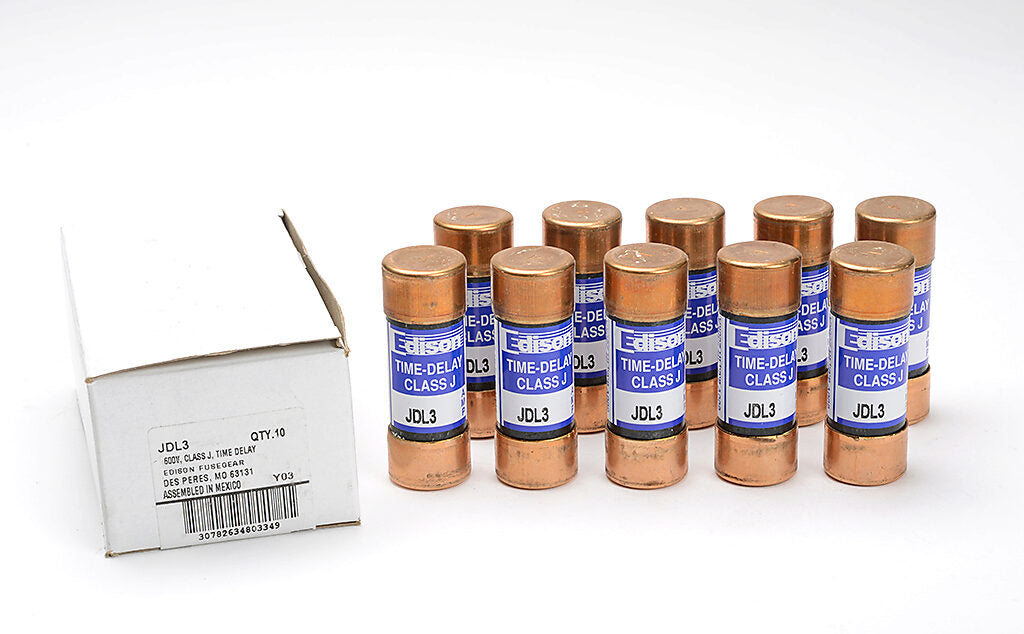

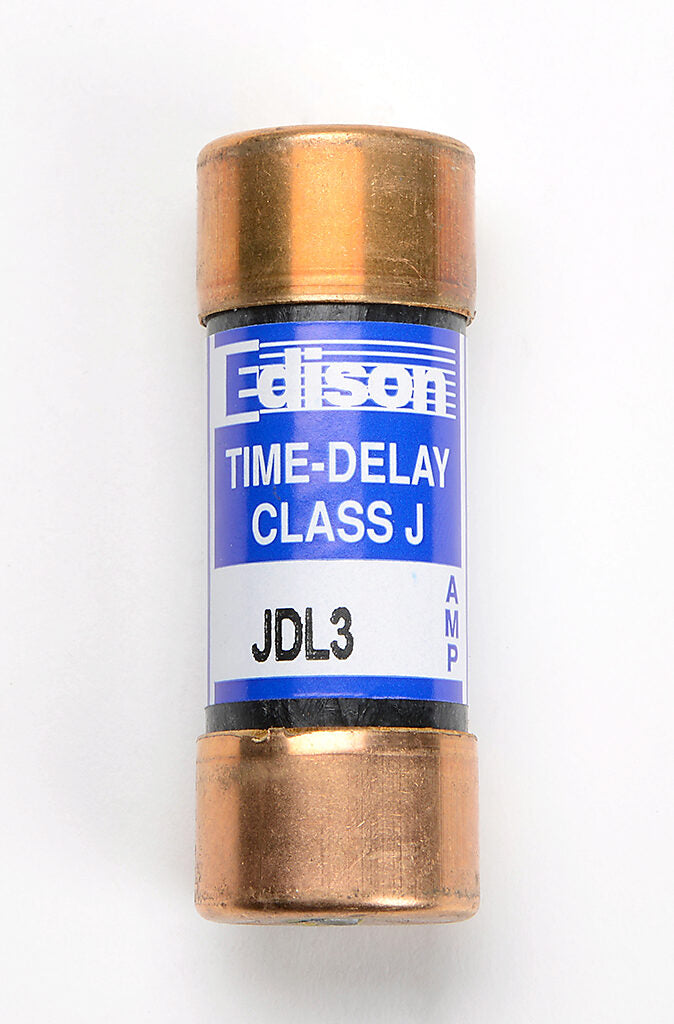

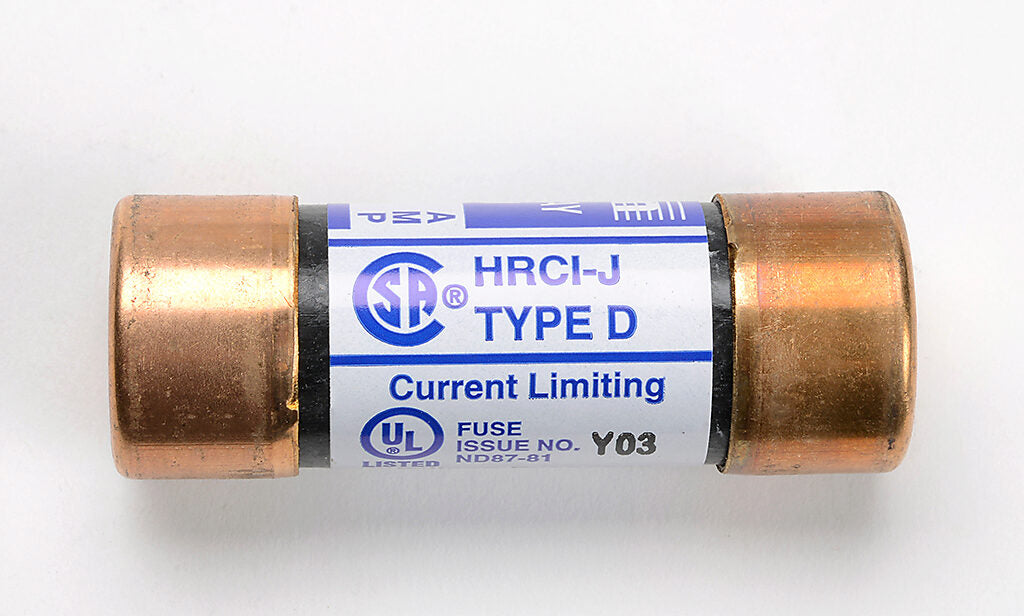

JDL3 is a Class J time-delay current-limiting fuse from Edison Fuses, designed for reliable circuit protection in demanding applications.
This non-indicating, single-barrel fuse offers a 3A amperage rating and a 600V voltage rating, with a high interrupting capacity of 200,000 amps. It is UL and CSA certified for safety and compliance, and features a compact, space-saving design suitable for a variety of industrial and commercial installations. The JDL3 is part of the popular Edison JDL series, known for robust performance and dual-element construction for time-delay operation.
-
Key Specifications
- Part Number: JDL3
- Manufacturer: Edison Fuses
- Amperage: 3A
- Voltage: 600V
- Poles: 1
- Mounting Type: Fuse holder (barrel type, not panel mount)
- Interrupt Rating: 200,000A (200kA)
- Series/Frame: JDL
- Trip Unit: Time-delay (dual-element)
- Certifications: UL, CSA
- Non-indicating
- 1 Barrel construction
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL3
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 3
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 78263480334
- GTIN : 00782634803348
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
