Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL200

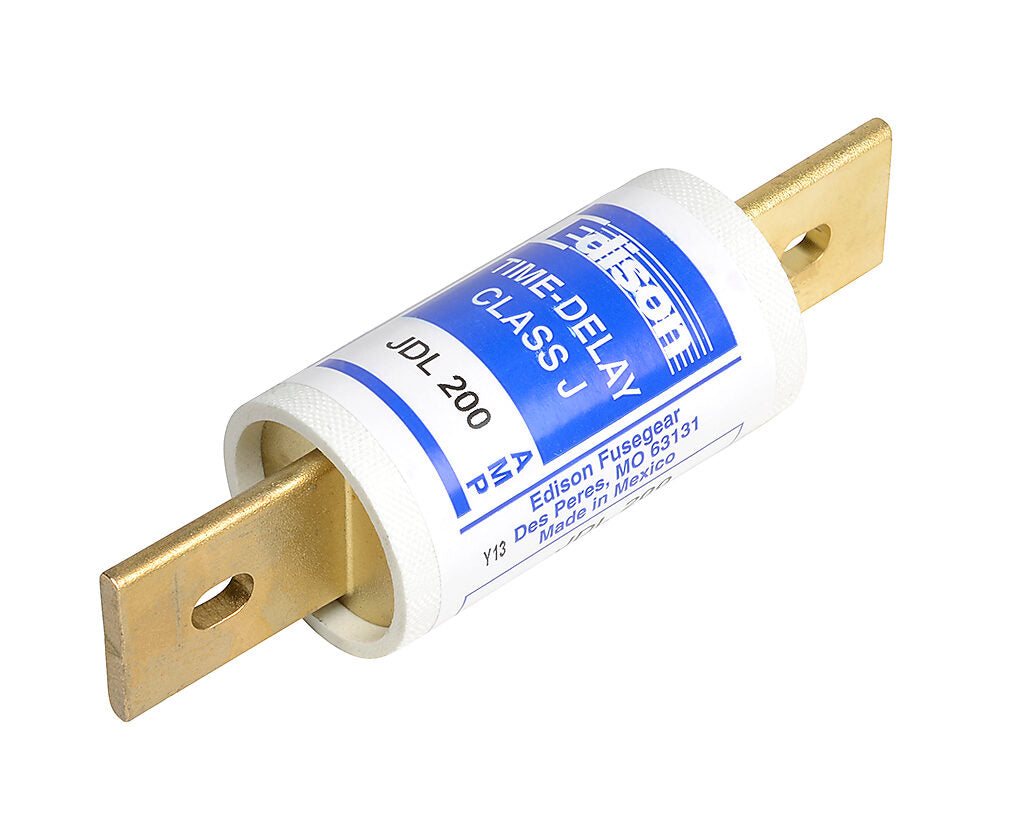

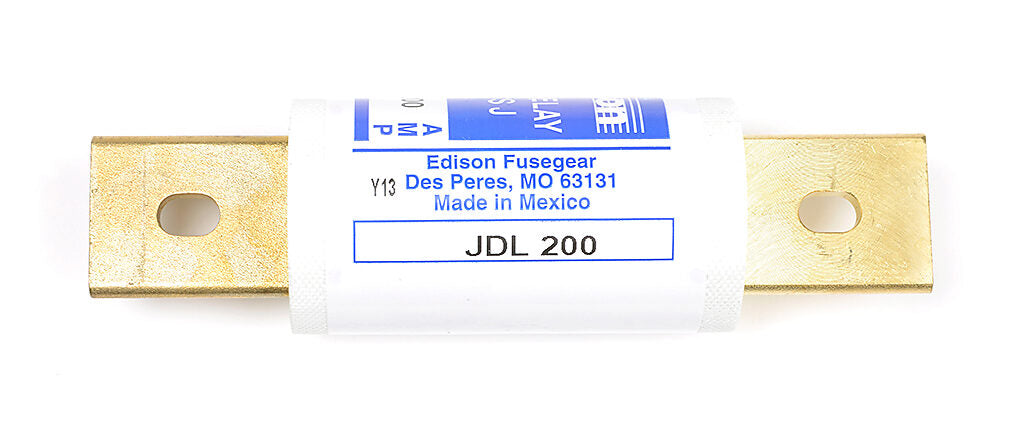

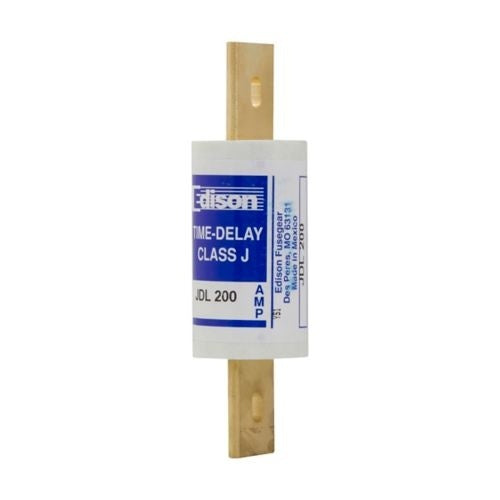

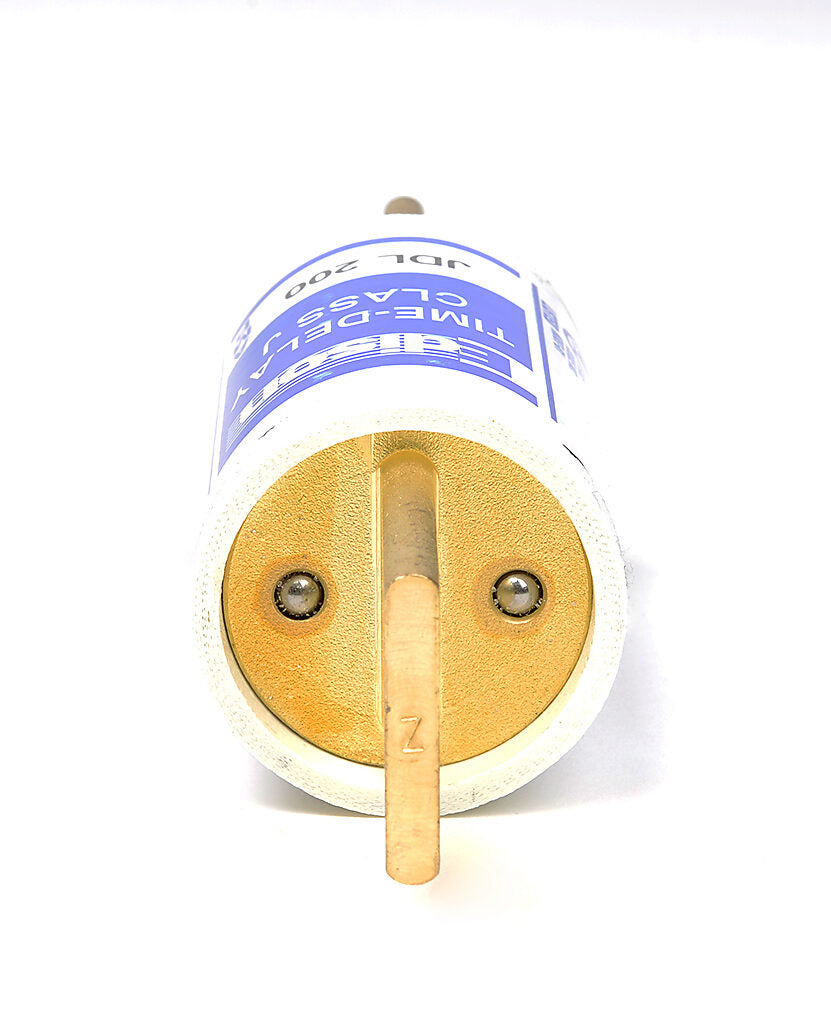

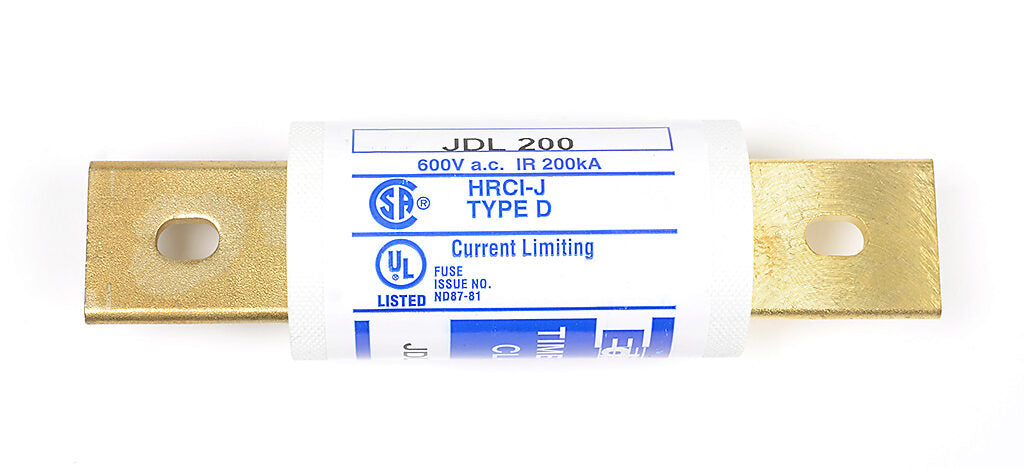

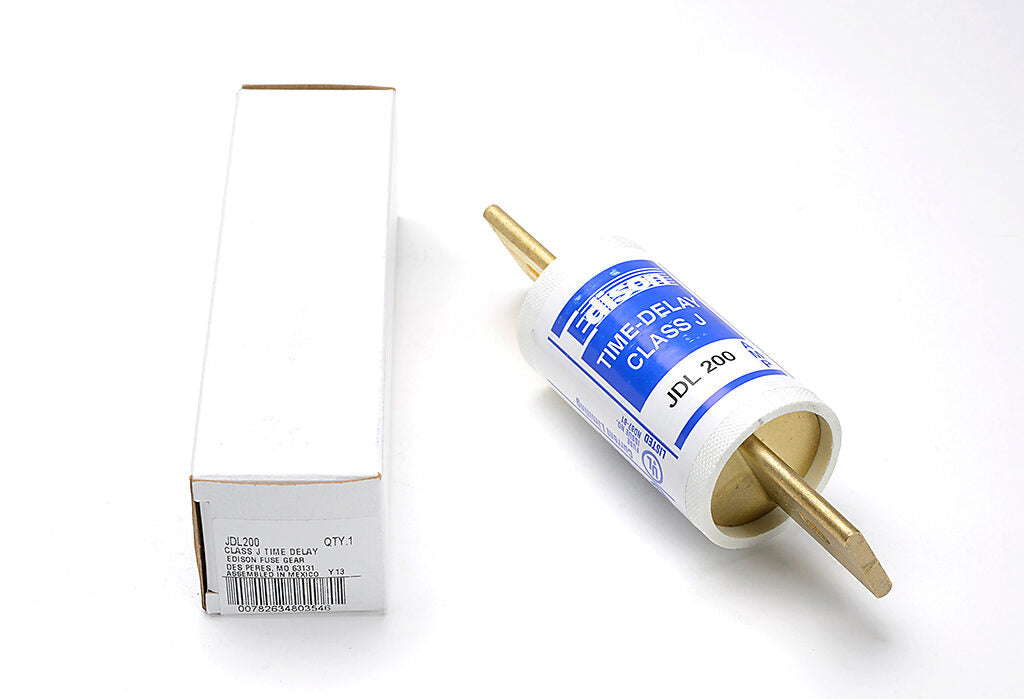

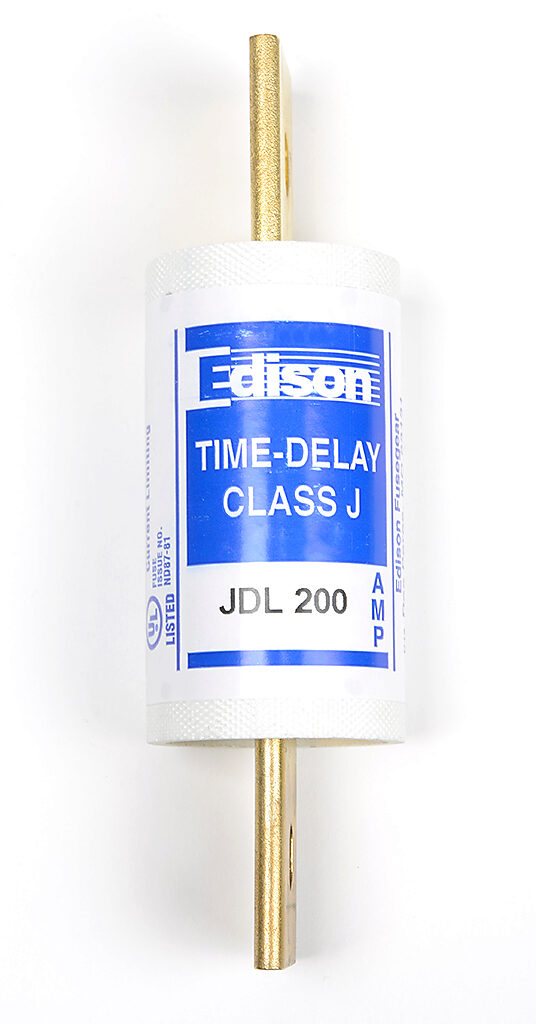

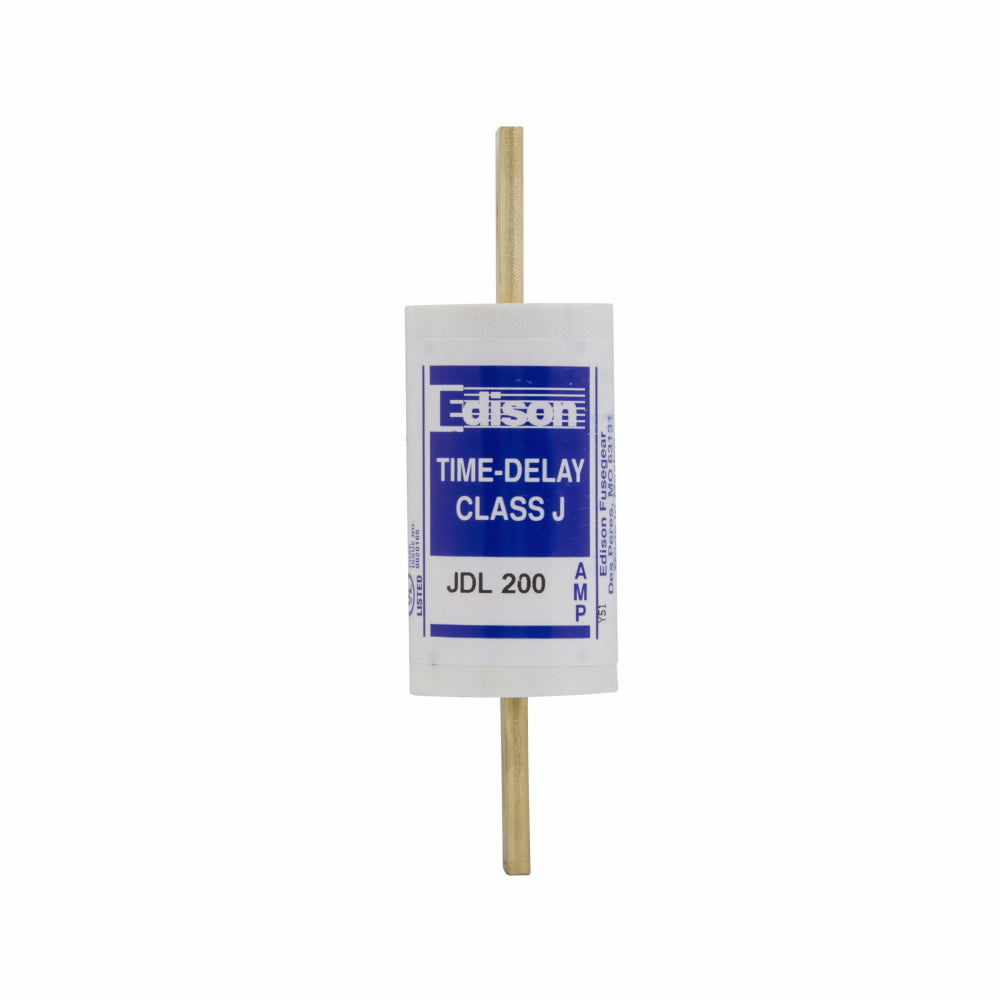

JDL200 is a Class J, time-delay, current-limiting fuse rated for 600V and 200A, designed for feeder and branch circuit protection in industrial and commercial applications. This Edison Fuses JDL200 features a knife blade mounting style, 1.63 inch diameter, and a length of 5.75 inches. It is a single-pole, non-indicating fuse with a 200kA interrupt rating at 600V, suitable for use in fuse blocks and disconnect switches. The fuse is UL and CSA C22.2 certified for safety and reliability.
- Part Number: JDL200
- Manufacturer: Edison Fuses
- Amperage: 200A
- Voltage: 600V
- Poles: 1
- Mounting Type: Knife Blade
- Interrupt Rating: 200kA @ 600V
- Series: JDL
- Frame: Class J
- Trip Unit: Time-Delay
- Certifications: UL, CSA C22.2
- Length: 5.75 inches
Specifications
- Part Number: JDL200
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data

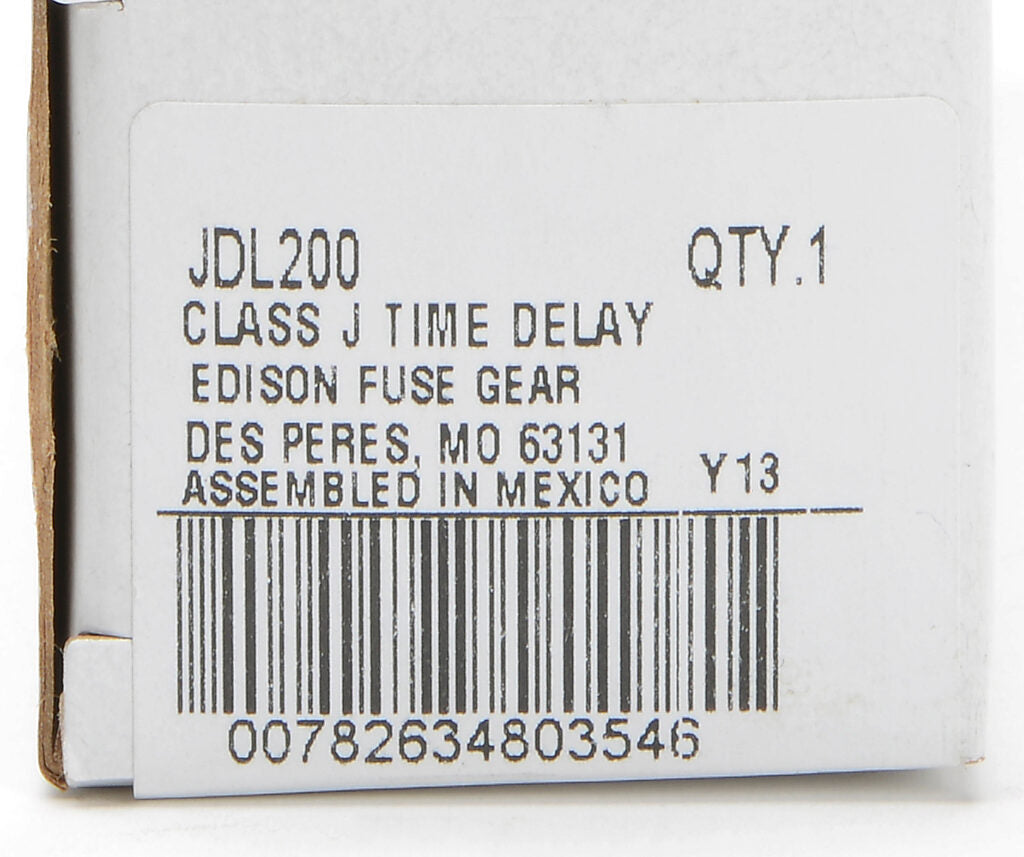

- UPC : 78263480354
- GTIN : 00782634803546
- Dimensions : 5.75 in x 1.63 in x 1.63 in (Length/Depth x Height x Width)
- Weight : 4.25
