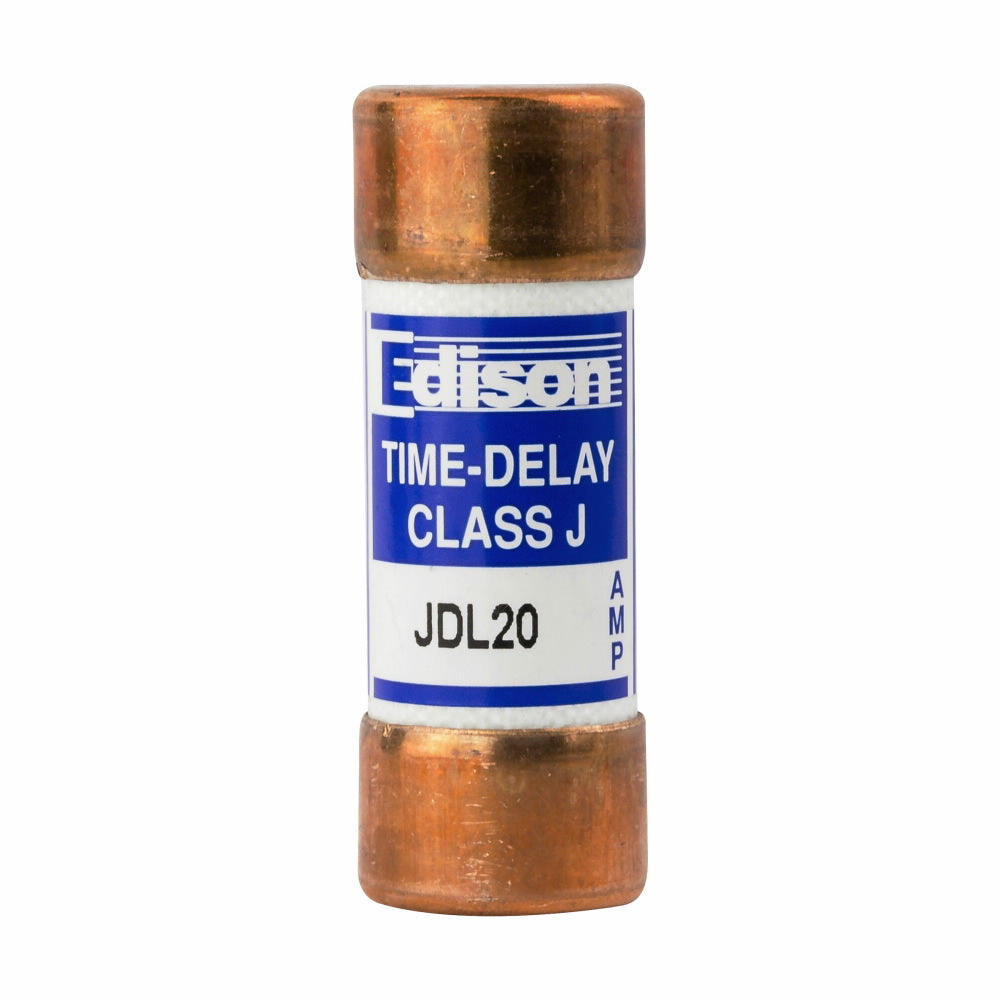

JDL20 - Edison Fuses 20 Amp 600V Class J Time-Delay Current-Limiting Fuse, Non-Indicating, 200 kAIC, Ferrule Mount

JDL20

JDL20 is a Class J, time-delay, current-limiting fuse from Edison Fuses, designed for reliable circuit protection in demanding electrical applications.

This non-indicating, dual-element fuse offers a 20 Amp rating at 600V AC, with a high interrupting capacity of 200 kAIC. It features a true time-delay characteristic, minimizing nuisance trips during temporary overloads while providing fast response to short-circuit conditions. The JDL20 is UL listed and CSA approved, ensuring compliance with North American safety standards. Its unique ferrule design prevents substitution with fuses of lesser capability, and the compact form factor saves valuable panel space.

Key Specifications
• Part Number: JDL20
• Manufacturer: Edison Fuses
• Amperage: 20 Amp
• Voltage: 600V AC
• Poles: Single
• Mounting Type: Ferrule
• Interrupt Rating: 200 kAIC
• Series/Frame: Class J
• Trip Unit: Time-delay, dual-element
• Certifications: UL, CSA C22.2
• Response: Current-limiting, time-delay
• Application: Feeder and branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL20
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : JDL
• Voltage : 600
• Amperage : 20
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 782634803386
• GTIN : 00782634803386
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1
