Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL2

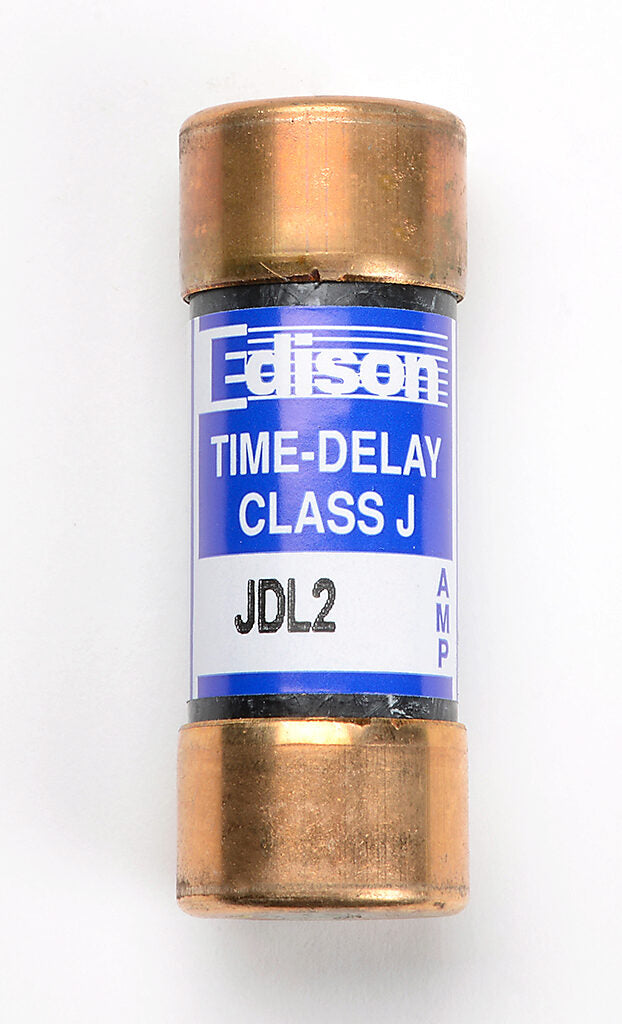

JDL2 is a Class J time-delay, current-limiting fuse from Edison Fuses, designed for feeder and branch circuit protection in low voltage applications.
This 2A, 600VAC fuse features a ferrule body, time-delay characteristics for inrush tolerance, and a high interrupting rating for reliable circuit protection. It is UL Listed and CSA Certified, making it suitable for a wide range of industrial and commercial uses where robust overcurrent protection is required.
-
Key Specifications
- Part Number: JDL2
- Manufacturer: Edison Fuses
- Category: Fuse
- Amperage: 2A
- Voltage: 600VAC
- Poles: 1
- Mounting Type: Ferrule
- Interrupt Rating: 200,000A (200kA)
- Series/Frame: JDL
- Trip Unit: Time-delay

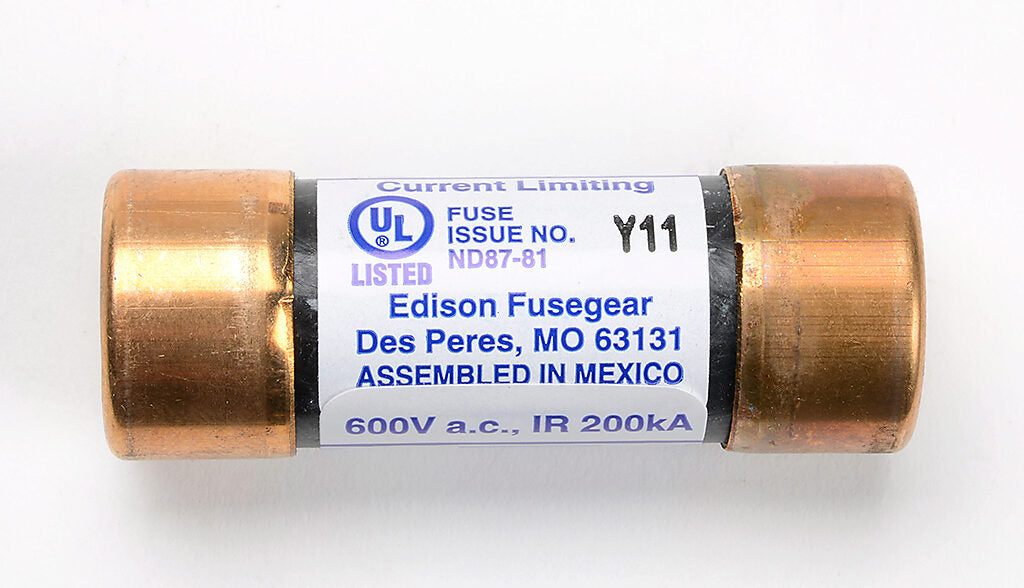

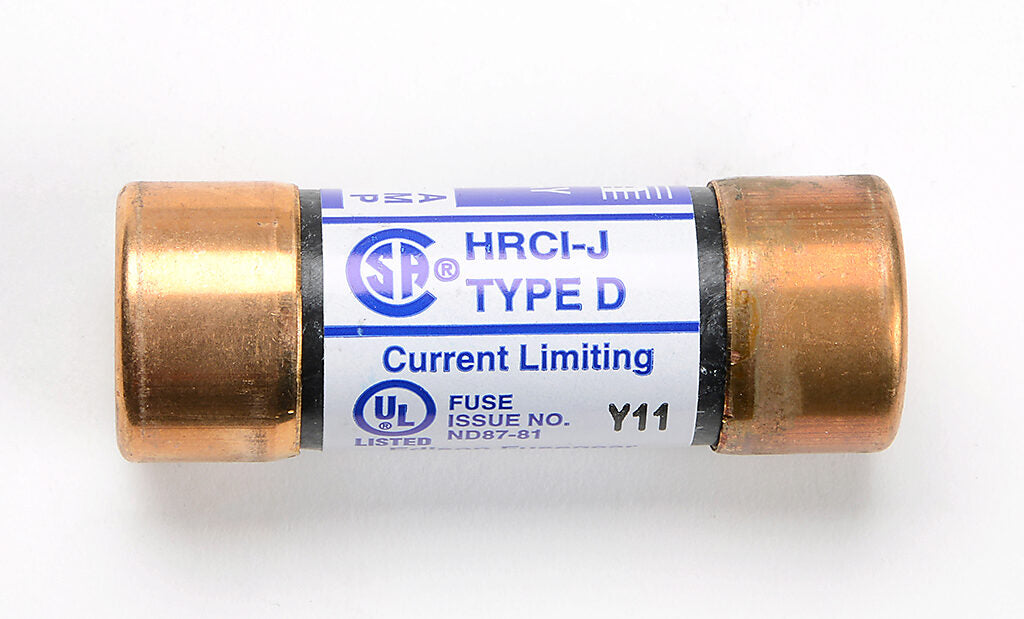

- Certifications: UL Listed (File E162363), CSA Certified (C22.2 No. 248.8)
- Body Size: 13/16" x 2-1/4" (20.6mm x 57.2mm)
- Application: Feeder/branch protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL2
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782634808633
- GTIN : 00782634808633
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
