Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL175

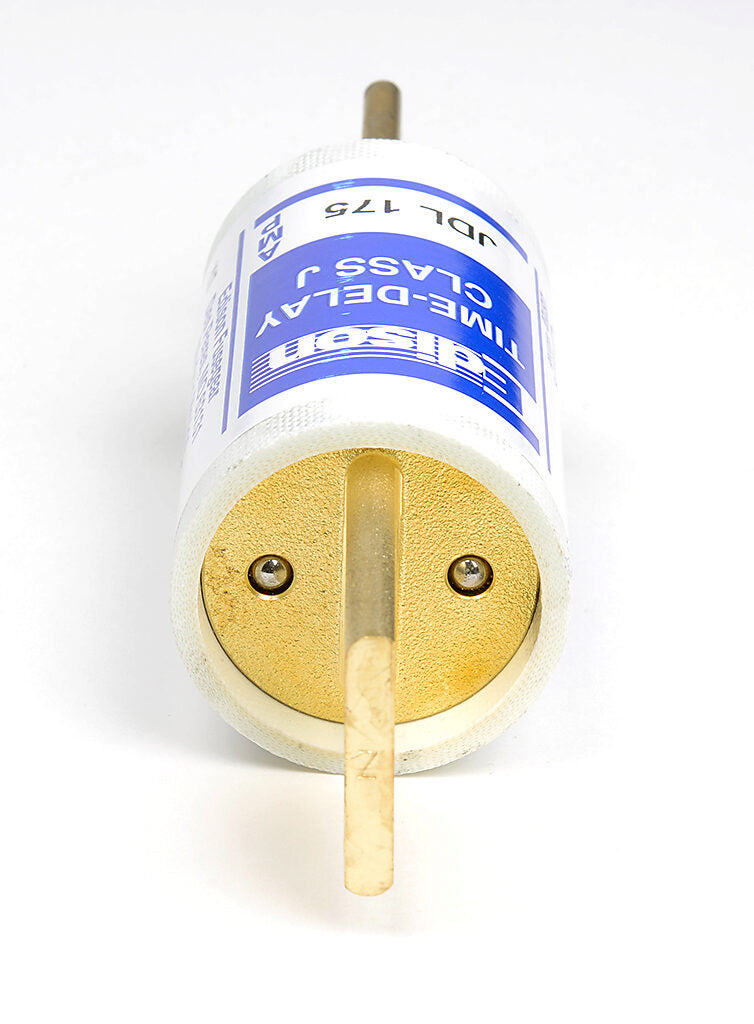

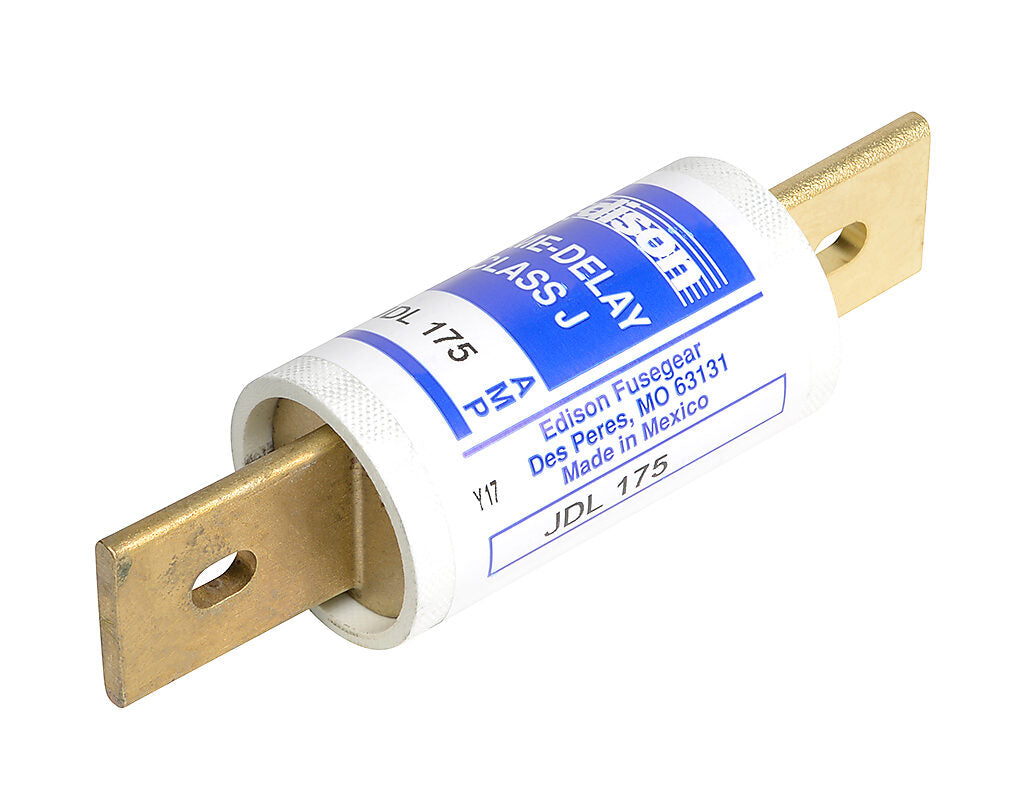

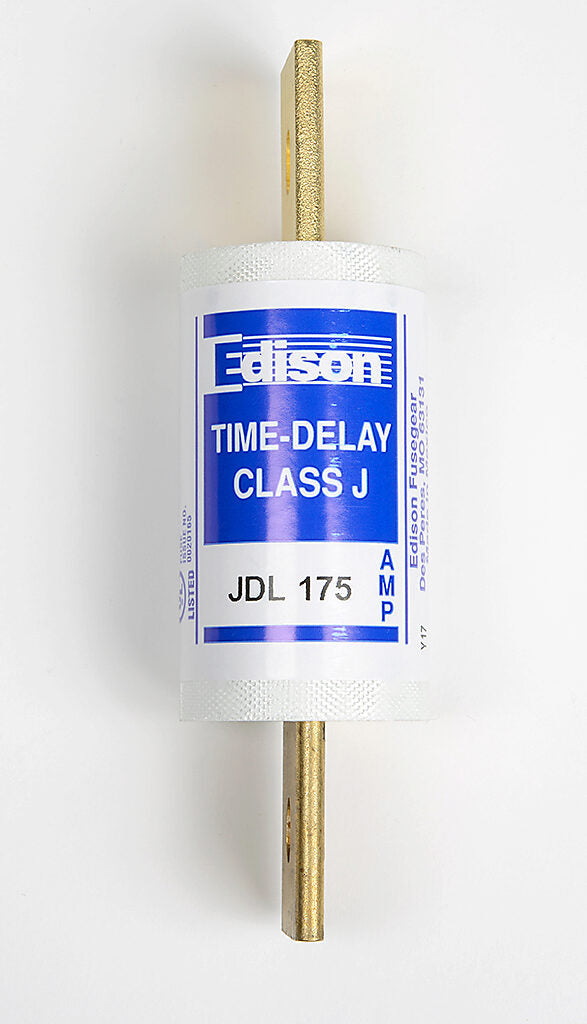

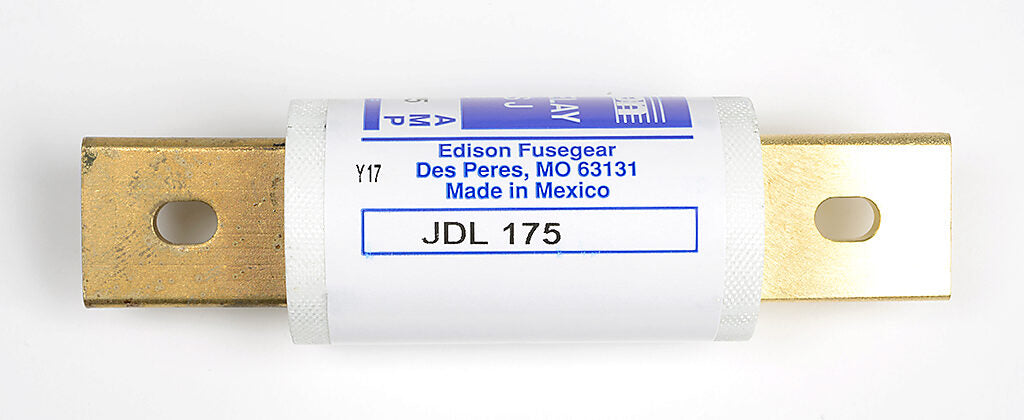

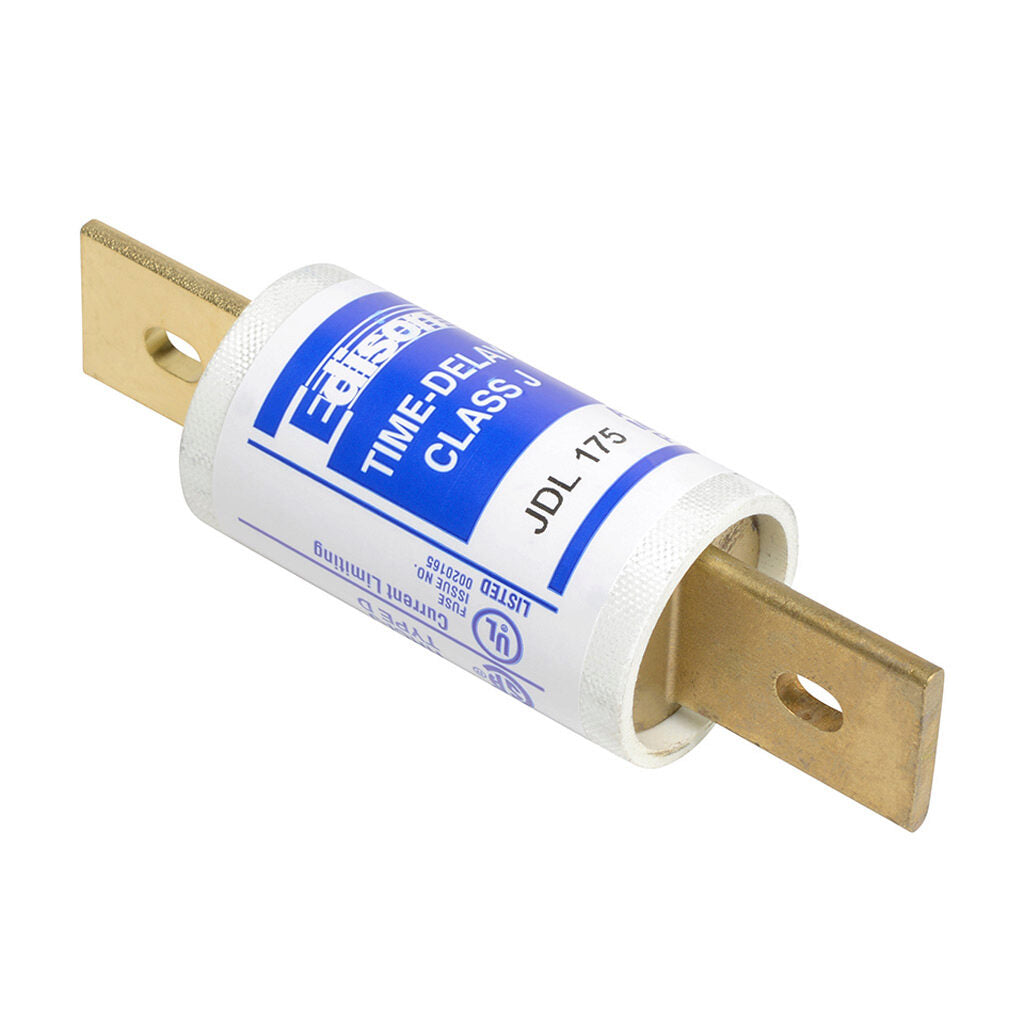

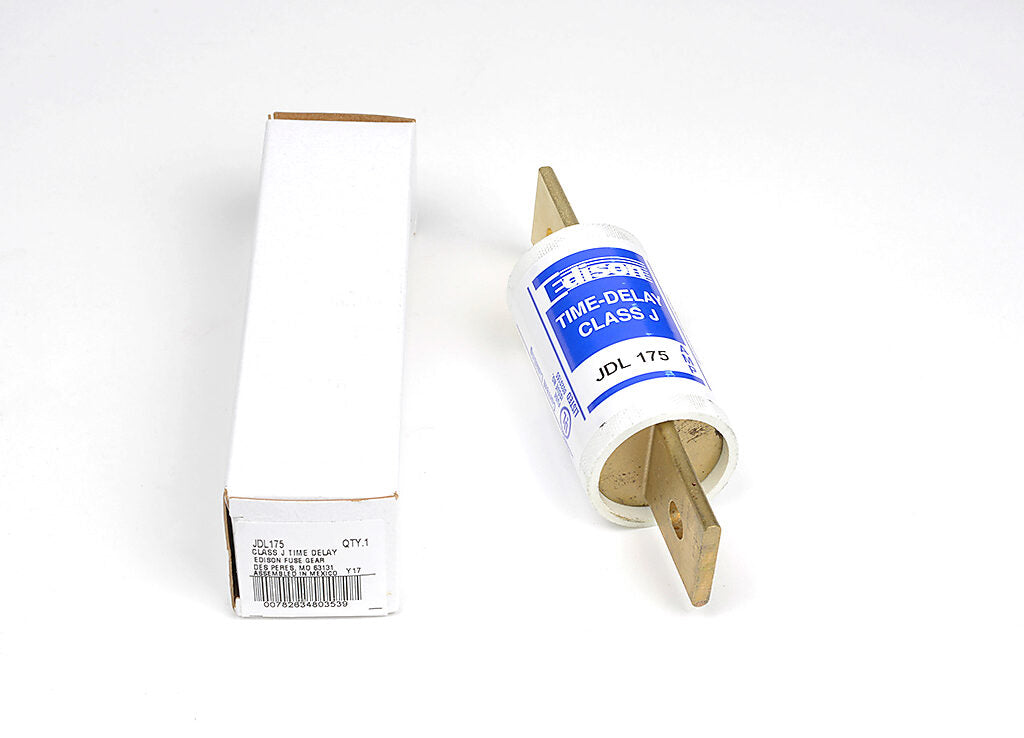

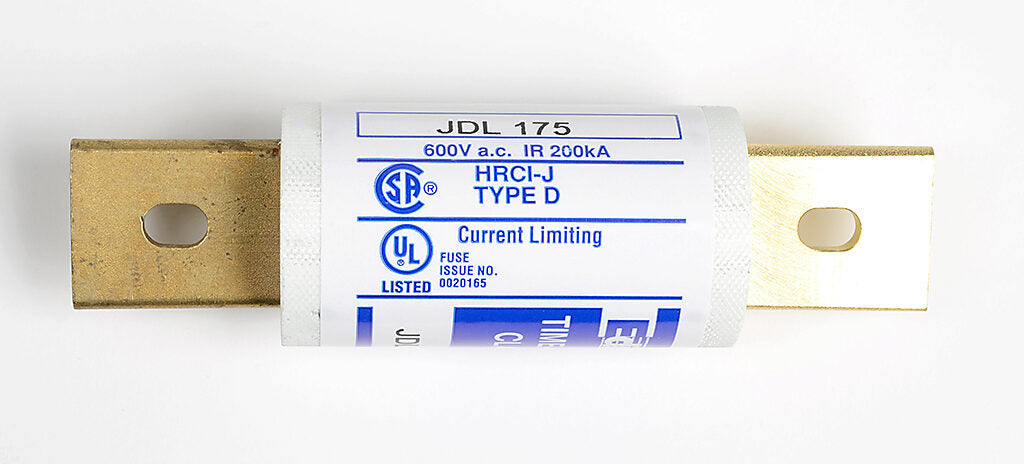

JDL175 is a 175 amp, 600 volt Class J time-delay current-limiting fuse from Edison Fuses designed for reliable overcurrent protection.This fuse features a non-indicating, dual-element design suitable for feeder and branch circuit protection. It has a 200 kA interrupt rating at 600 VAC, bolt-in mounting, and complies with UL and CSA certifications. The fuse is CE marked and RoHS compliant, ensuring safety and environmental standards.
- Key Specifications
- Amperage Rating: 175 A
- Voltage Rating: 600 V AC
- Class: J
- Fuse Type: Time-Delay, Current-Limiting
- Interrupt Rating: 200 kAIC
- Mounting Type: Bolt-In
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Dimensions: 5.75 in length, 1.63 in diameter
- Weight: 4.25 lb
- Part Number: JDL175
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 175
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
- Velocity : D
- UPC : 78263480353
- GTIN : 00782634803539
- Dimensions : 5.75 in x 1.63 in x 1.63 in (Length/Depth x Height x Width)
- Weight : 4.25
