Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

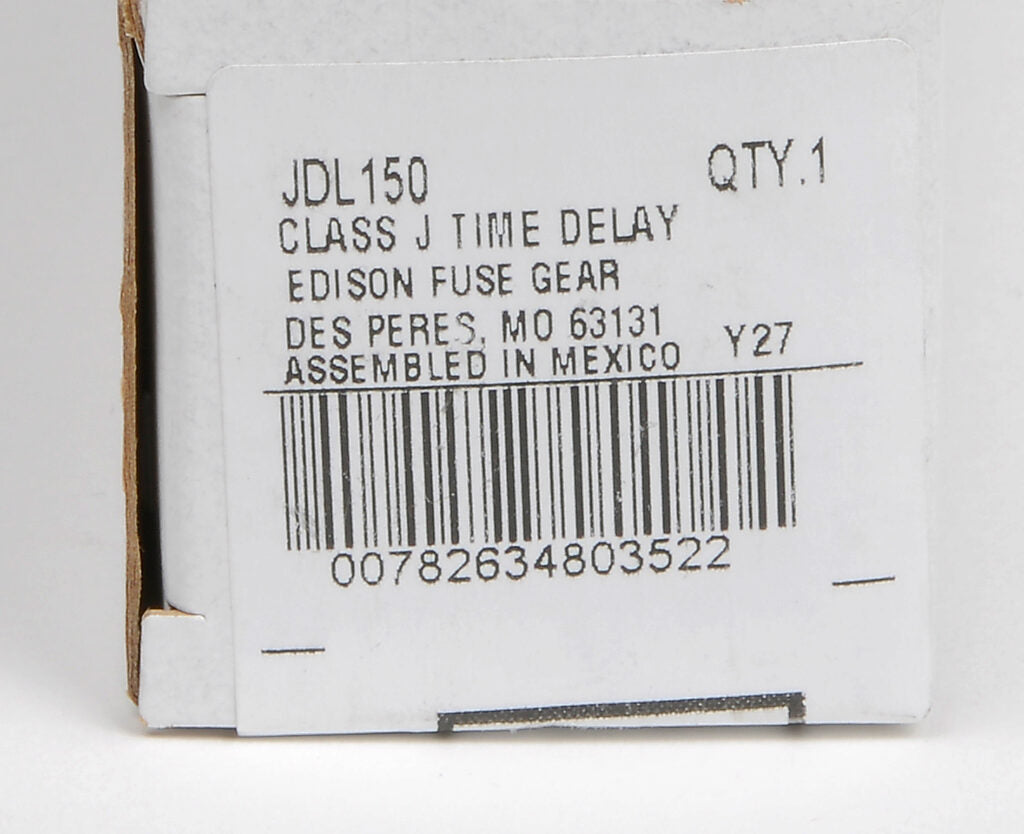

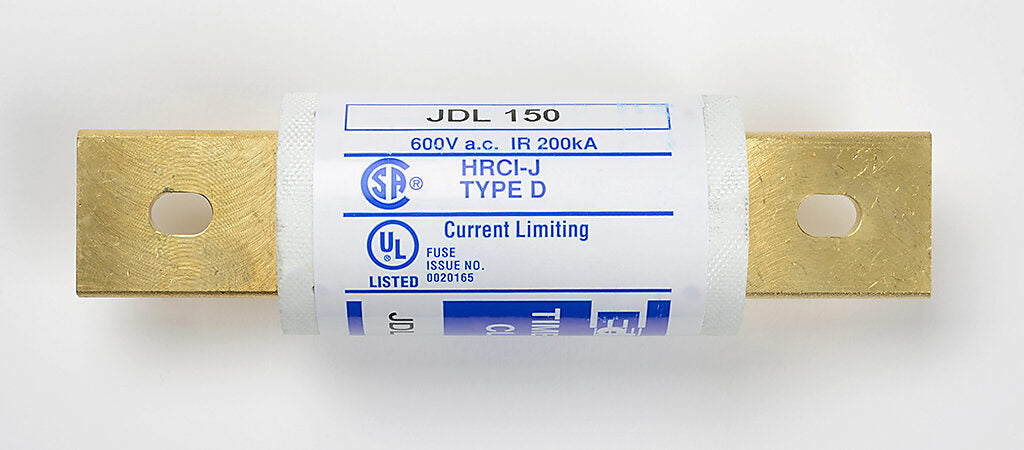

JDL150

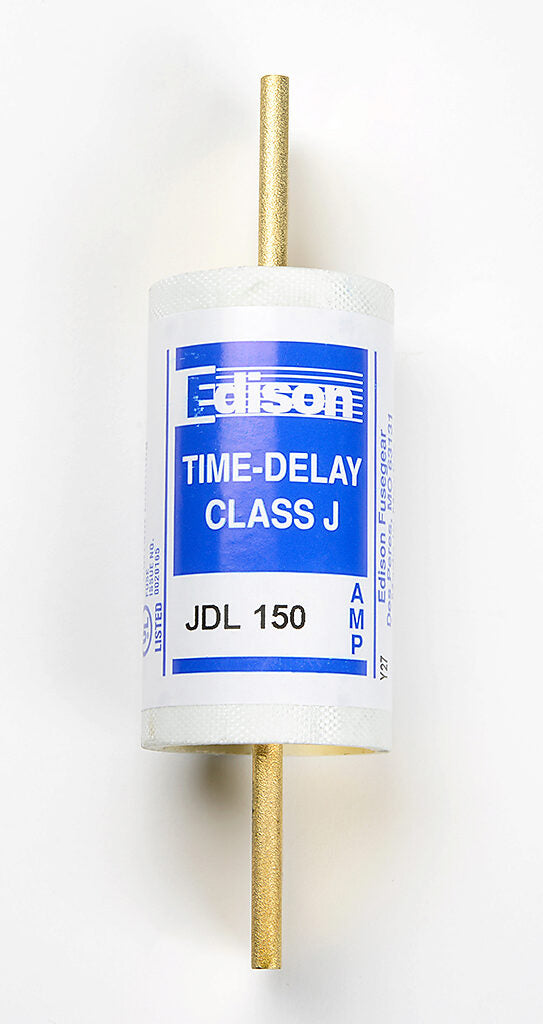

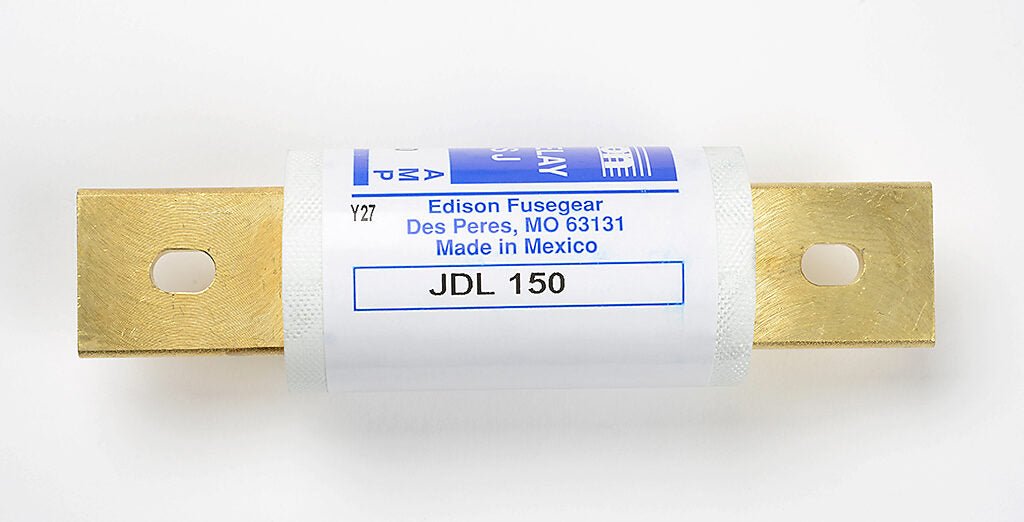

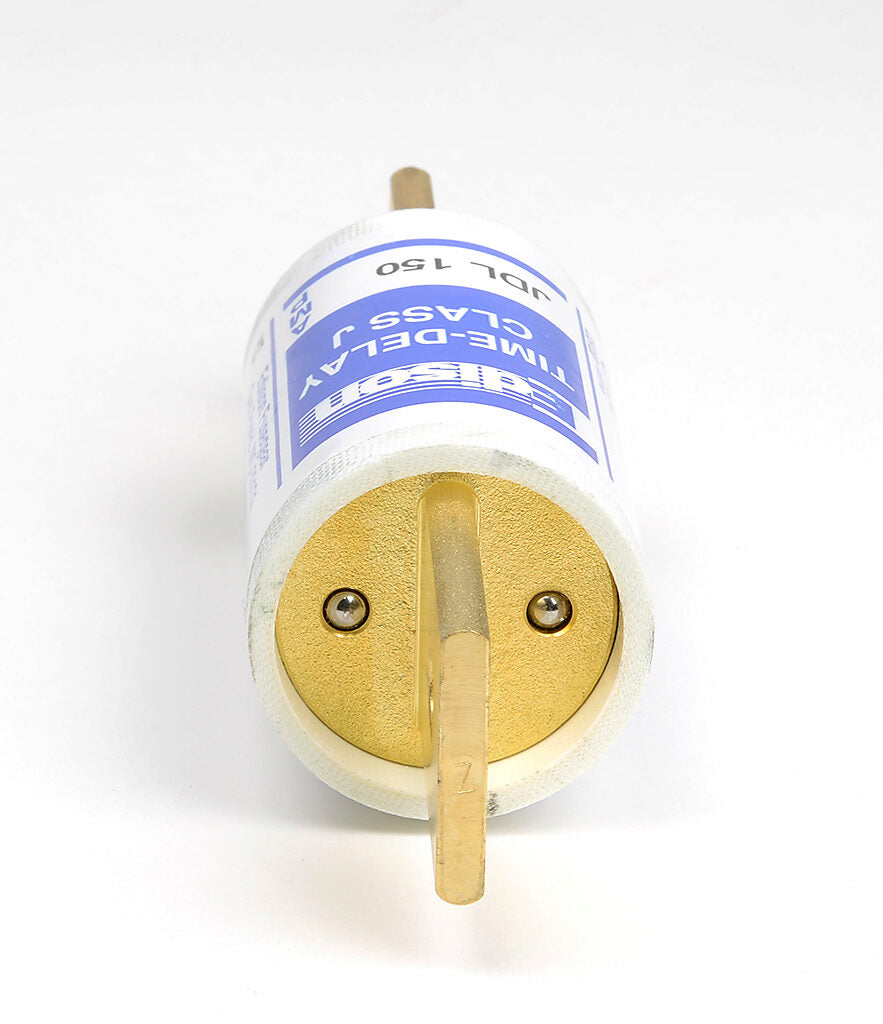

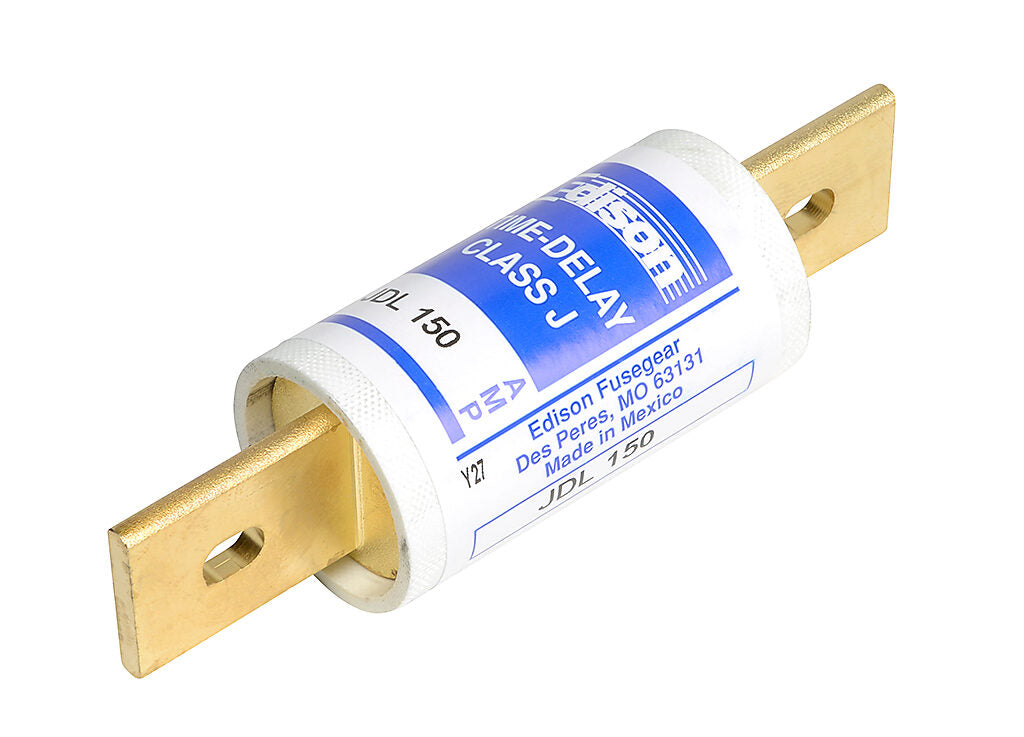

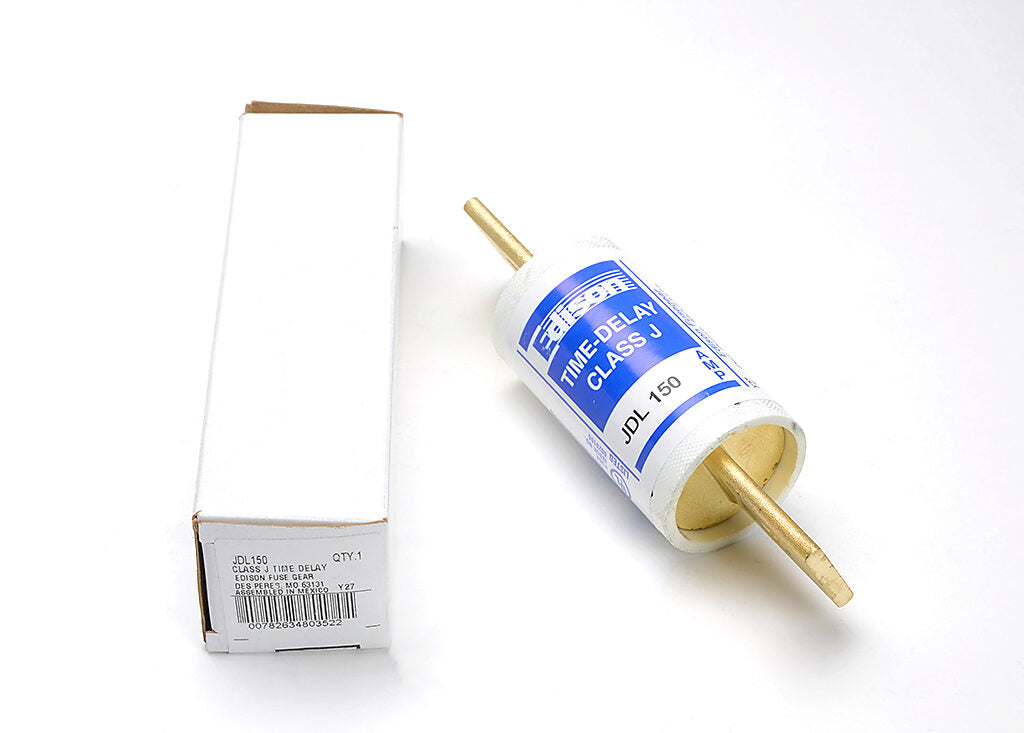

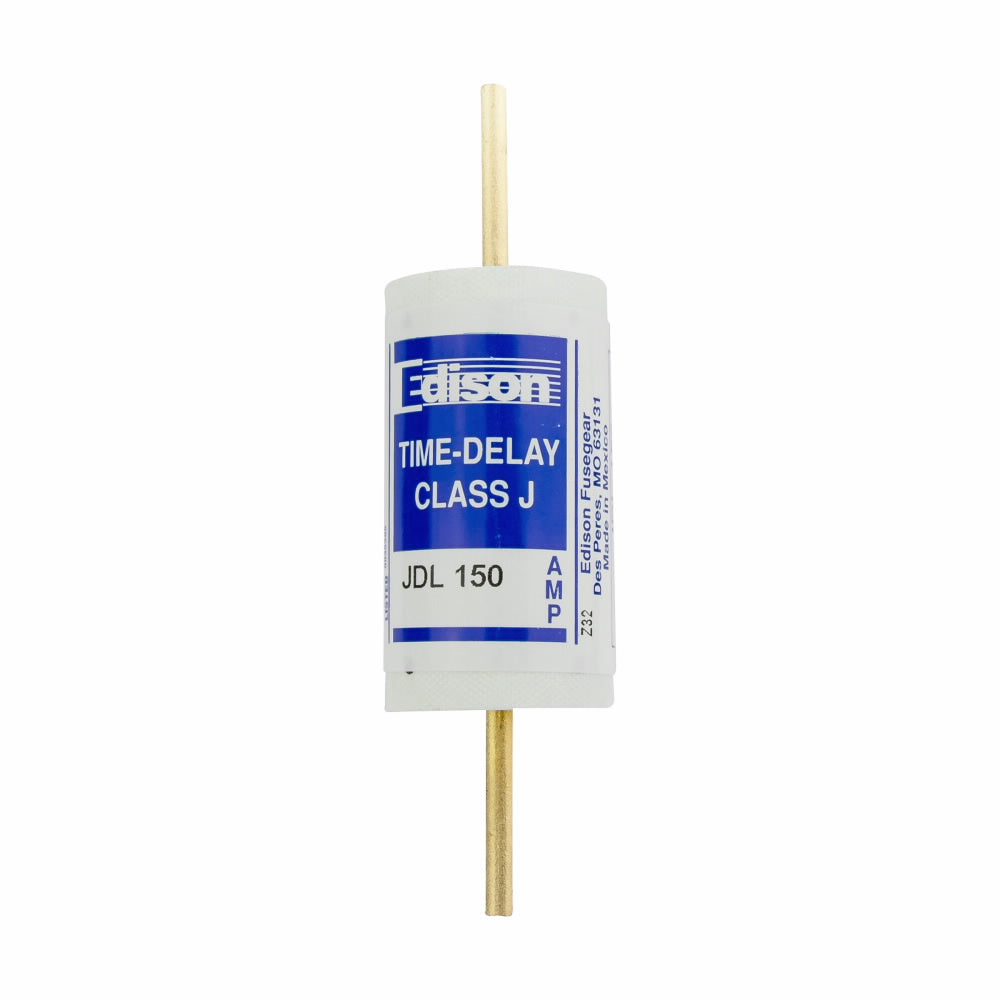

JDL150 is a Class J dual-element time-delay fuse designed for reliable circuit protection in industrial and commercial applications.This Edison Fuses JDL150 provides true dual-element construction with a minimum 10-second time-delay at 500% overload, ensuring protection against temporary surges while maintaining high interrupting capacity. The fuse features a non-indicating design, knife blade terminals, and is suitable for feeder and branch circuit protection.
- Amperage Rating: 150A
- Voltage Rating: 600V AC
- Interrupt Rating: 200kAIC
- Series/Frame: Class J
- Mounting Type: Knife Blade
- Number of Elements: Dual
- Fuse Indicator: Non-indicating
- Compliance: UL, CSA C22.2, CE, RoHS
- Physical Size: 5.75" L x 1.63" D
- Application: Feeder/branch protection
- Special Features: Time-delay, current-limiting
- Quantity: 5 per pack
Specifications
- Part Number: JDL150
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 150
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 78263480352
- GTIN : 00782634803522
- Dimensions : 5.75 in x 1.63 in x 1.63 in (Length/Depth x Height x Width)
- Weight : 1
