Description
JDL15

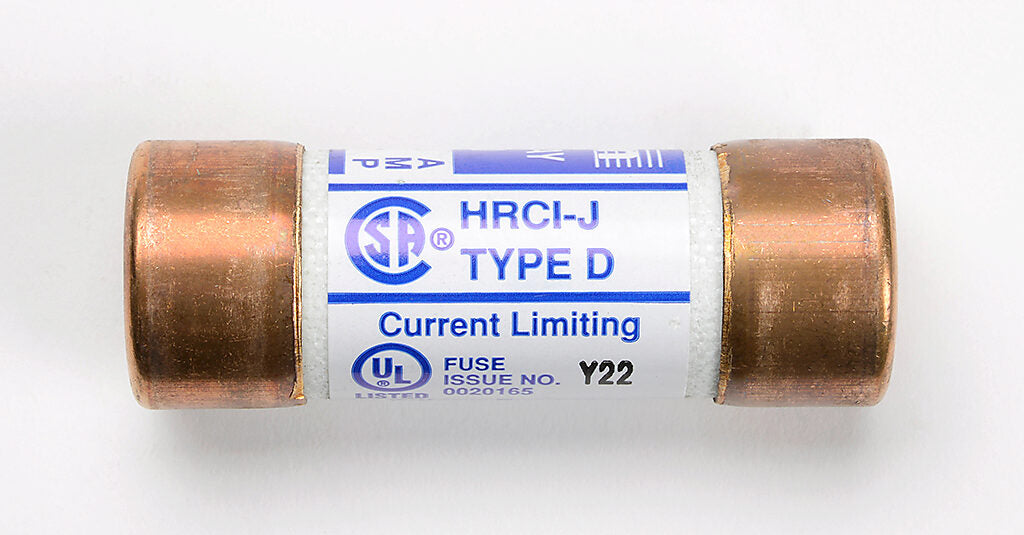

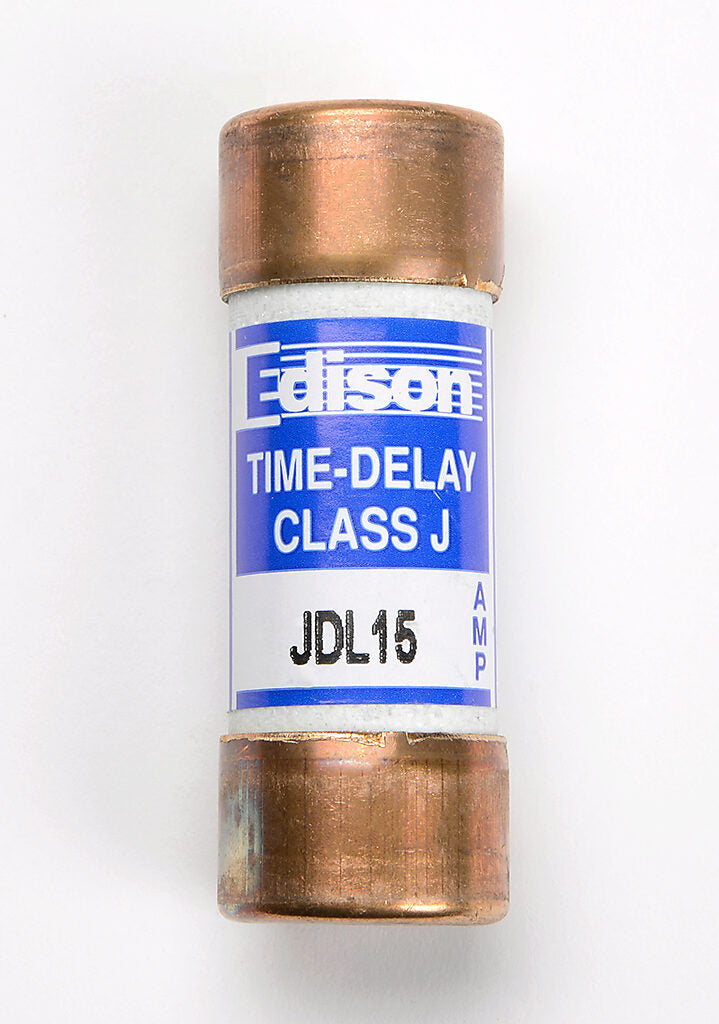

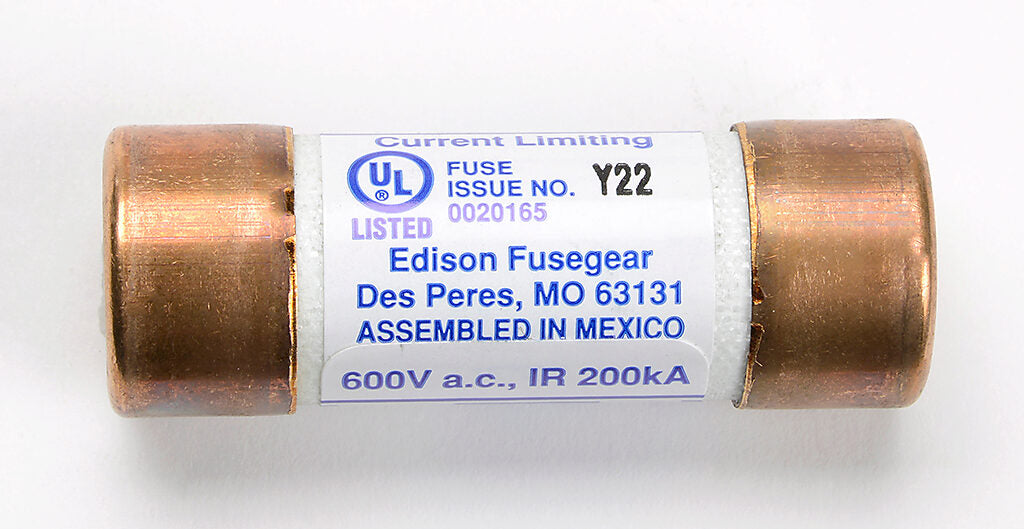

JDL15 is a 15 Amp, 600 Volt Class J time delay fuse from Edison Fuses designed for reliable circuit protection.This fuse features a dual-element, time-delay design that provides a minimum 10-second delay at 500% overload, reducing nuisance openings from temporary overloads. It offers high interrupting rating up to 200kA symmetrical and complies with UL and CSA C22.2 certifications. The fuse is 2.25 inches long with a 0.81-inch diameter, suitable for feeder and branch circuit protection in industrial and commercial applications.
- Key Specifications
- Amperage: 15 Amp
- Voltage Rating: 600 Volts AC
- Fuse Type: Class J, Time Delay
- Interrupt Rating: 200kA Symmetrical
- Dimensions: 2.25 in length, 0.81 in diameter
- Mounting Type: Ferrule
- Certifications: UL Listed, CSA C22.2 Approved
- Series: JDL
- Dual-element for time delay and current limiting
- Application: Feeder and branch circuit protection
- Part Number: JDL15
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 15
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
- UPC : 78263480337
- GTIN : 00782634803379
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
