Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

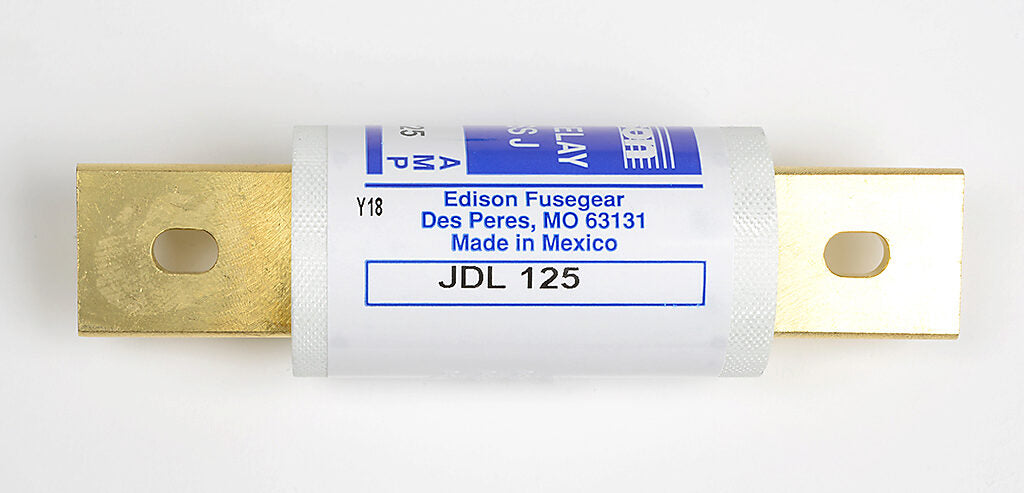

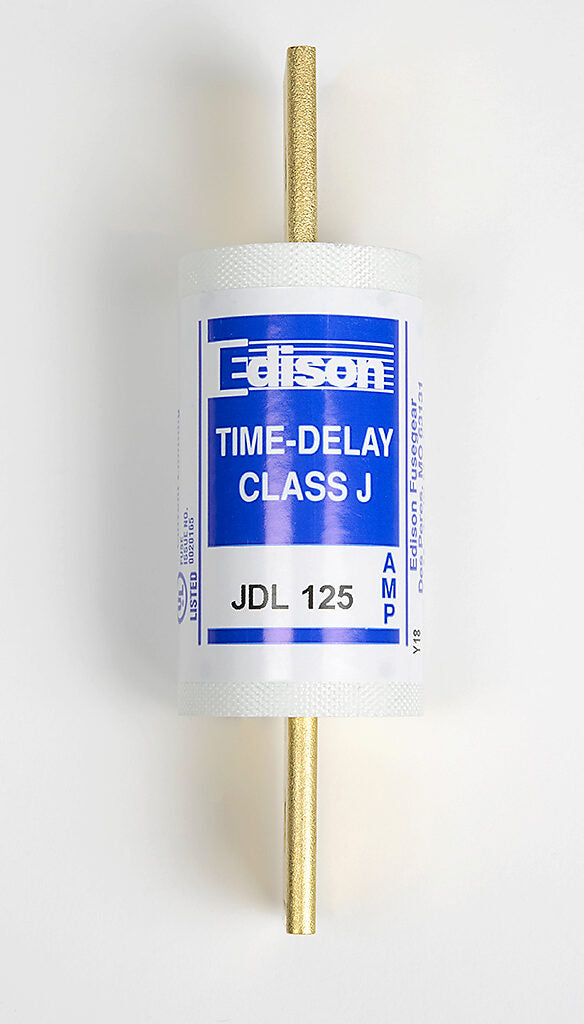

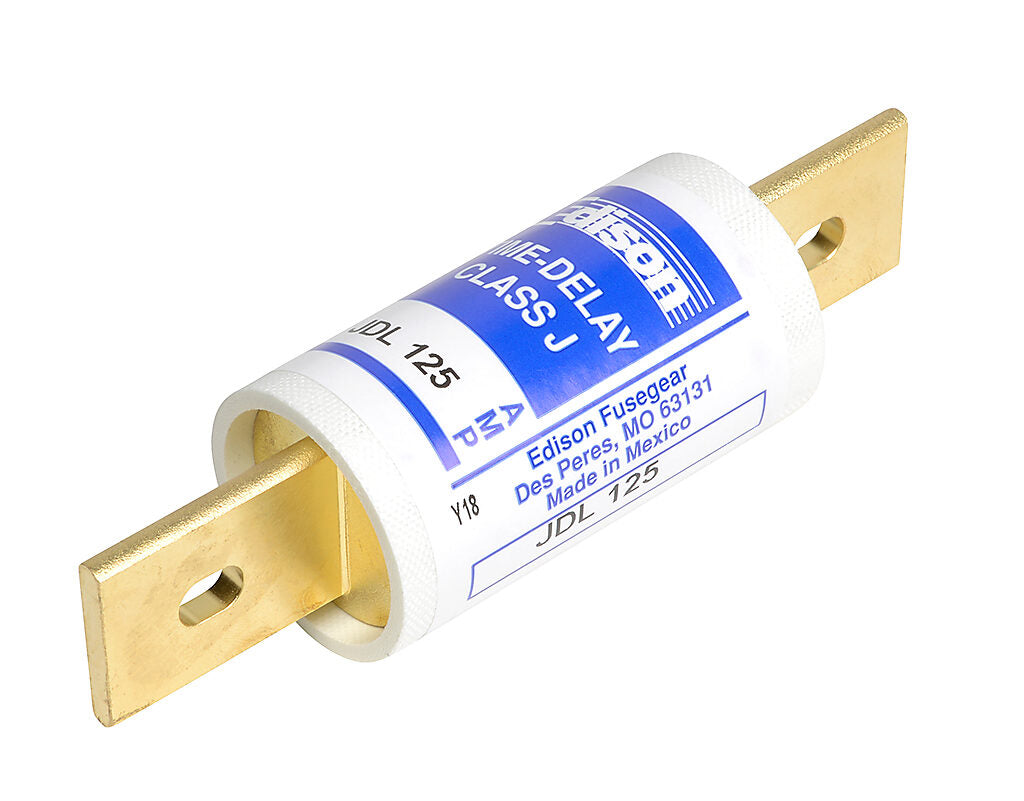

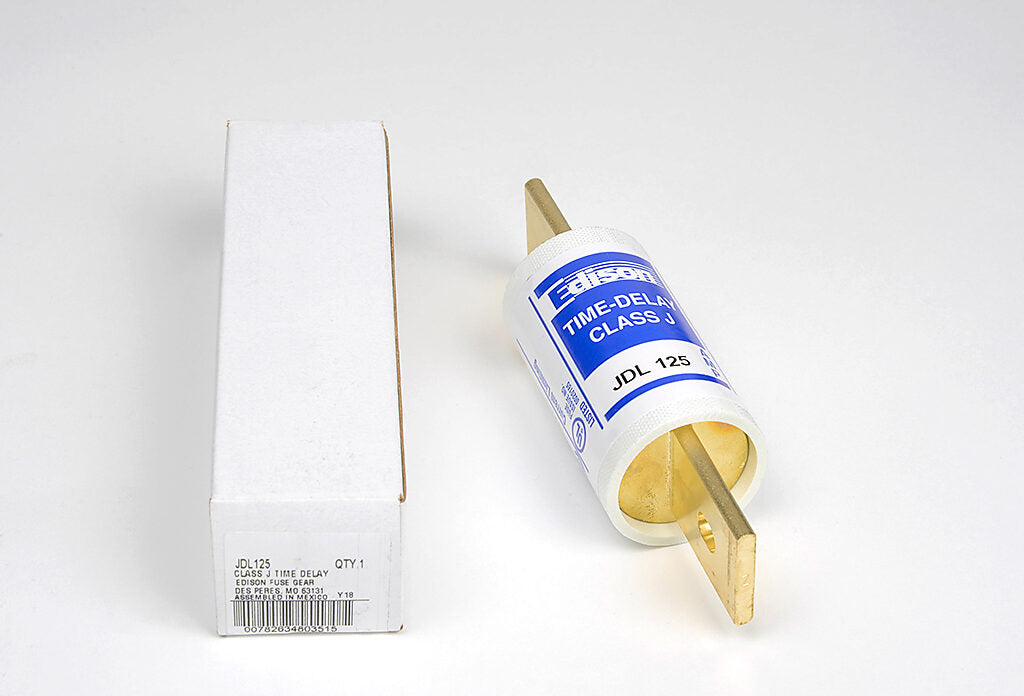

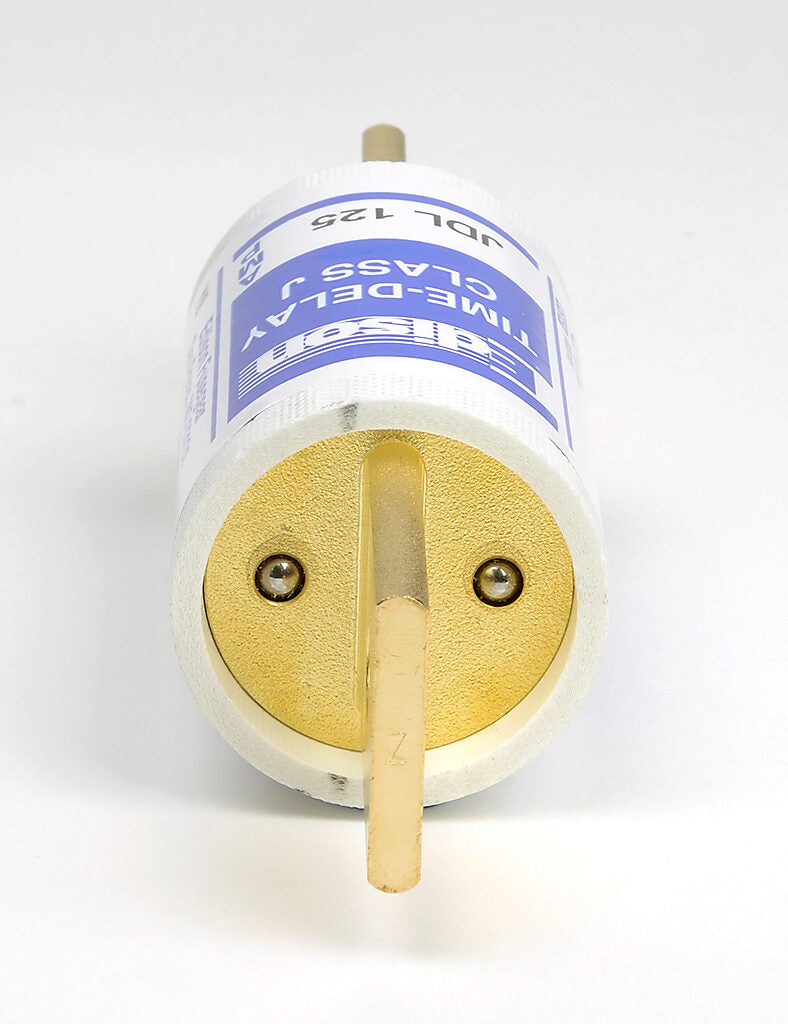

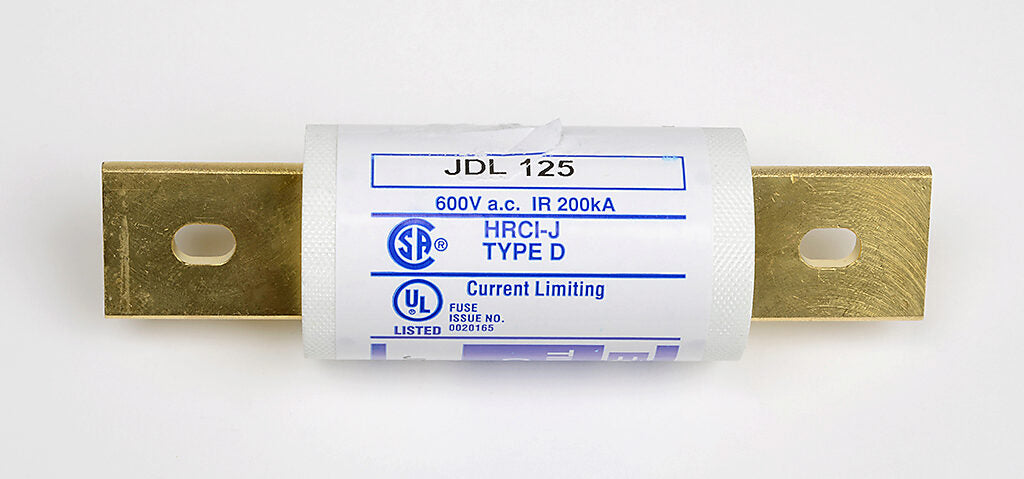

JDL125
JDL125 is a Class J, 125A, 600VAC time-delay current-limiting fuse designed for feeder and branch circuit protection applications. This Edison Fuses JDL125 features a knife blade mounting type and dual-element construction for reliable performance in industrial and commercial power distribution systems. The fuse provides true time-delay characteristics with a minimum 10-second delay at 500% overload, ensuring selective coordination and protection against short circuits and overloads.
- Part Number: JDL125
- Manufacturer: Edison Fuses
- Series: JDL
- Amperage: 125A
- Voltage: 600VAC
- Mounting Type: Knife Blade
- Interrupt Rating: 200kAIC
- Time-Delay: Yes
- Current-Limiting: Yes
- Class: J
- Length: 5.75 inches
- Diameter: 1.63 inches
- Certifications: UL, CSA C22.2
Specifications
- Part Number: JDL125
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 125
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data

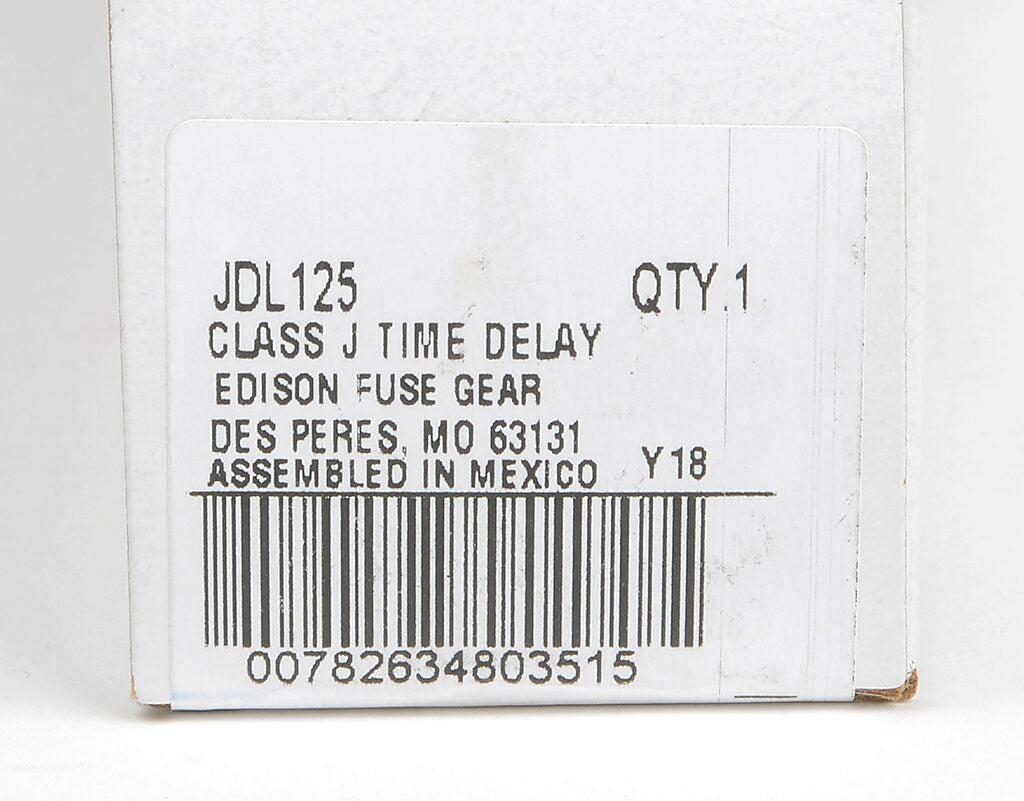

- UPC : 782634803515
- GTIN : 00782634803515
- Dimensions : 5.75 in x 1.63 in x 1.63 in (Length/Depth x Height x Width)
- Weight : 4.25
