Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

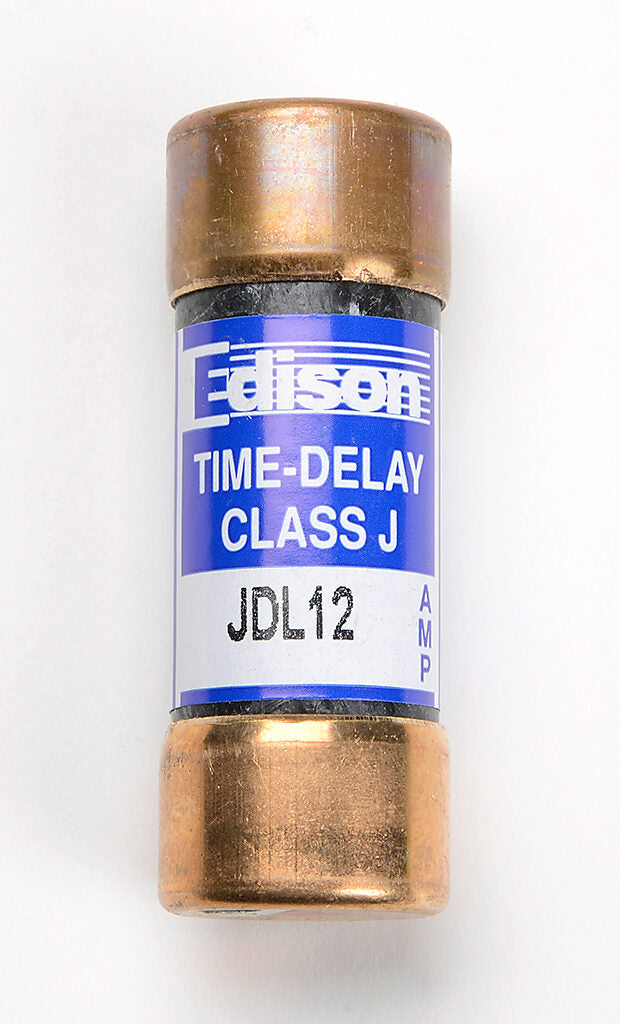

JDL12
JDL12 is a 600V 12A Class J time-delay fuse designed for reliable low-voltage circuit protection in industrial and commercial applications. This Edison Fuses model features a dual-element construction for enhanced performance and durability. The JDL12 fuse is engineered for use in Class J fuse blocks and holders, offering a robust solution for overcurrent protection. Its time-delay characteristic allows for temporary current surges without nuisance tripping, making it ideal for motor and transformer circuits. The fuse is self-certified for high interrupting capacity and meets UL and CSA standards for safety and reliability.
- Amperage Rating: 12A
- Voltage Rating: 600V AC
- Fuse Class: Class J
- Interrupting Rating: 300kA RMS Symmetrical
- Body Type: Ferrule
- Series: JDL
- Response Time: Time Delay

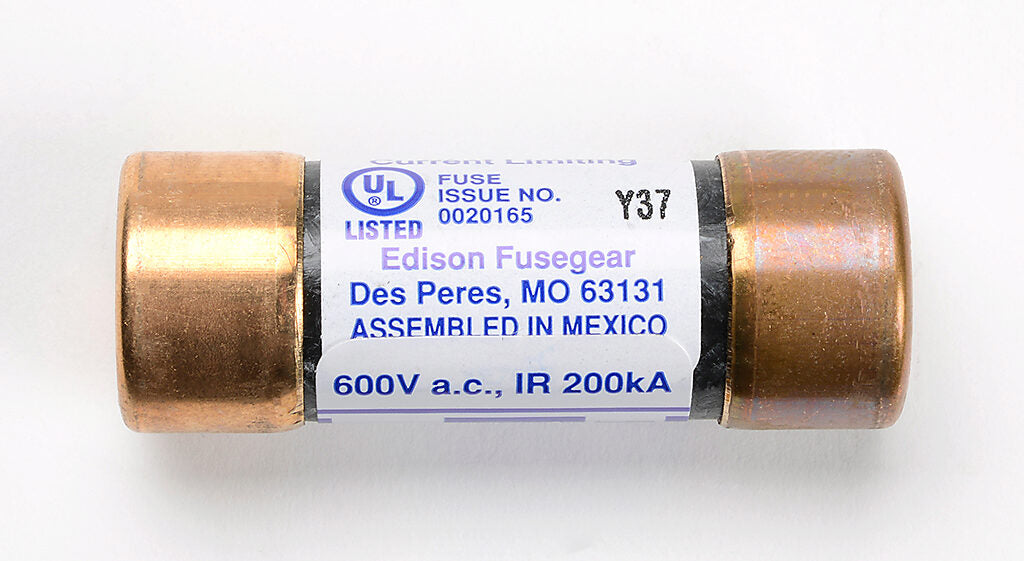

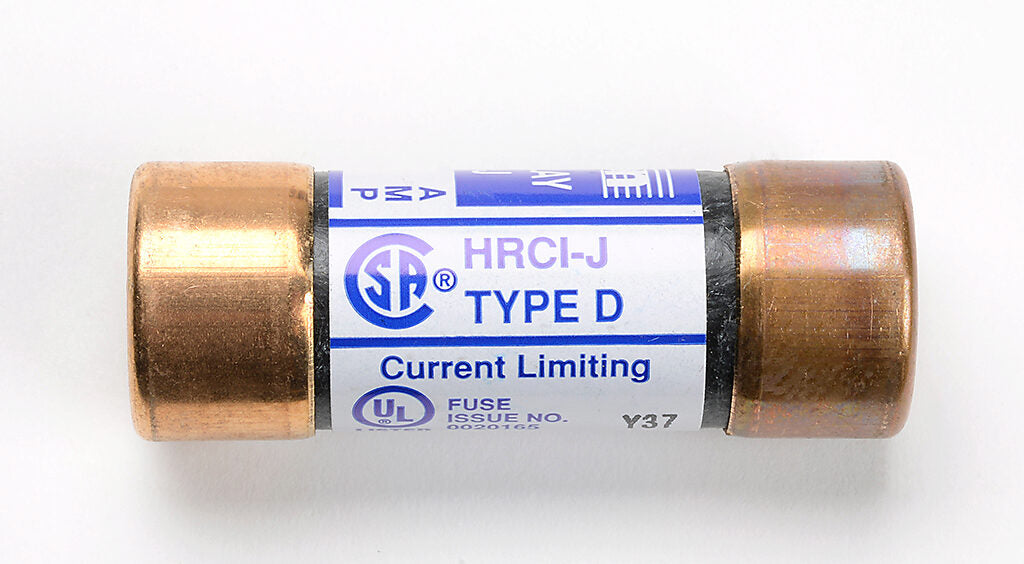

- Agency Approvals: UL Listed, CSA Certified
- Diameter: 0.81 inches
- Length: 2.25 inches
- Mounting Type: 1 Barrel
- Application: Low Voltage Circuit Protection
Specifications
- Part Number: JDL12
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 12
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 782634630159
- GTIN : 00782634630159
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
