Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

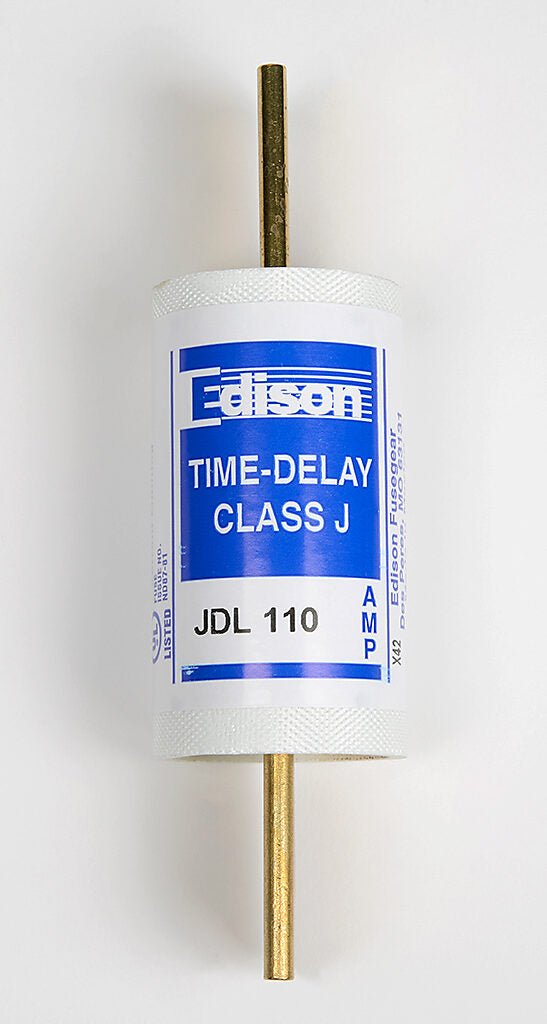

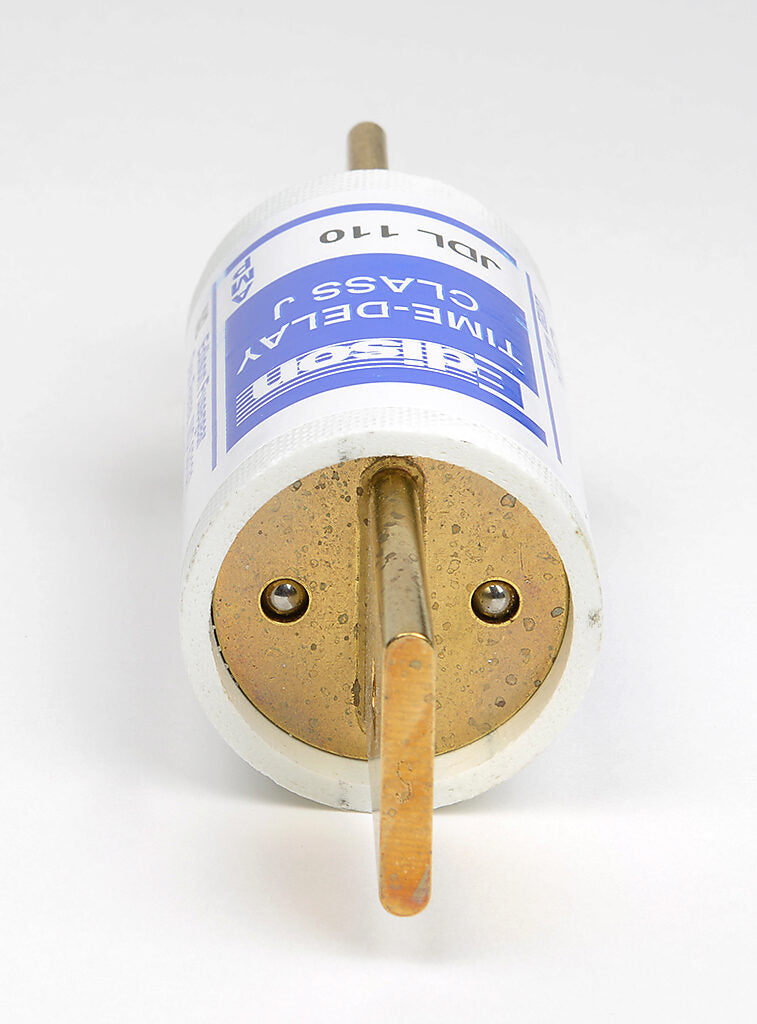

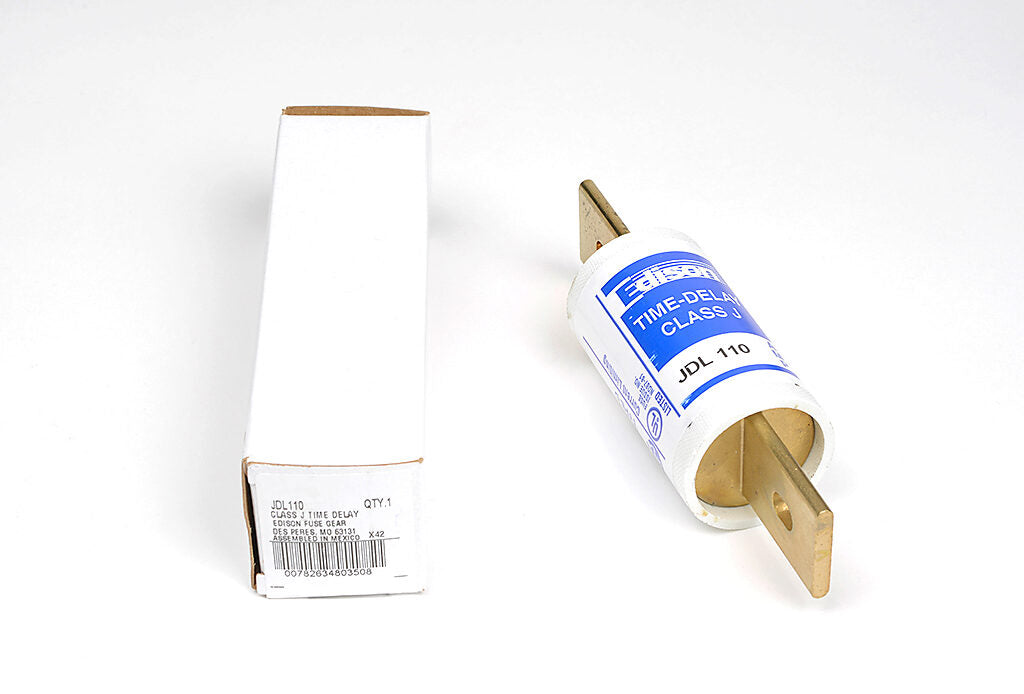

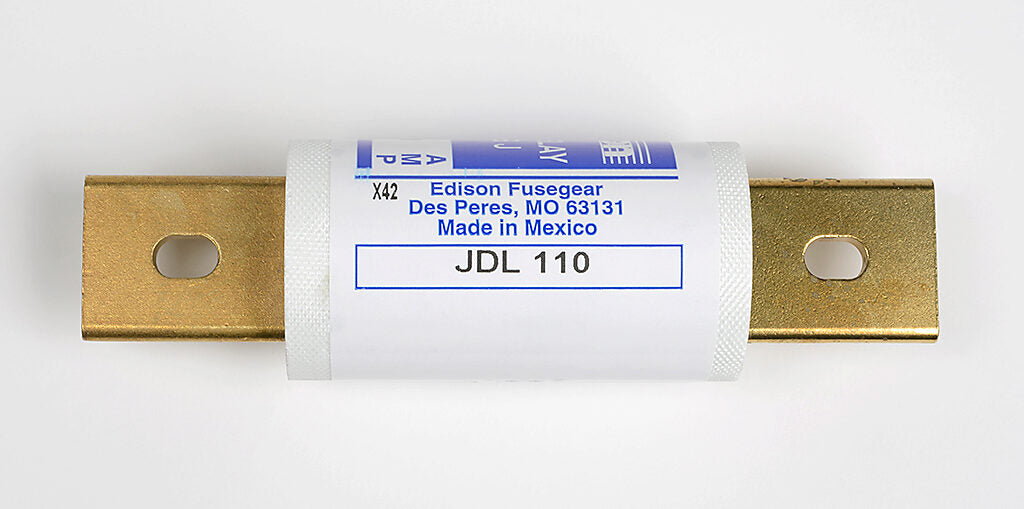

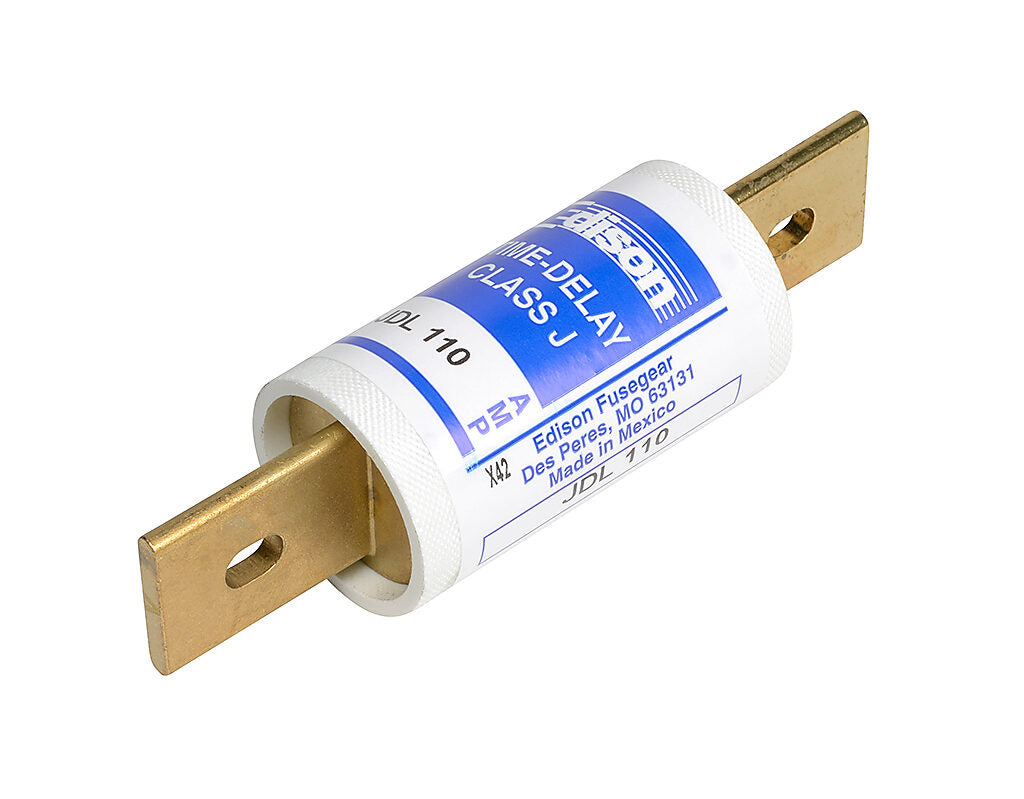

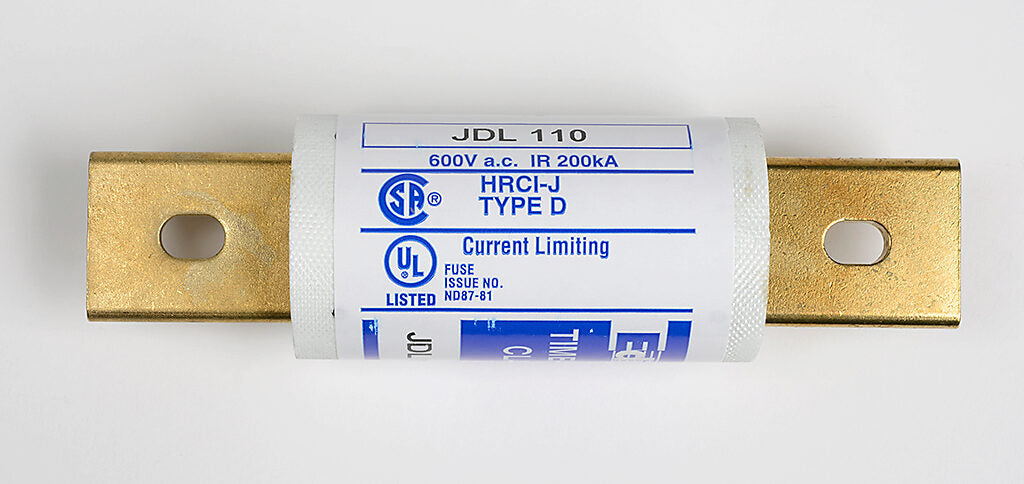

JDL110
JDL110 is a Class J time-delay current-limiting fuse rated for 110 amps and 600 volts AC, designed for reliable circuit protection.This fuse features dual-element, time-delay technology providing a minimum 10-second delay at 500% rated current, suitable for feeder and branch circuit protection. It has a high interrupt rating of 200,000 amperes (200 kAIC) at 600 VAC and a standard mounting type with a non-indicating design. The fuse complies with UL and CSA certifications and is RoHS compliant.
- Amperage Rating: 110 A
- Voltage Rating: 600 VAC
- Class: J
- Fuse Type: Dual-Element, Time-Delay
- Interrupt Rating: 200 kAIC
- Mounting Type: Standard Knife Blade
- Non-Indicating
- Certifications: UL, CSA C22.2
- RoHS Compliant
- Current Limiting
- Dimensions: Approximately 1/4" x 1-1/4" (6.3mm x 32mm)
Specifications
- Part Number: JDL110
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 110
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data

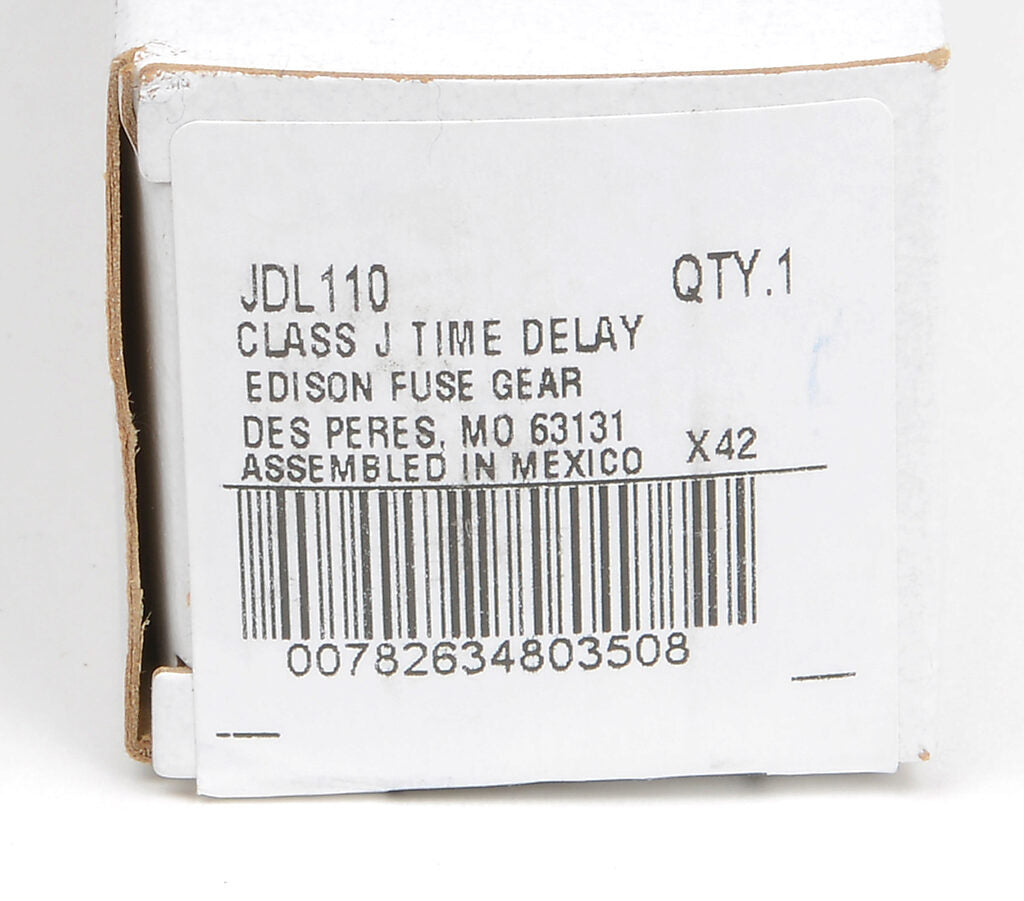

- UPC : 078263480350
- GTIN : 00782634803508
- Dimensions : 5.75 in x 1.63 in x 1.63 in (Length/Depth x Height x Width)
- Weight : 4.25
