Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL100

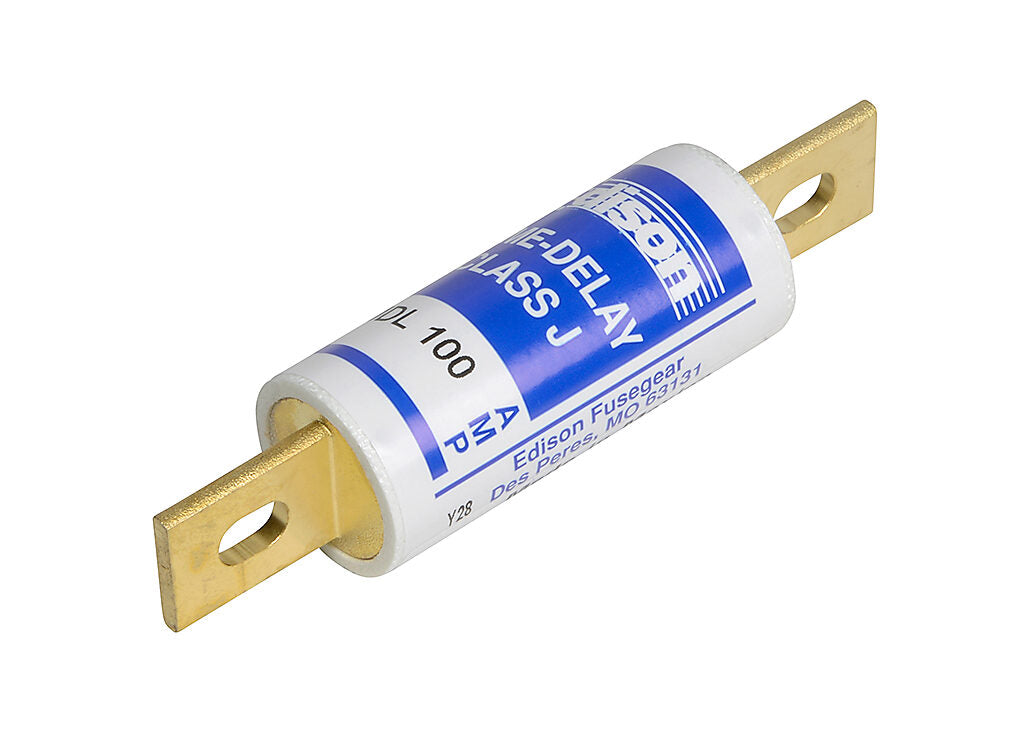

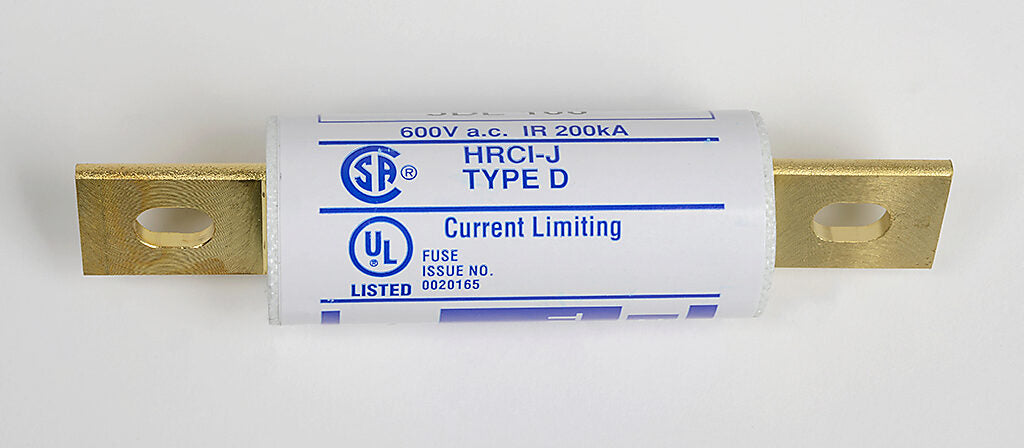

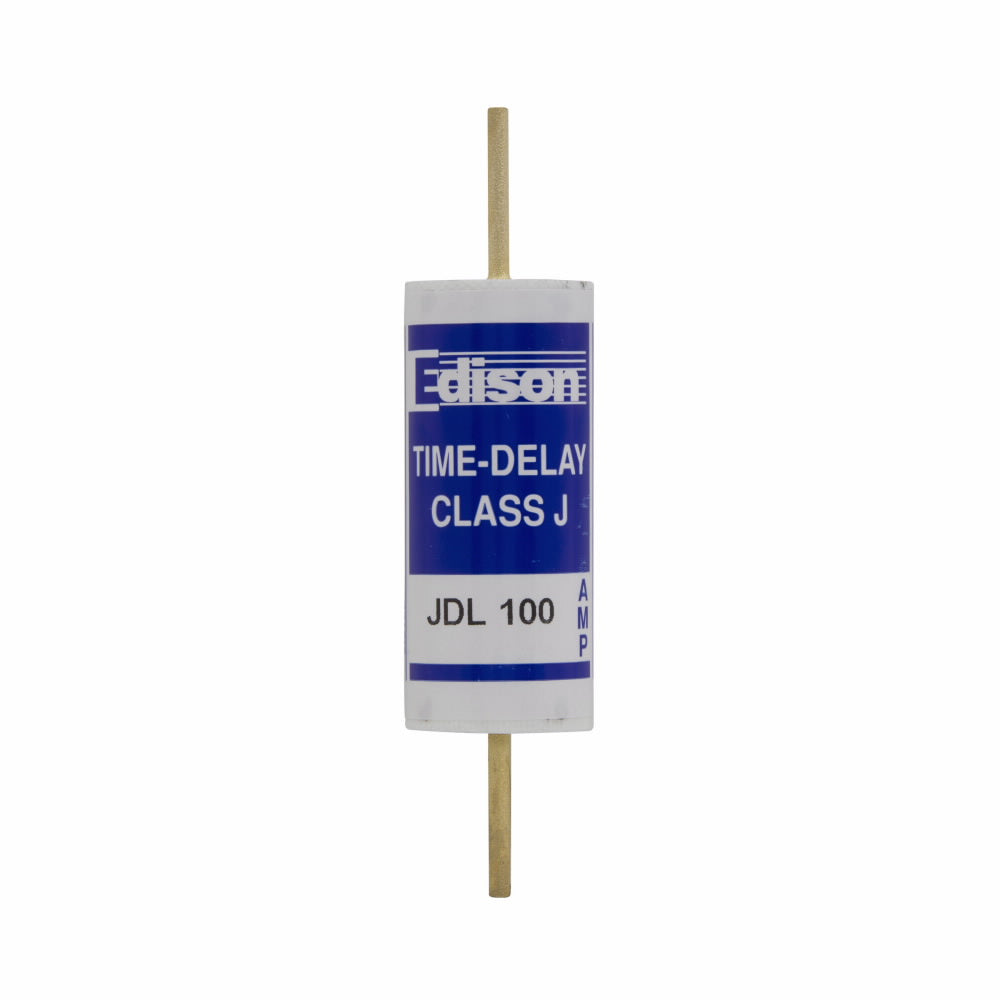

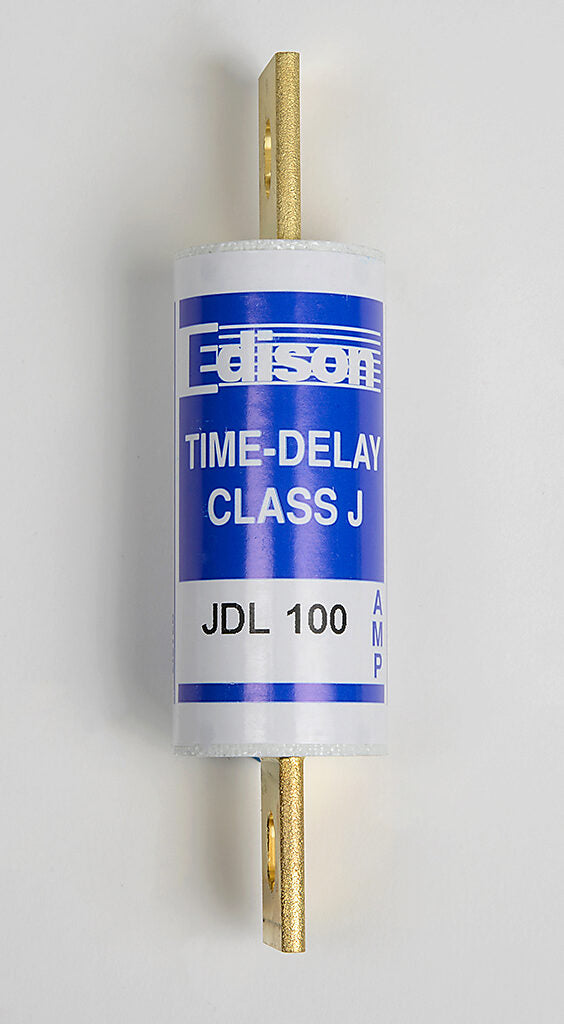

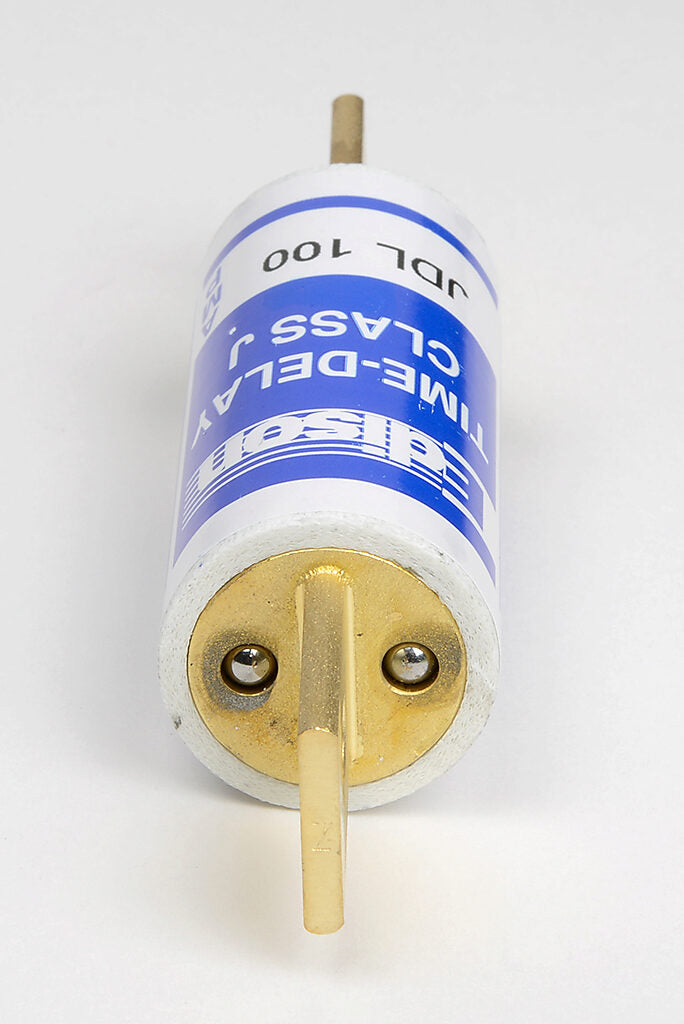

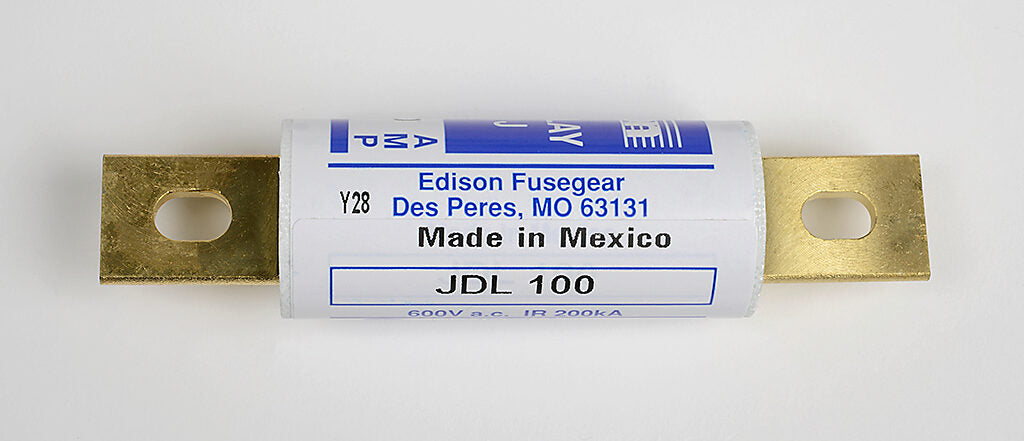

JDL100 is a 100 Amp, 600 Volt Class J time-delay fuse designed for reliable circuit protection.JDL100 features a dual-element, current-limiting design with a 200,000 amp interrupt rating, suitable for feeder and branch circuit protection. It is UL and CSA certified, with a compact size for easy installation in standard fuse holders.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 600 VAC
- Fuse Class: J
- Time-Delay Type: Dual-element
- Interrupt Rating: 200,000 AIC
- Mounting Type: Knife blade
- Certifications: UL, CSA C22.2
- Dimensions: Approximately 1.13 inch diameter, 4.63 inch length
- Application: Feeder and branch circuit protection
- RoHS Compliant
Specifications
- Part Number: JDL100
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 100
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 782634803492
- GTIN : 00782634803492
- Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
- Weight : 1.7
