Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

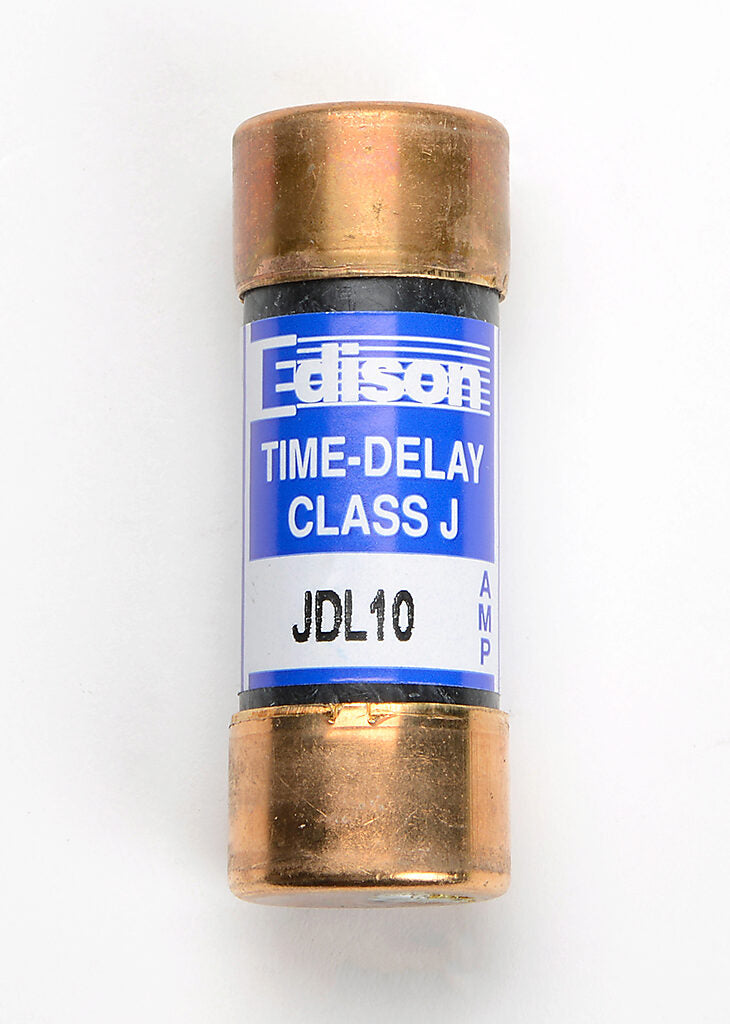

JDL10
JDL10 is a Class J, time-delay, current-limiting low voltage fuse from Edison Fuses, designed for reliable circuit protection in demanding applications.
This non-indicating, single-barrel fuse features a robust ferrule mounting style and is engineered for feeder and branch circuit protection. It offers a true dual-element design with a minimum 10-second time-delay at 500% overload, minimizing nuisance tripping during temporary overloads. The JDL10 is compact, yet delivers high interrupting capacity for enhanced safety and performance.
-
Key Specifications
- Part Number: JDL10
- Manufacturer: Edison Fuses
- Category: Fuse
- Amperage: 10A
- Voltage Rating: 600V AC
- Poles: 1
- Mounting Type: Ferrule
- Interrupt Rating: 200,000 AIC (symmetrical)
- Series/Frame: JDL
- Trip Unit: Dual-element, time-delay
- Certifications: UL, CSA C22.2
- Diameter: 0.81 inch
- Length: 2.25 inch
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL10
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 10
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 78263480336
- GTIN : 00782634803362
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
