Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

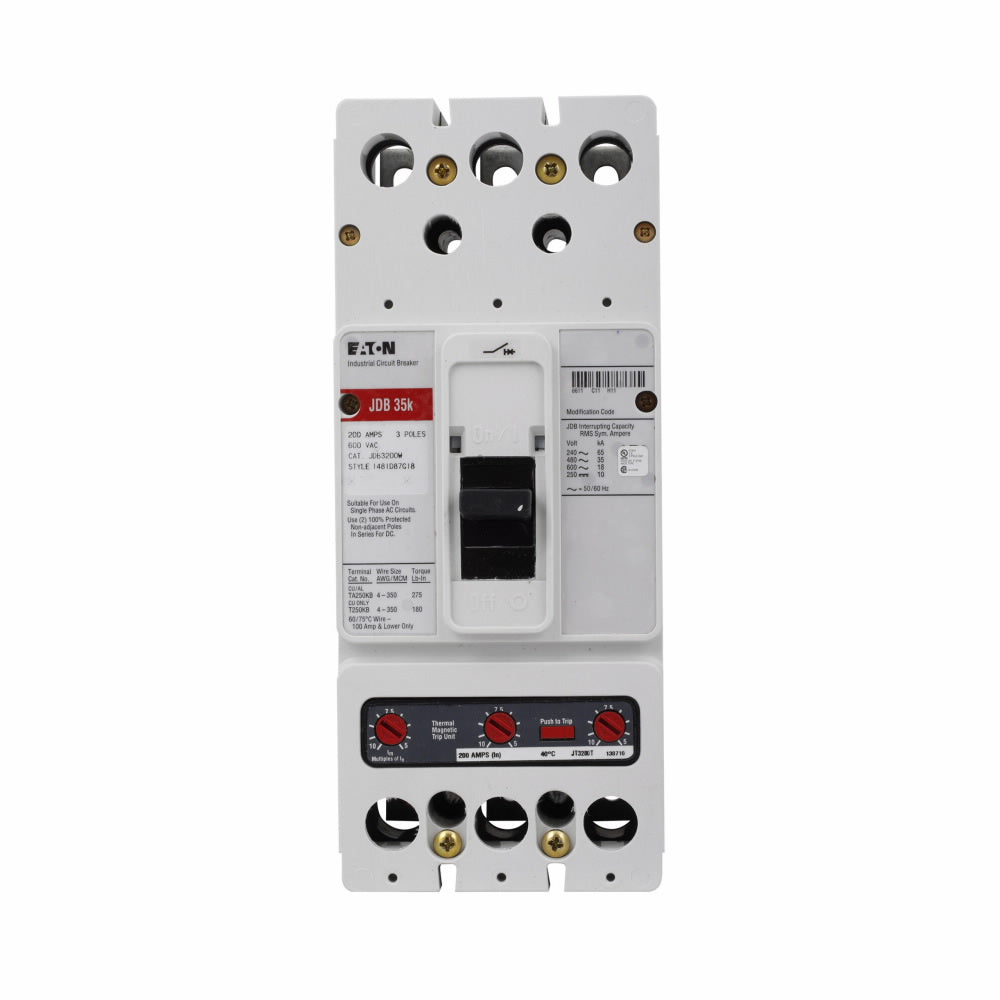

JDB3250M01
JDB3250M01 is a 250 amp, 600 volt, 3-pole molded case circuit breaker from Eaton's Series C J-Frame line designed for reliable circuit protection.JDB3250M01 features a thermal magnetic trip unit with factory sealed construction, suitable for 50/60 Hz applications. It supports both AC and DC voltages (600 Vac, 250 Vdc) and includes line and load terminals with mounting hardware. The breaker has a standard interrupt rating of 35kA at 480V and is UL listed for safety and performance.
- Key Specifications
- Amperage: 250A
- Voltage Rating: 600 Vac, 250 Vdc
- Poles: 3
- Frame/Series: J-Frame, Series C
- Trip Unit: Thermal Magnetic, Non-interchangeable
- Interrupt Rating: 35kA @ 480V
- Mounting Type: Standard with mounting hardware
- Frequency: 50/60 Hz
- UL Listed Certification
- Feed-thru capable and suitable for reverse feed
- Factory sealed construction
- Product Weight: Approximately 9.22 lb
Specifications
- Part Number: JDB3250M01
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- UPC : 786679209264
- GTIN : 00786679000000
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
