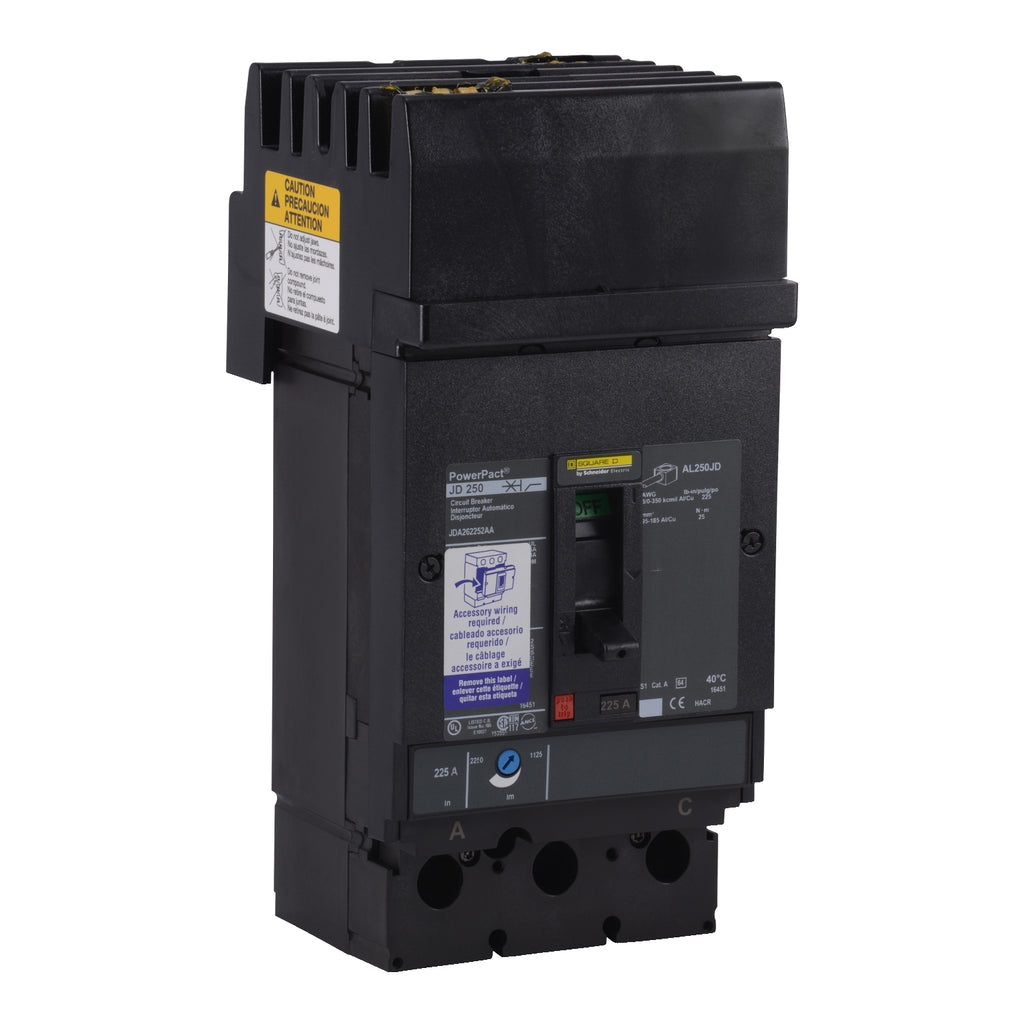

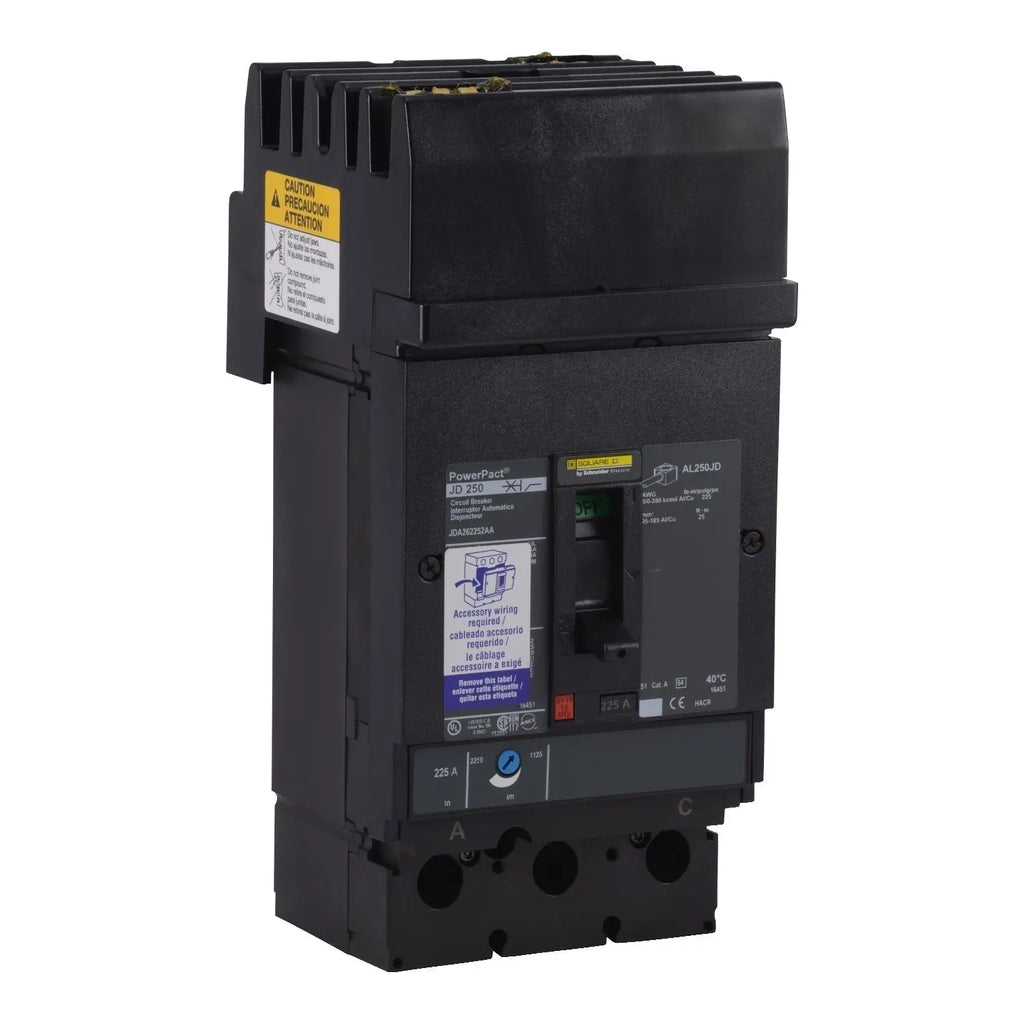

JDA36175SA - Square D 175 Amp 600V 3-Pole J Frame Thermal Magnetic Molded Case Circuit Breaker, I-Line Plug-In, 18kA Interrupt Rating, UL/CSA

JDA36175SA

JDA36175SA is a Square D 3-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 175 Amp current rating, 600V AC voltage rating, and is compatible with Square D I-Line style panelboards. It offers a high interrupting capacity and is engineered for easy plug-in installation, ensuring both safety and convenience.

Key Specifications
• Part Number: JDA36175SA
• Manufacturer: Square D
• Amperage: 175 Amp
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: I-Line style plug-in
• Interrupt Rating: 18kA @ 480V AC, 25kA @ 240V AC, 14kA @ 600V AC
• Series/Frame: J Frame
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA
• Connection: Plug-in
• Application: Commercial, industrial power distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA36175SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901695622
• GTIN : 00785901695622
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
