Description
JD3175Y

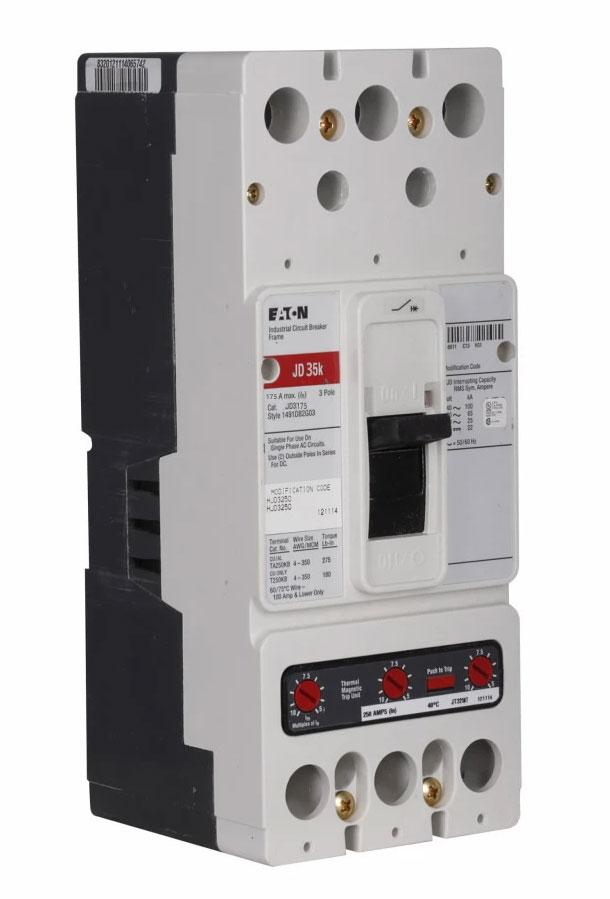

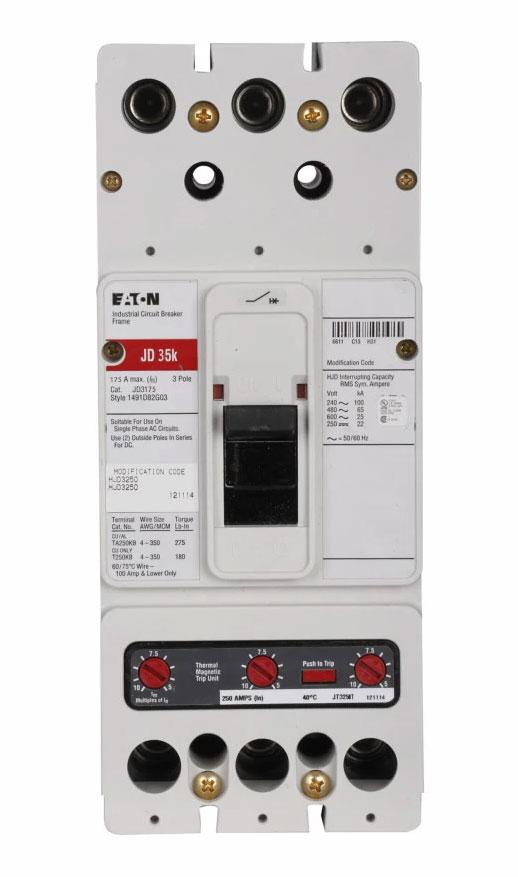

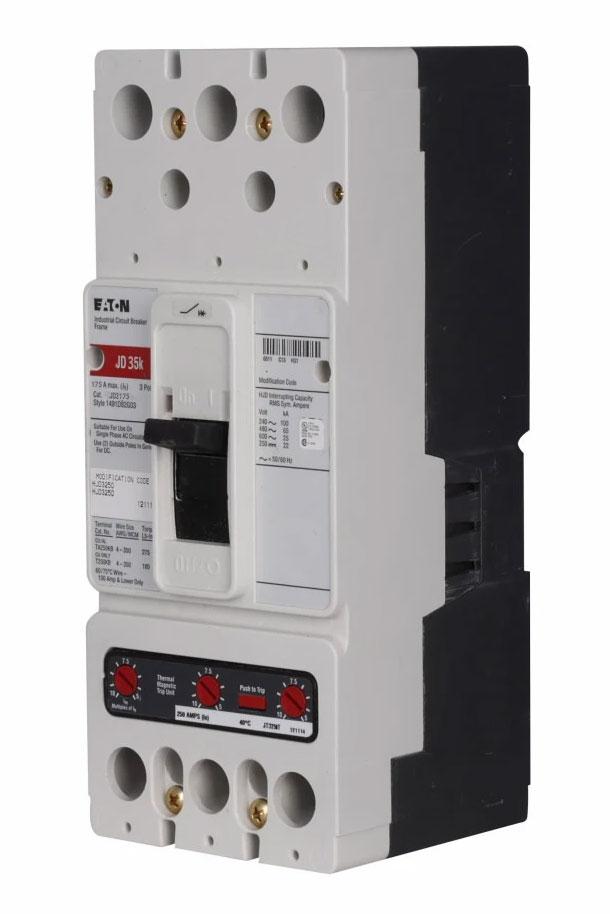

JD3175Y is an Eaton Series C complete molded case circuit breaker designed for reliable circuit protection.
This J-frame JD type breaker features a fixed thermal and fixed magnetic trip unit, providing consistent performance for industrial and commercial applications. It is rated for 175 amps, 600 volts AC, and 250 volts DC, with a three-pole configuration and bolt-on connection. The breaker supports a frequency rating of 50 to 60 Hz and offers an interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, ensuring high fault current interruption capability.
- Key Specifications
- Amperage: 175A
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Frame: J
- Series: Series C
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
- Frequency: 50-60 Hz
- Connection Type: Bolt-On
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JD3175Y
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JD
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679471173
- GTIN : 00786679471173
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 9.55
- Certification : UL Listed
