JD2175 - Eaton 175A 600VAC 2-Pole J-Frame Series C Molded Case Circuit Breaker

JD2175

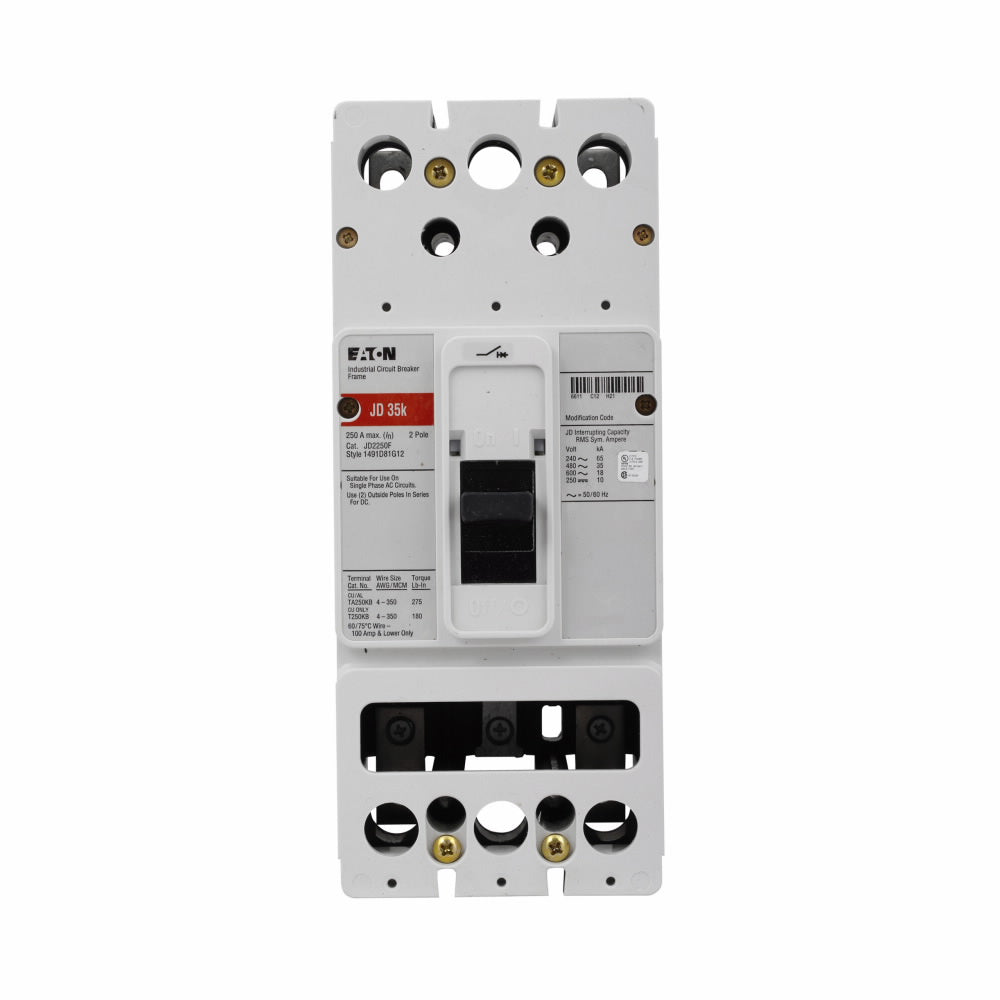

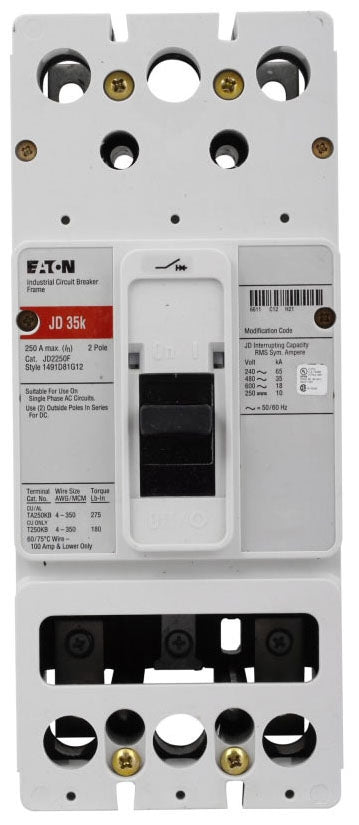

JD2175 is a 175 amp, 600 VAC, 2-pole molded case circuit breaker from Eaton's Series C J-frame JD type breakers.This complete breaker features fixed thermal and fixed magnetic trip units, designed for line and load aluminum terminals. It has a 35 kA interrupt rating at 480 VAC and supports 50 to 60 Hz frequency. The compact dimensions are approximately 4.13 inches in height, width, and 4.06 inches in depth. It is UL Listed for safety and reliability.

• Amperage Rating: 175 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 2
• Frame Type: J
• Series: Series C
• Trip Type: Fixed thermal, fixed magnetic
• Interrupt Rating: 35 kAIC at 480 VAC
• Terminal Material: Aluminum
• Terminals: Line and Load
• Frequency Rating: 50 to 60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JD2175
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679346051
• GTIN : 00786679346051
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 0.01
• Certification : UL Listed
