Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
JCY-80E

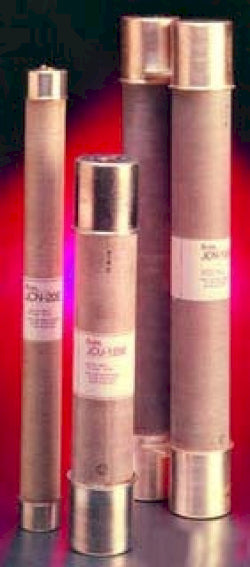

JCY-80E is a Bussmann series E-Rated medium voltage fuse designed for transformer and feeder protection in industrial and commercial power distribution systems. This single barrel cartridge fuse features plated ferrules and is rated for 5.5kV AC and 80 amps, providing reliable current-limiting protection with open fuse indication. The JCY-80E is engineered for indoor or enclosure mounting and meets ANSI/IEEE standards for E-Rated fuses. It offers a symmetrical interrupting rating of 40kA and asymmetrical interrupting rating of 60kA, making it suitable for a wide range of medium voltage applications. The fuse is constructed with plated ferrules for secure connections and is designed for easy installation and replacement.
- Part Number: JCY-80E
- Manufacturer: Eaton (Bussmann)
- Current Rating: 80A
- Voltage Rating: 5.5kV AC
- Interrupting Rating: 60kA Asym, 40kA Sym
- Mounting Type: Indoor/Enclosure
- Series/Frame: E-Rated, Single Barrel
- Construction: Plated Ferrules
- Application: Transformer & Feeder Protection
- Standards: ANSI/IEEE C37.40, E-Rated
- Body Type: Cartridge
- Open Fuse Indication: Yes
Specifications
- Part Number: JCY-80E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : JCY
- Voltage : 5500
- Amperage : 80
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 051712694544
- GTIN : 00051712694544
- Weight : 18
