Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

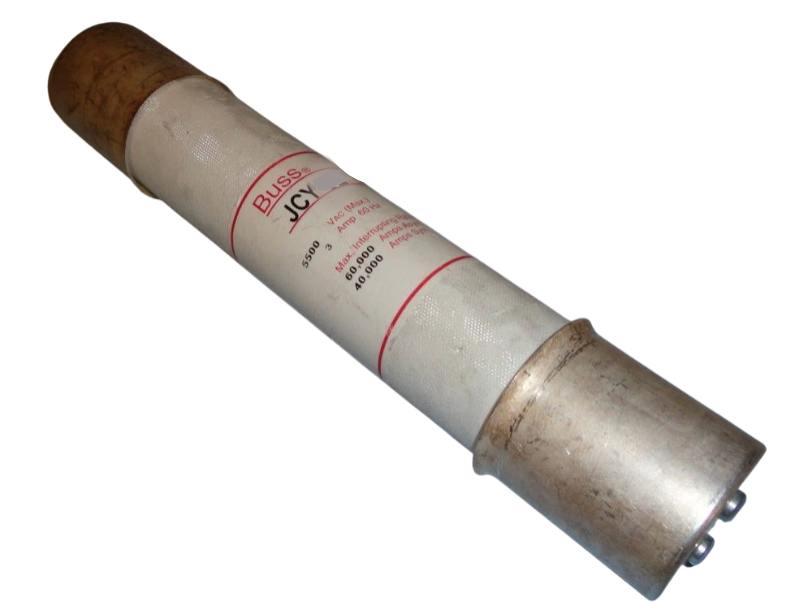

JCY-25E
JCY-25E is an Eaton Bussmann series E-Rated medium voltage fuse designed for reliable circuit protection in electrical systems.This fuse features a 25 ampere rating, 5500 volt voltage rating, and a 60 kA interrupting rating. It is a single-pole, current limiting fuse with ferrule end connections on both sides. The fuse is non-indicating and classified as Class E, suitable for feeder circuits, switchgear, and transformer protection. It requires a holder for mounting and complies with ANSI C37.46 standards.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 5500 V AC
- Poles: 1
- Interrupt Rating: 60 kAIC
- Fuse Class: Class E
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Mounting Type: Requires holder
- Fuse Type: Cartridge
- Series: Bussmann JCY E-Rated
- Element: Single
- Compliance: ANSI C37.46, UL Listed
Specifications
- Part Number: JCY-25E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JCY
- Type : JCY
- Voltage : 5500
- Amperage : 25
- AIC rating : 40kA@5500V
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 05171269449
- GTIN : 00051712694490
- Dimensions : 3 in x 11.5 in x 3 in (Length/Depth x Height x Width)
- Weight : 3.25
