Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
JCY-10E

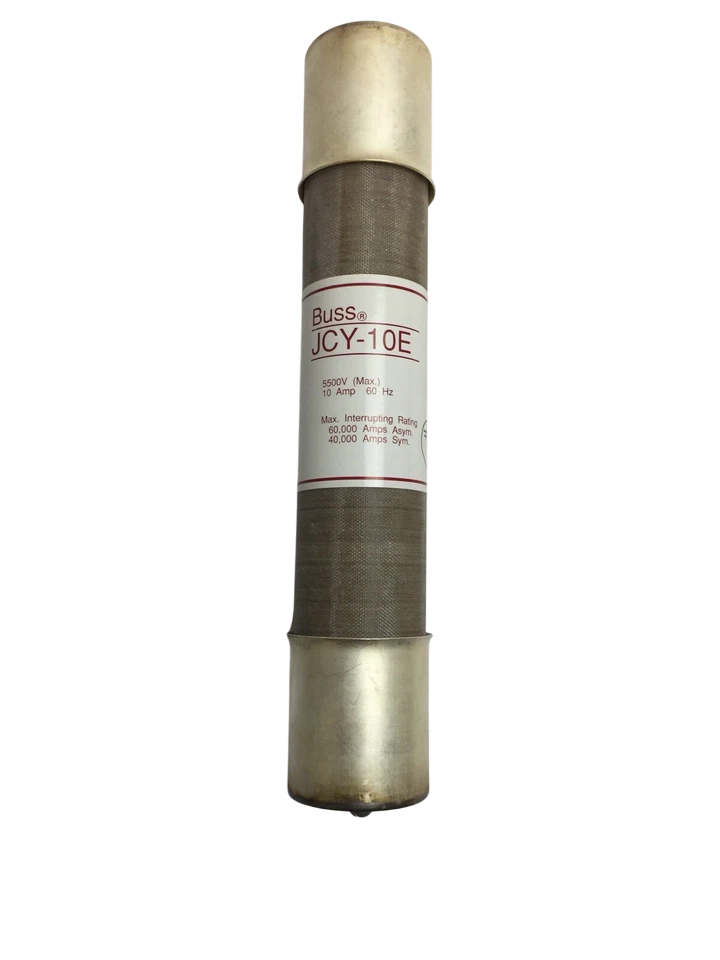

JCY-10E is a 5.5kV E-Rated medium voltage ferrule fuse designed for transformer, feeder circuit, and switchgear protection applications. This Eaton Bussmann series fuse provides reliable, current-limiting protection with a non-indicating design and ferrule end terminations. This fuse is engineered for use in medium voltage systems requiring high interrupting capacity and fast response. It meets ANSI C37.46 standards and is UL Listed for safety and compliance. The JCY-10E is suitable for applications where dependable circuit protection is critical.
- Part Number: JCY-10E
- Manufacturer: Eaton
- Series: Bussmann
- Rated Voltage: 5.5 kVAC
- Rated Current: 10A
- Interrupting Rating: 60 kA RMS Sym
- Mounting Type: Ferrule End
- Indication: Non-Indicating
- Protection Type: Current Limiting
- Standards: ANSI C37.46, UL Listed
- Application: Transformer, Feeder Circuit, Switchgear
- Frame/Class: E-Rated
Specifications
- Part Number: JCY-10E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JCY
- Type : JCY
- Voltage : 5500
- Amperage : 10
- AIC rating : 40kA@5500V
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 05171269446
- GTIN : 00051712694469
- Dimensions : 3 in x 11.5 in x 3 in (Length/Depth x Height x Width)
- Weight : 3.25
