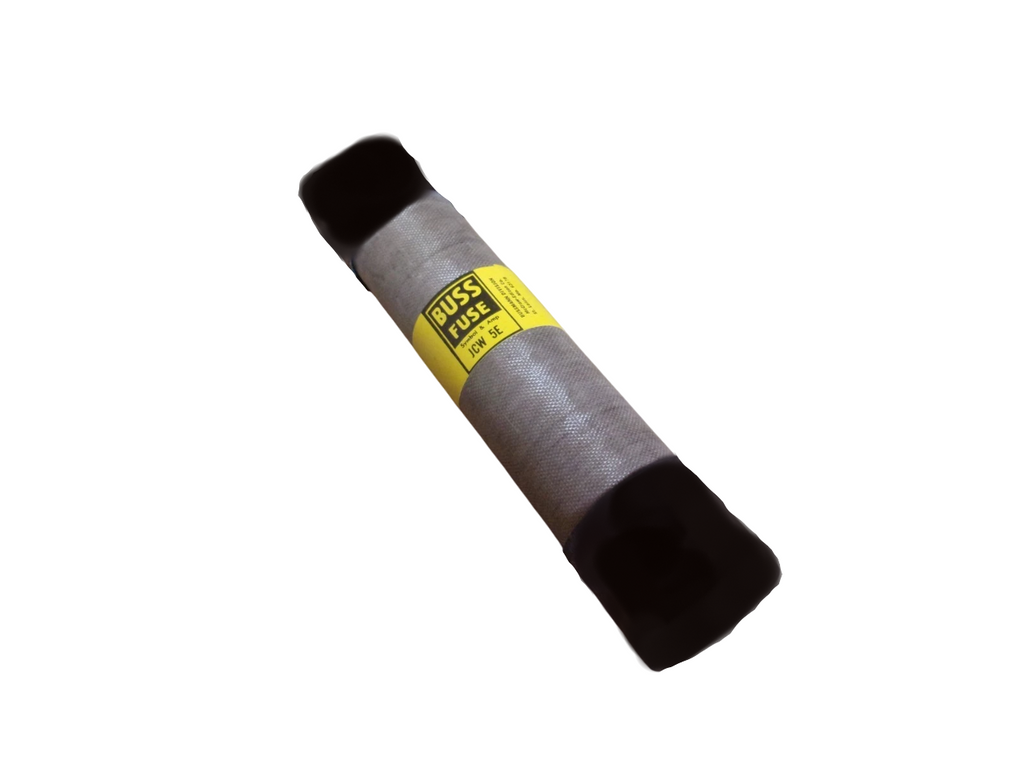

JCW-5E - Eaton 5A 2.4/5.5kV E-Rated Medium Voltage Current Limiting Fuse

JCW-5E

JCW-5E is an Eaton E-Rated medium voltage current limiting fuse designed for protection in power distribution systems. This fuse is suitable for use in potential and small power transformers, providing reliable circuit protection with a single element construction.Engineered for medium voltage applications, the JCW-5E fuse features a current limiting design and is rated for 5A at 2.4/5.5kV. It is classified as an E class fuse and is constructed for single-pole mounting. The fuse is designed to withstand high fault currents and is compatible with standard fuse clips for 1.6 inch diameter fuses.

• Amperage: 5A
• Voltage: 2.4/5.5kV
• Poles: Single
• Mounting Type: Single-pole
• Interrupt Rating: 40kAIC RMS Symmetrical
• Series/Frame: JCW
• Element Type: Single element
• Class: E
• Construction: Current limiting
• Diameter: 1.6 inch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JCW-5E
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : JCW
• Type : JCW
• Voltage : 5500
• Amperage : 5
• AIC rating : [email protected]
• Diameter : 1.56
• Class Rating : E
• Barrels : 1
• Clip Center : 5.93

Product Data

• UPC : 05171269405
• GTIN : 00051712694056
• Dimensions : 1.63 in x 7.46 in x 1.63 in (Length/Depth x Height x Width)
• Weight : 1.1
