JCW-1E - Eaton 1A 2.4/5.5 kV E-Rated Medium Voltage Fuse 40 kAIC

JCW-1E

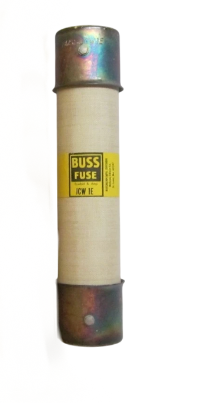

JCW-1E is an Eaton Bussmann series E-Rated PT medium voltage fuse designed for current limiting protection in electrical systems.This fuse features a 1 ampere rating with voltage ratings of 2.4 kV and 5.5 kV, providing a 40 kAIC RMS symmetrical interrupt rating. It is a single-element, non-indicating fuse with ferrule end to ferrule end connections, classified as Class E. The cylindrical body measures approximately 1.63 inches in diameter and 7.46 inches in length, suitable for medium voltage transformer and control applications.

• Amperage: 1 A
• Voltage Rating: 2.4 kV / 5.5 kV AC
• Interrupt Rating: 40 kAIC RMS Symmetrical
• Class: E-Rated
• Poles: Single
• Connection Type: Ferrule end x Ferrule end
• Body Diameter: 1.63 in
• Body Length: 7.46 in
• Fuse Element: Single
• Indication: Non-indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JCW-1E
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : JCW
• Type : JCW
• Voltage : 5500
• Amperage : 1
• AIC rating : [email protected]
• Diameter : 1.56
• Class Rating : E
• Barrels : 1
• Clip Center : 5.93

Product Data

• UPC : 05171269401
• GTIN : 00051712694018
• Dimensions : 1.63 in x 7.46 in x 1.63 in (Length/Depth x Height x Width)
• Weight : 1.1
