Product Info
- Manufacturer:Cooper Bussmann
- Sub-Category:Medium Voltage
Description

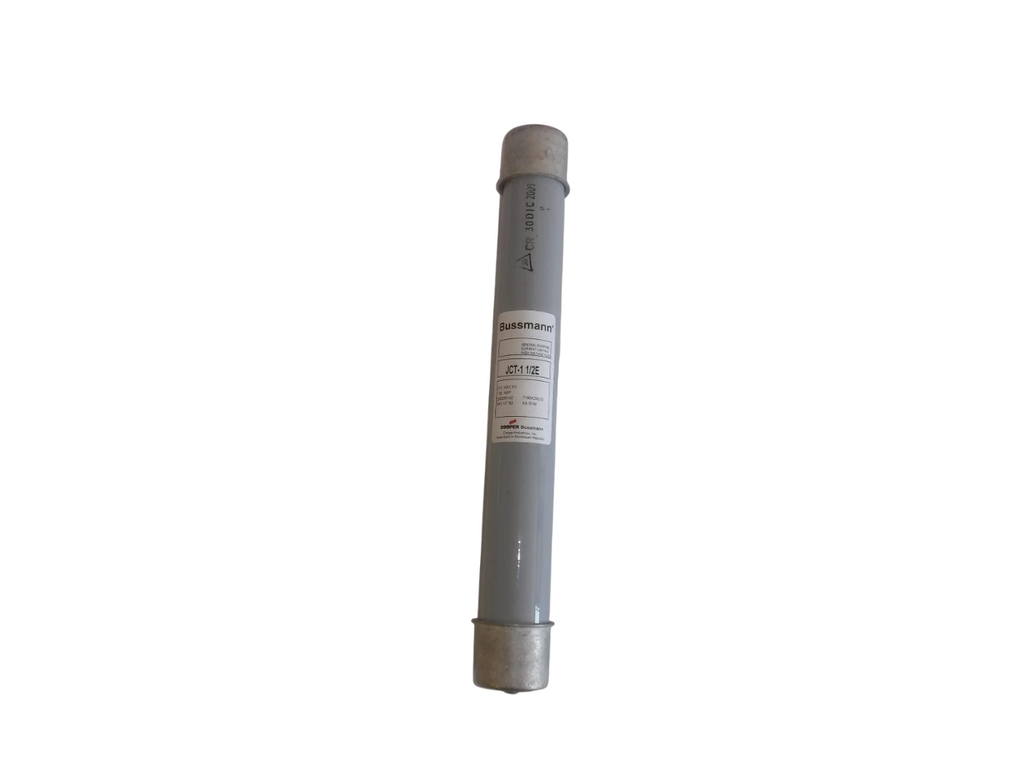

JCT-1-1/2E
JCT-1-1/2E is a 1.5 amp, 15.5 kV medium voltage fuse from Eaton designed for reliable circuit protection.This Eaton JCT-1-1/2E fuse features a slow blow (time delay) characteristic with Class E rating, suitable for potential and small power transformer protection. It has a single pole design with a filament wound glass epoxy tube construction, silver-plated copper terminals, and an interrupting rating of 80 kA. The fuse includes an indicator for open fuse status and is rated for 50/60 Hz operation, making it suitable for indoor and outdoor applications. It meets ANSI C37.46 standards and is RoHS compliant.
- Key Specifications
- Amperage: 1.5 A
- Voltage Rating: 15.5 kV
- Interrupt Rating: 80 kA
- Poles: Single
- Fuse Type: Time Delay / Slow Blow
- Mounting Type: Clip-lock or bolt-in style (typical for JCT series)
- Class: E
- Indicator: With open fuse indicator
- Standards: ANSI C37.46 compliant
- Construction: Filament wound glass epoxy tube with silver-plated copper terminals
- Approvals: RoHS compliant
Specifications
- Part Number: JCT-1-1/2E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : JCT
- Type : JCT
- Voltage : 15500
- Amperage : 1.5
- AIC rating : [email protected]
- Diameter : 1.6
- Class Rating : E
- Barrels : 1
- Clip Center : 12.93
Product Data
- Weight : 2
