Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

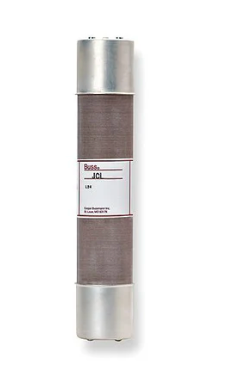

JCL-A-9R
JCL-A-9R is a 200 amp R-Rated medium voltage fuse designed for motor circuit protection with a 2400 volt rating and Hookeye mounting.JCL-A-9R features a single barrel construction and is part of Eaton's R-Rated fuse series, engineered for reliable motor protection in medium voltage applications. It has a nominal voltage rating of 2.4 kV (2400V) and is designed to melt within 15 to 35 seconds at 100 times the "R" rating per ANSI C37.46 standards. The fuse includes a Westinghouse Ampgard Hookeye for secure mounting and ease of installation. It meets UL Recognized standards under Guide MSSS2, File E96676.
- Key Specifications
- Amperage: 200A
- Voltage: 2400V nominal (2.4 kV)
- Fuse Type: R-Rated
- Mounting Type: Westinghouse Ampgard Hookeye
- Construction: Single barrel
- Interrupt Rating: 50 kA Symmetrical
- Standards: ANSI C37.46, UL Recognized Guide MSSS2, File E96676
- Application: Motor circuit protection
Specifications
- Part Number: JCL-A-9R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JC Series
- Type : JCL
- Voltage : 5080
- Amperage : 200
- AIC rating : 50kA@4800V
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 005171269135
- GTIN : 00051712691352
- Country of Origin : Mexico
- Weight : 10
