Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

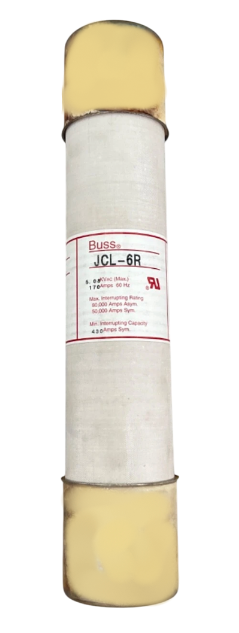

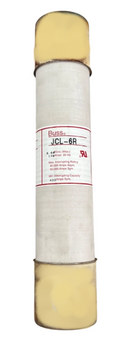

JCL-6R
JCL-6R is an R-Rated medium voltage cartridge fuse designed for motor circuit protection applications. This current-limiting fuse provides reliable protection in high-voltage electrical systems and is engineered to meet ANSI C37.46 performance standards for medium voltage motor protection. JCL-6R features a medium-blow response characteristic and is available in a standard cartridge construction with bolt-on or clip mounting options for flexible installation in existing hardware. The fuse is UL Recognized under Guide MSSS2, File E96676, ensuring compliance with industry safety standards.
- Current Rating: 170 Amperes
- Voltage Rating: 5.08 kVAC (5080 V)
- Interrupt Rating: 50 kA Sym / 80 kA Asym
- Fuse Type: Cartridge
- Response Time: Medium Blow
- Mounting Type: Bolt-On / Clip
- Class: R-Rated
- Agency Certification: UL Recognized (MSSS2, File E96676)
- Standards Compliance: ANSI C37.46
Specifications
- Part Number: JCL-6R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JC Series
- Type : JCL
- Voltage : 5080
- Amperage : 170
- AIC rating : 50kA@4800V
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 005171269106
- GTIN : 00051712691062
- Weight : 10
