Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

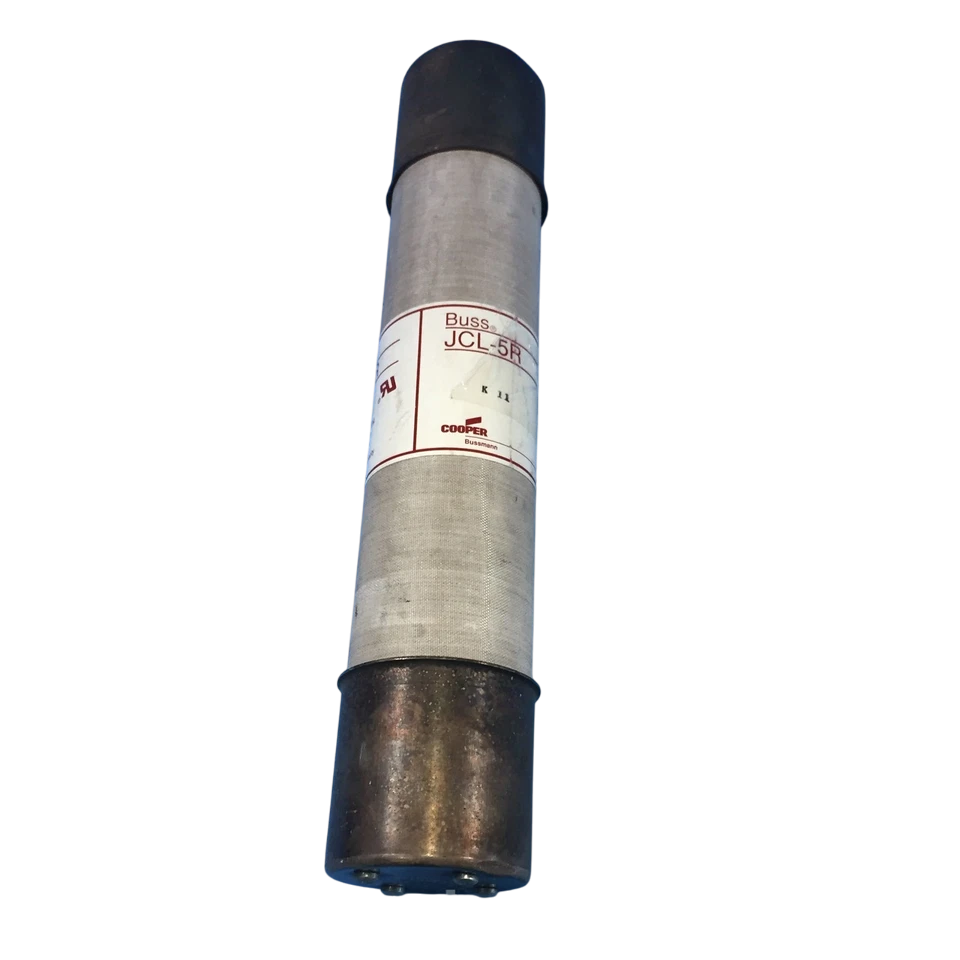

JCL-5R
JCL-5R is an R-Rated medium voltage cartridge fuse designed for motor circuit protection in industrial and commercial applications.
The JCL-5R delivers reliable current-limiting protection with a 150 ampere continuous rating at 4.8 kVAC. This fuse features an 80 kA asymmetrical interrupting rating and meets ANSI C37.46 performance standards for R-Rated fuses. The cartridge design provides compact mounting in standard fuse holders compatible with CLS, JCL, and 5HCLS type mountings.
- Current Rating: 150 Amps
- Voltage Rating: 4.8 kVAC
- Interrupting Rating: 80 kA Asymmetrical
- Fuse Type: Cartridge, Current Limiting
- Rating Class: R-Rated
- Physical Size: 3 inches x 15.76 inches
- Application: Motor Circuit Protection
- Agency Certification: UL Recognized, ANSI C37.46 Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JCL-5R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JC Series
- Type : JCL
- Voltage : 5080
- Amperage : 150
- AIC rating : 50kA@4800V
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 05171269105
- GTIN : 00051712691055
- Weight : 10
- Certification : UL
