Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

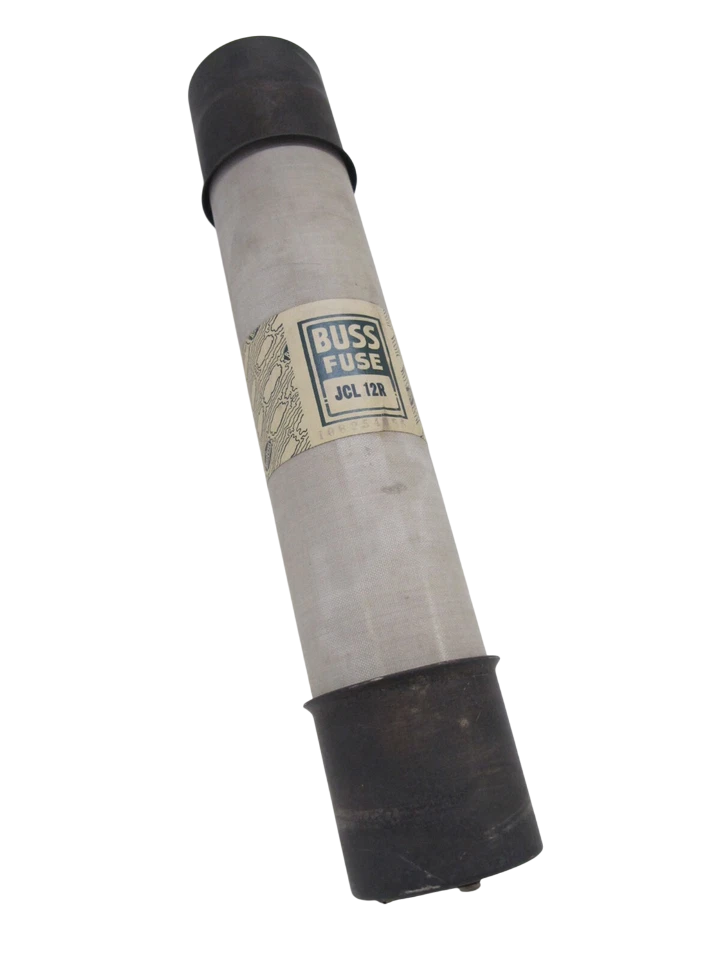

JCL-12R
JCL-12R is a high voltage current limiting fuse designed for motor circuit protection applications. This R-rated fuse from Eaton delivers reliable performance in medium voltage electrical systems with a melamine construction for enhanced durability and safety. The JCL-12R is UL recognized and meets ANSI C37.46 performance standards for dependable circuit protection.
- Current Rating: 230 Amps
- Voltage Rating: 4800V nominal (5.0 kV max design)
- Interrupting Rating: 50 kA Sym at 4800V
- Fuse Type: High Voltage Current Limiting
- Rating Class: R-Rated
- Material: Melamine
- Mounting Style: JCL Type
- Agency Certification: UL Recognized (Guide MSSS2, File E96676)
- Standards Compliance: ANSI C37.46
- Application: Motor Circuit Protection
Specifications
- Part Number: JCL-12R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JC Series
- Type : JCL
- Voltage : 5080
- Amperage : 230
- AIC rating : 50kA@4800V
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 005171269112
- GTIN : 00051712691123
- Weight : 10
