Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

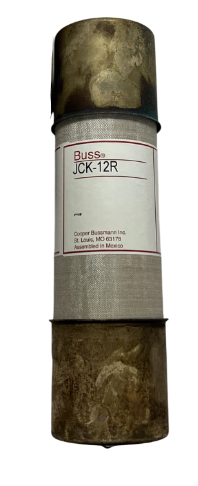

JCK-12R
JCK-12R is a current-limiting medium voltage fuse designed for motor circuit protection in industrial applications.
This R-rated cartridge fuse delivers reliable overcurrent protection with a 230 ampere rating at 2.4 kV nominal (2.54 kV maximum design voltage). The fuse features a 3-inch by 11.24-inch cartridge body construction and provides dual interrupt ratings of 80 kA asymmetrical and 50 kA symmetrical, ensuring superior fault current limitation and system safety. UL recognized under Guide MSSS2, File E96676.
- Amperage Rating: 230 A
- Voltage Rating: 2.4 kV nominal / 2.54 kV maximum
- Class: R-Rated
- Interrupt Rating: 80 kA asymmetrical / 50 kA symmetrical
- Body Style: Cartridge
- Physical Size: 3 inch x 11.24 inch
- Current Limiting: Yes
- Application: Motor Circuit Protection
- UL Recognition: Guide MSSS2, File E96676
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JCK-12R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JC Series
- Type : JCK
- Voltage : 2540
- Amperage : 230
- AIC rating : 50kA@2400V
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 05171269012
- GTIN : 00051712690126
- Weight : 6
