Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

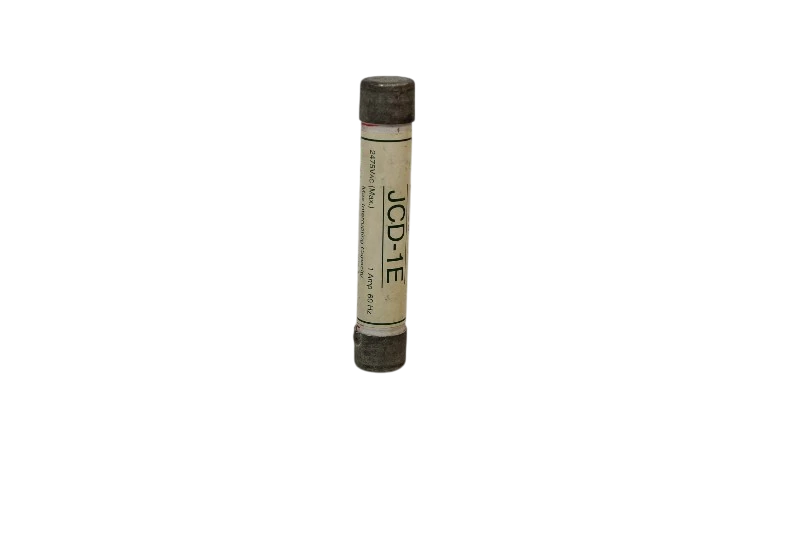

JCD-1E
JCD-1E is a current-limiting medium voltage fuse designed for transformer protection applications. This cartridge-style fuse delivers reliable circuit protection in electrical distribution systems requiring compact, high-performance fusing solutions.JCD-1E features a single-barrel design with current-limiting technology that meets ANSI C37.46 performance standards for E-Rated fuses. The fuse is engineered for use in potential transformers, small power transformers, and control transformer circuits where dependable backup protection is essential. Its compact ferrule construction allows installation in standard medium voltage fuse blocks and clips.
- Current Rating: 1A
- Voltage Rating: 2.4 kVAC
- Interrupting Rating: 40 kA RMS Symmetrical
- Fuse Type: Cartridge, Single Barrel
- Class: E-Rated, Current Limiting
- Dimensions: 4.49 inches length, 0.8 inch diameter
- Agency Listing: UL Listed
- Application: Transformer Protection
- Standards: ANSI C37.46, IEC Compliant
Specifications
- Part Number: JCD-1E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : JCD
- Type : JCD
- Voltage : 2400
- Amperage : 1
- AIC rating : [email protected]
- Diameter : 0.8
- Class Rating : E
- Barrels : 1
- Clip Center : 3.86
Product Data
- UPC : 05171214461
- GTIN : 00051712144612
- Country of Origin : Dominican Republic
- Weight : 1
