J60400-3CR - Eaton Class J Modular Fuse Block 225-400A 600V 3-Pole 200kAIC

J60400-3CR

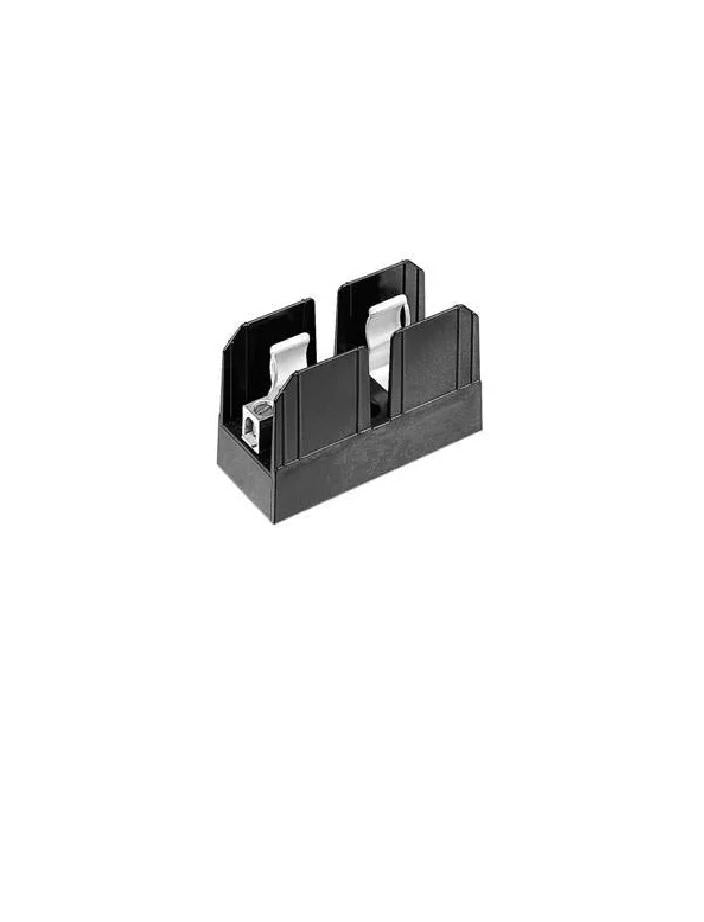

J60400-3CR is a three-pole Class J modular fuse block designed for reliable circuit protection in industrial and commercial power distribution systems. This Eaton Bussmann series fuse block supports amperages from 225 to 400 amps and is rated for 600 volts, making it suitable for a wide range of applications requiring high interrupt capacity. The block features a knife blade end design for secure connections and is built for bolt-down or DIN rail mounting, providing flexibility in installation. It is engineered to withstand short-circuit currents up to 200 kA, ensuring robust protection under demanding conditions. The J60400-3CR is part of the JM60 frame series and is designed for easy circuit identification with provisions for marking labels. It is suitable for use with solid, stranded, and fine stranded copper conductors, and includes lockout/tagout rings for added safety. The block is compatible with non-indicating and indicating covers for enhanced monitoring and maintenance.

• Part Number: J60400-3CR
• Manufacturer: Eaton
• Series/Frame: JM60
• Amperage: 225-400 A
• Voltage: 600 V
• Poles: 3
• Interrupt Rating: 200 kAIC
• Mounting Type: Bolt-Down, DIN Rail
• Connection Type: Knife Blade End
• Conductor Compatibility: Solid, Stranded, Fine Stranded Copper
• Certifications: UL Listed, CSA Certified, CE, RoHS Compliant
• Features: Lockout/Tagout Rings, Provision for Marking Labels

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: J60400-3CR
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Block
• Voltage : 600
• Amperage : 400
• Mounting : Box

Product Data

• UPC : 051712253291
• Weight : 1
• Certification : UL, CSA, CE
