Product Info
- Manufacturer:Bussmann
Description
J600601CR

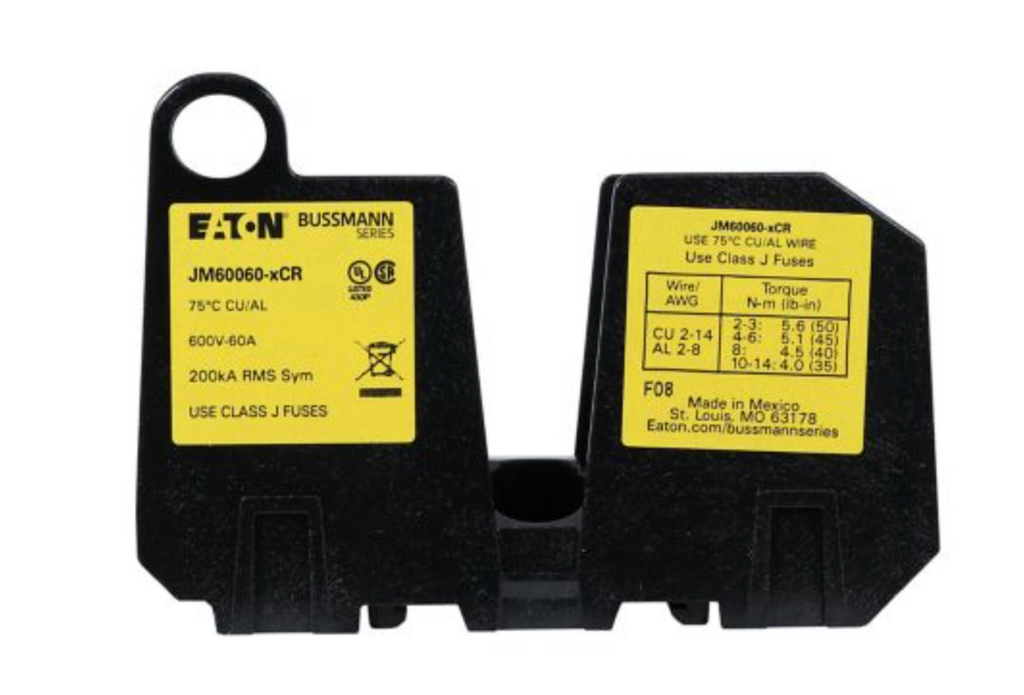

J600601CR is a Bussmann JM Series modular fuse block designed for reliable circuit protection in industrial and commercial applications. This single-pole fuse block is compatible with Class J fuses and features a box lug connection for secure wiring. The J600601CR supports amperage ratings from 31 to 60 amps and is rated for 600 volts AC/DC. It is suitable for use with 14-2 AWG copper or 8-2 AWG aluminum wire and can be mounted on a 35mm DIN rail or panel. The block is constructed with thermoplastic material for durability and safety.
- Amperage Rating: 31 to 60A
- Voltage Rating: 600V AC/DC
- Number of Poles: 1
- Class: J
- Connection Type: Box Lug
- Mounting Type: 35mm DIN Rail or Panel
- Interrupt Rating: 200 kAIC
- Series: JM
- Wire Size: 14-2 AWG Copper, 8-2 AWG Aluminum
- Material: Thermoplastic
- UL Listed
- CSA Certified
Specifications
- Part Number: J600601CR
- Brand : Bussmann
Product Data
- Weight : 0.15
