Product Info
- Manufacturer:Bussmann
Description
J600301CR

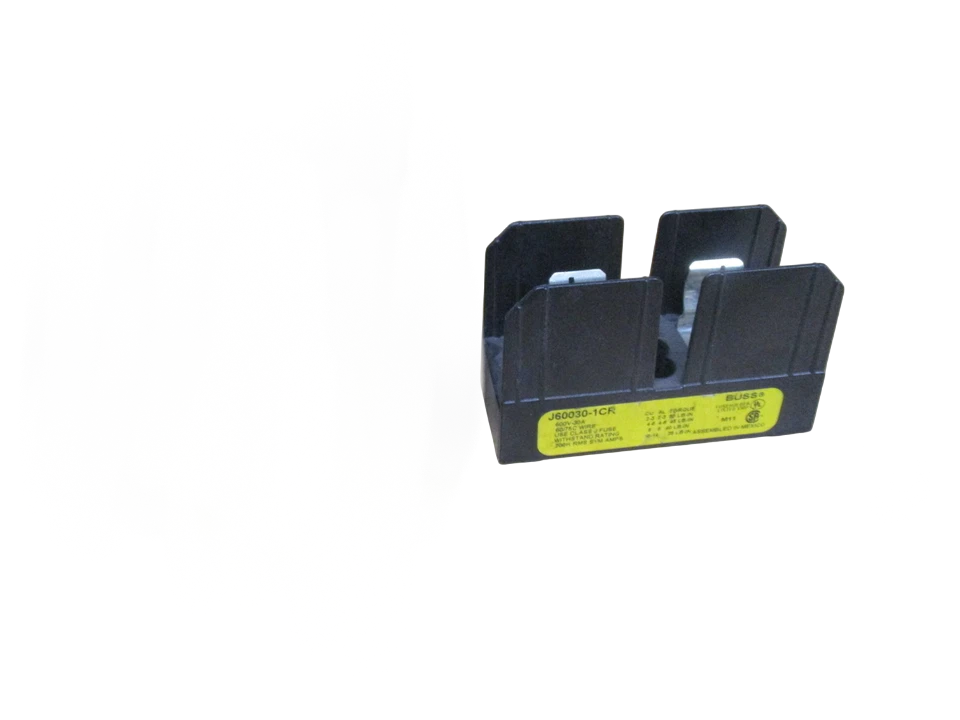

J600301CR is a Bussmann 1-pole modular fuse block designed for Class J fuses, rated for 30A and 600V applications. This thermoplastic fuse block supports DIN rail or panel mounting and is suitable for industrial and commercial power distribution systems. The J600301CR fuse block features a robust thermoplastic construction and accepts Class J fuses with a diameter of 0.81 inches and length of 2.25 inches. It is engineered for reliable circuit protection in demanding environments and supports wire sizes from 14-2 AWG copper or 8-2 AWG aluminum. The block includes provisions for marking labels and lockout/tagout rings for added safety.
- Part Number: J600301CR
- Manufacturer: Bussmann
- Amperage Rating: 30A
- Voltage Rating: 600V
- Number of Poles: 1
- Fuse Class: Class J
- Mounting Type: DIN Rail/Panel
- Material: Thermoplastic
- Fuse Diameter: 0.81 in
- Fuse Length: 2.25 in
- Wire Size: 14-2 AWG Copper / 8-2 AWG Aluminum
- Connection Type: Ferrule/Box Lug
Specifications
- Part Number: J600301CR
- Brand : Bussmann
Product Data
- Weight : 5.19
