Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
J60030-3CR

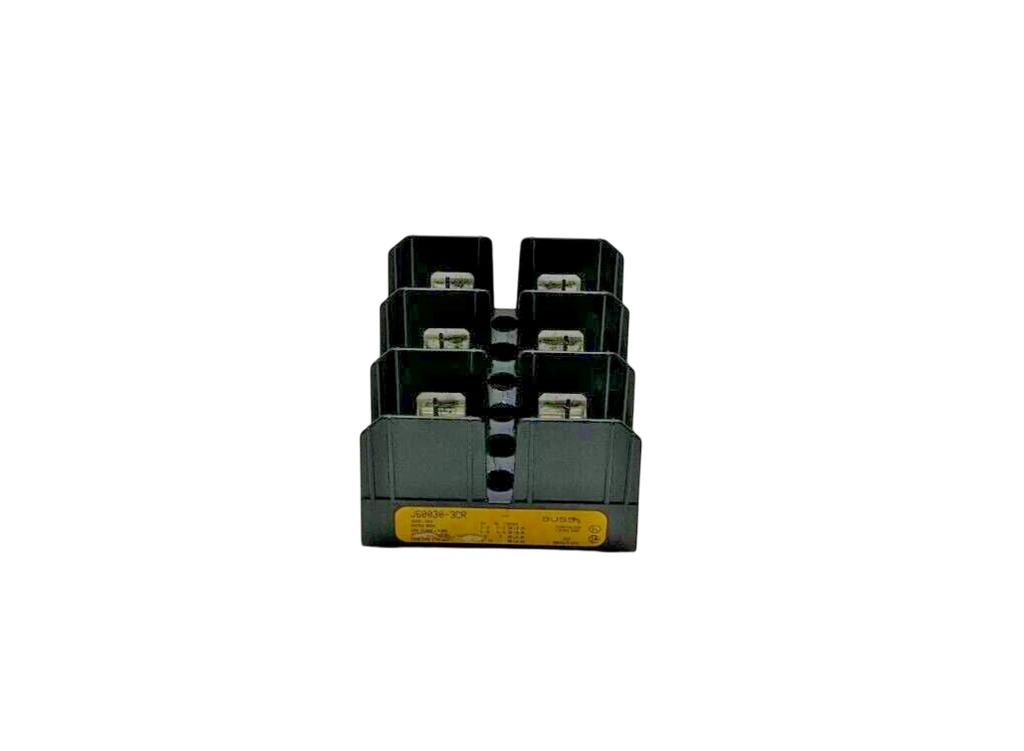

J60030-3CR is an Eaton Bussmann JM Series fuse block designed for 30 amp, 600 volt applications with three poles and box lug connections.This modular fuse block supports Class J fuses and features a 200 kA interrupting rating. It is suitable for DIN rail, surface, or panel mounting and is compatible with Low-Peak LPJ series time delay, Limitron JKS, and DFJ series ferrule fuses. The body is made of thermoplastic, rated for temperatures from -40 to 120 °C, and certified UL, CSA, and CE compliant.
- Key Specifications
- Amperage: 0-30 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 3
- Interrupting Rating: 200 kAIC
- Mounting Type: DIN Rail, Surface, Panel
- Connection Type: Box Lug
- Series/Frame: JM60
- Compatible Fuses: Low-Peak LPJ, Limitron JKS, DFJ Ferrule
- Certifications: UL Listed, CSA Certified, CE Marked
- Material: Thermoplastic
- Temperature Rating: -40 to 120 °C
- RoHS Compliant
Specifications
- Part Number: J60030-3CR
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 7
- Amperage : 30
Product Data
- UPC : 051712148405
- GTIN : 00051712148405
- Country of Origin : Mexico
- Weight : 1
- Wire Size : AWG 14 to AWG 2, Copper, AWG 8 to AWG 2, Aluminum
