IHB32L/UNV1 SO10 - Eaton Crouse-Hinds Lighting and controls 32000 lm 100-277 Vac

IHB32L/UNV1 SO10

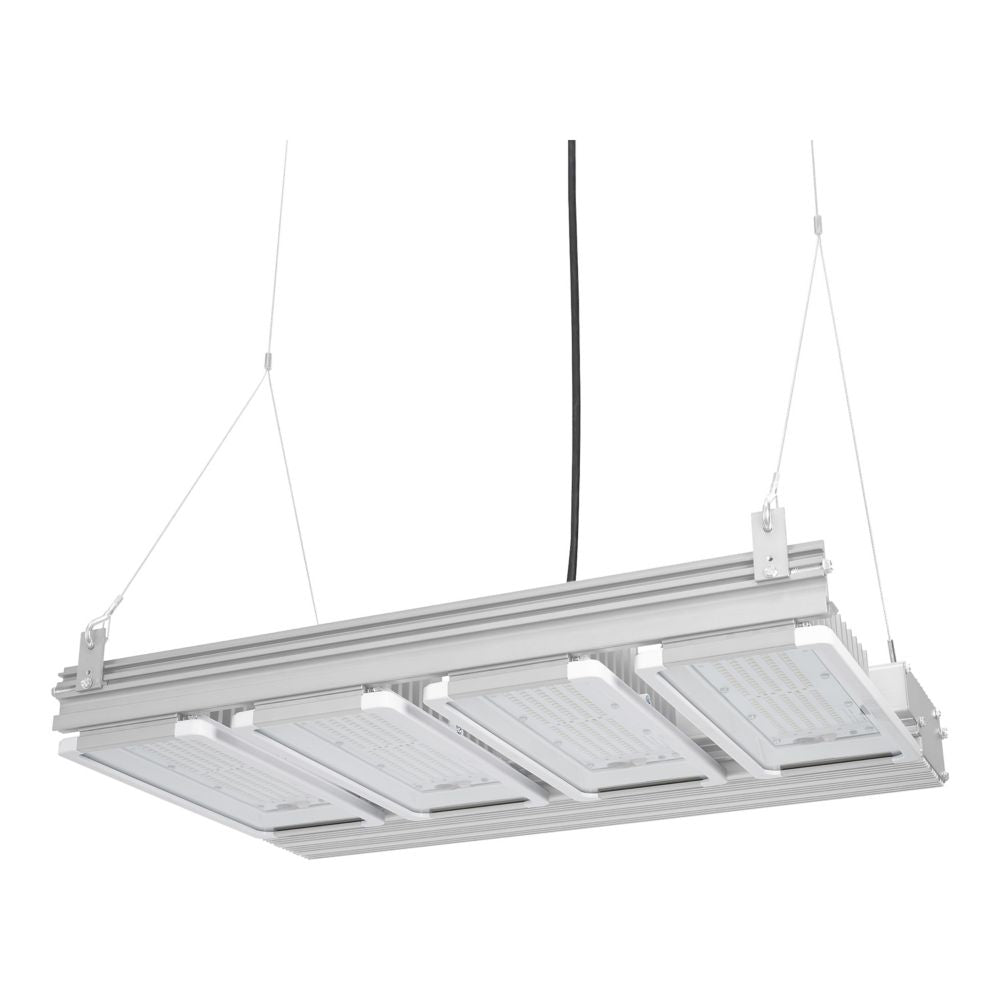

IHB32L/UNV1 SO10 is an Eaton Crouse-Hinds series IHB industrial high bay LED light fixture. It is listed as a light fixture for ordinary/non-hazardous locations with an aluminum housing, diffused polycarbonate lens, non-dimmable driver, and 10 ft SO cable. The catalog family data shows the IHB32L model at 32,000 lumens, 117 lm/W, 289 W, and 50/60 Hz operation. Key Specifications

• Part Number: IHB32L/UNV1 SO10
• Manufacturer: Eaton Crouse-Hinds
• Product Type: Light fixture
• Area Classification: Ordinary/Non-Hazardous Locations
• Voltage: 100-277 Vac, 127-250 Vdc
• Frequency: 50/60 Hz
• Lumens: 32000
• Lumens per watt: 117
• Color temperature: Cool white
• Mounting Method: No mounting module
• Optical distribution: Wide
• Dimming: Non-dimmable driver
• Material: Aluminum
• Lens material: Diffused polycarbonate
• Wattage: 289 W
• Equivalent luminaire: 500W-1000W HID or 6-8-lamp T5HO
• Power factor: 0.99
• Special features: 10 ft. SO cable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: IHB32L/UNV1 SO10
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Type : Light fixture
• Voltage : 100-277 Vac, 127-250 Vdc
• Watts : 289 W
• Metal Type : Aluminum
• Mounting : No mounting module
• Hz : 50/60 Hz
• Material : Aluminum
• Lumens : 32000
• Lumens per watt : 117
• Color temperature : Cool white
• Mounting Method : No mounting module
• Equivalent luminaire : 500W-1000W HID or 6-8-lamp T5HO
• Guard type : Diffused polycarbonate lens
• Dimming : Non-dimmable driver
• Power factor : 0.99
• Special features : 10 ft. SO cable

Product Data

• UPC : 662276572409
• Dimensions : 18.81 in x 4.23 in x 27.36 in (Length/Depth x Height x Width)
• Weight : 37 lb
