Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
IG5361

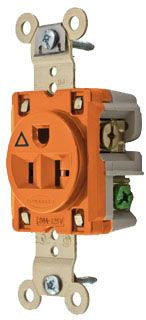

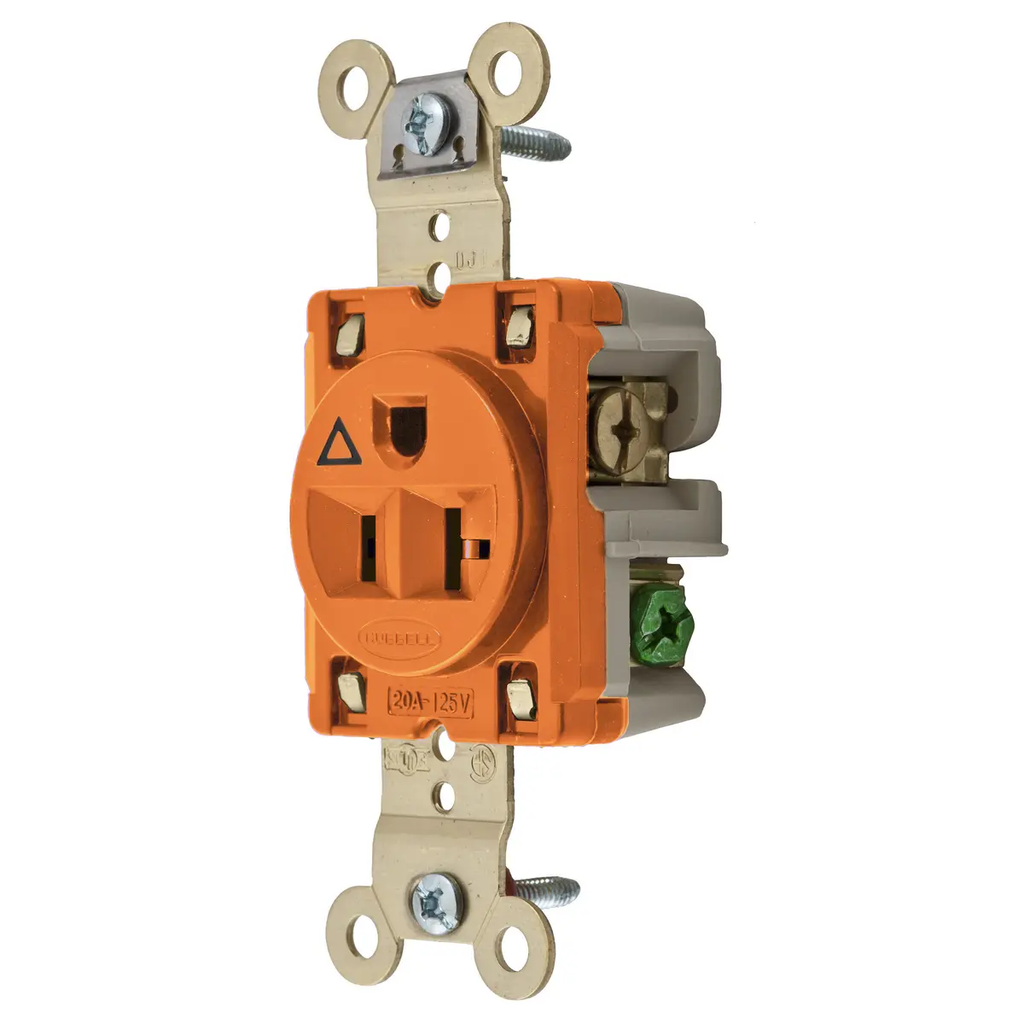

IG5361 is a Hubbell 20 Amp, 125 Volt, 2-Pole 3-Wire Isolated Ground Straight Blade Receptacle with NEMA 5-20R configuration and orange thermoplastic housing.
This commercial/industrial grade receptacle features an isolated ground design with insulation barriers separating the ground contacts from the mounting strap, ensuring a clean, noise-free ground. It includes a 1-piece brass ground strap, exclusive bypass contact design for enhanced contact force and reduced heat buildup, and barbed assembly arms to reduce face/base separation. The device supports back and side wiring with screw terminals and is rated for 1 horsepower. It operates reliably in temperatures from -40 to 75 degrees Celsius and is made in the USA.
- Key Specifications
- Amperage: 20 A
- Voltage: 125 VAC
- Poles: 2
- Wires: 3
- NEMA Rating: 5-20R
- Mounting Type: Screw Mount
- Material: Thermoplastic/Composite
- Horsepower Rating: 1 hp
- Temperature Rating: -40 to 75 °C
- Terminal Type: Back and Side Wire/Screw
- Isolated Ground: Yes
- Country of Origin: USA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: IG5361
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585876856
- GTIN : 00783585876856
- Dimensions : 3.28 in L x 1.63 in W x 1.19 in H 3.28 x 1.63 x 1.19 in
- Weight : 5.19
