Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
IG5262I

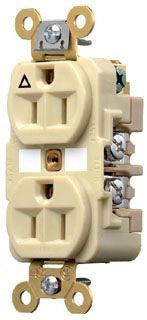

IG5262I is a Hubbell industrial grade isolated ground duplex receptacle rated for 15 amps and 125 volts with a 2-pole, 3-wire configuration.This receptacle features a 5-15R NEMA configuration, back and side wired screw terminals, and is constructed with impact-resistant nylon face and polybutylene terephthalate base. It is UL 498 and CSA C22.2 certified, designed for indoor dry environments, and withstands a dielectric voltage of 2000V minimum. The device supports #14 to #10 AWG wire sizes and operates reliably from -40°C to 75°C.
- Key Specifications
- Amperage: 15 A
- Voltage: 125 V
- Poles: 2
- Wiring: 3-Wire, Back and Side Wired
- Configuration: NEMA 5-15R
- Mounting Type: Duplex Receptacle
- Material: Nylon Face, Polybutylene Terephthalate Base
- Interrupt Rating: Certified for full rated current interrupting
- Certifications: UL 498, CSA C22.2
- Operating Temperature: -40°C to 75°C
- Color: Ivory
- Grade: Industrial / Extra Heavy Duty
Specifications
- Part Number: IG5262I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 125 125
Product Data
- UPC : 783585756547
- GTIN : 00783585756530
- Dimensions : 3.28 in H x 1.65 in W x 0.96 in D 3.28 x 1.33 x 1.05 in
- Weight : 0.3
