Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
IG5262

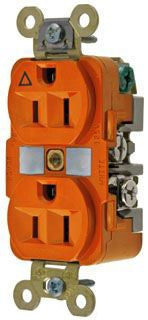

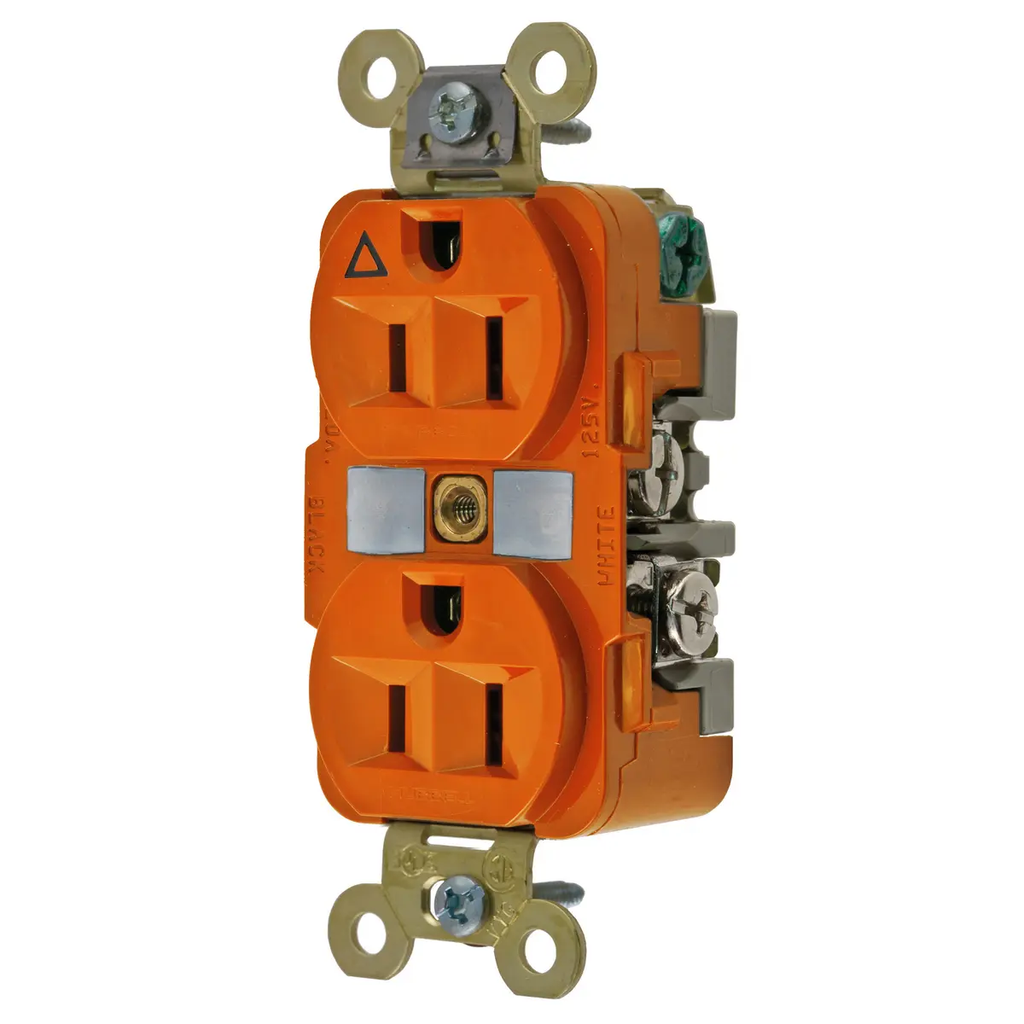

IG5262 Hubbell orange isolated ground duplex receptacle delivers reliable power for sensitive electronics in commercial and industrial settings.
This extra heavy-duty receptacle features a NEMA 5-15R configuration, isolated ground for reduced electrical noise, and a durable nylon face with polybutylene terephthalate base. It is designed for indoor dry environments and offers both back and side wiring options for flexible installation. The triangle marking on the face indicates isolated ground, and the compact design saves space in electrical enclosures.
-
Key Specifications
- Amperage: 15A
- Voltage: 125V AC
- Poles: 2
- Wire Count: 3
- Mounting Type: Flush
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: Not specified
- Trip Unit: Not applicable
- Certifications: UL Listed (UL 498 File No. E2186), CSA C22.2 No. 42, RoHS Compliant, Federal Specification W-C-596, NEMA WD1/WD5
- Color: Orange
- Wiring Method: Back and side wire
- Application: Indoor dry environment
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: IG5262
- Manufacturer : Hubbell
- Brand : LEVITON
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 125 125
Product Data
- UPC : 785007045277
- GTIN : 00783585756530
- Dimensions : 1.322 in L x 0.922 in W x 3.281 in H
- Weight : 5.19
