Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
IG2810

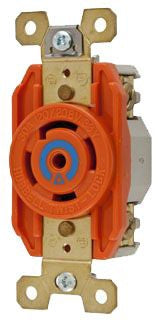

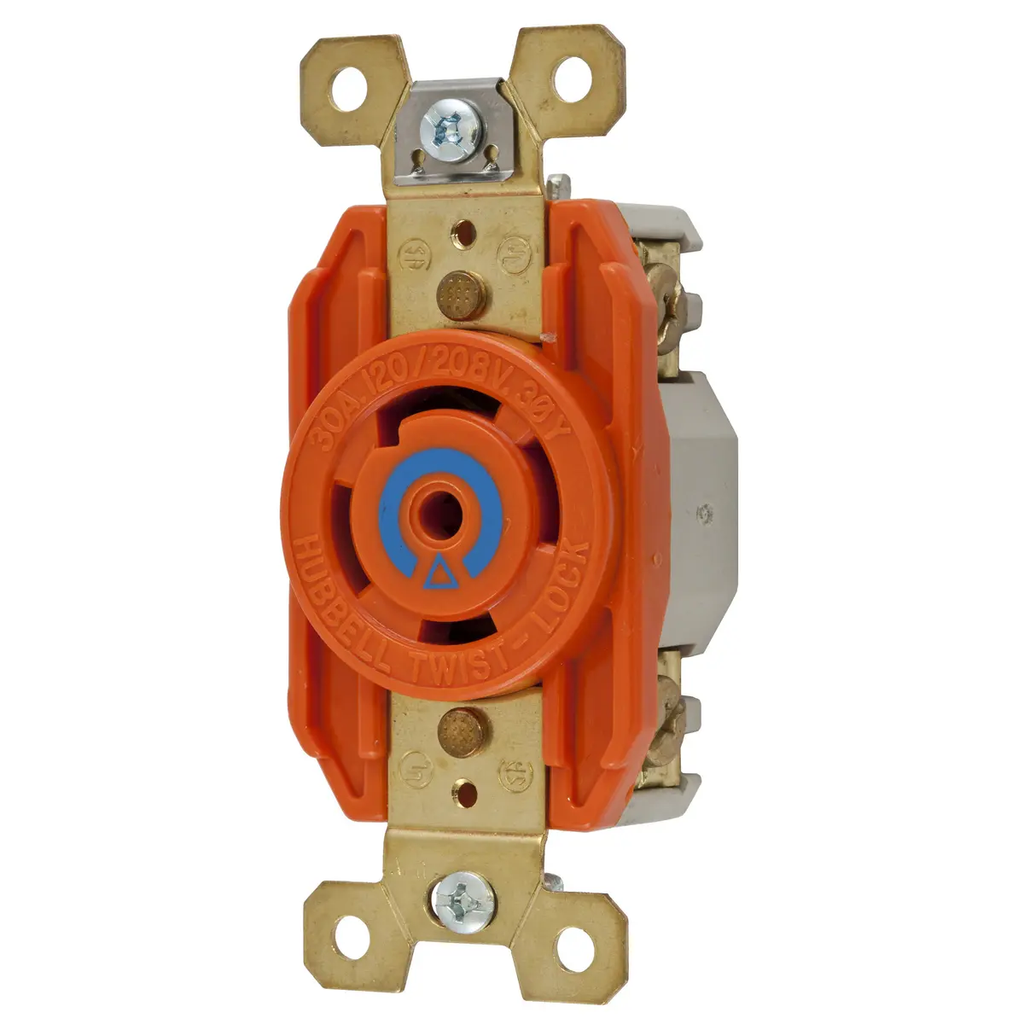

IG2810 is a Hubbell 30 Amp, 120/208 Volt, 4-pole, 5-wire isolated ground twist-lock receptacle designed for heavy-duty industrial applications.IG2810 features an orange nylon housing with brass contacts and a NEMA L21-30R configuration. It provides a clean, noise-free isolated ground by separating the ground contacts from the mounting strap and conventional grounding system. The device supports back and side wired screw terminals and is UL listed and CSA certified for safety and reliability.
- Amperage: 30A
- Voltage: 120/208V AC, 3-Phase WYE
- Poles/Wires: 4-Pole, 5-Wire Grounding
- NEMA Configuration: L21-30R
- Housing Material: Orange Nylon
- Contacts: Brass
- Mounting Type: Screw Mounting
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL Listed, CSA Certified
- Connectivity: Back and Side Wired Screw Terminals
- Insulation Barrier Construction for Isolated Ground
Specifications
- Part Number: IG2810
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 120/208Y
Product Data
- UPC : 783585872506
- GTIN : 00783585872506
- Dimensions : 3.28 x 1.67 x 1.31 3.28 x 1.67 x 1.31 in 3.281 in H x 1.672 in W x 1.313 in D
- Weight : 0.3
