Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
IG2610

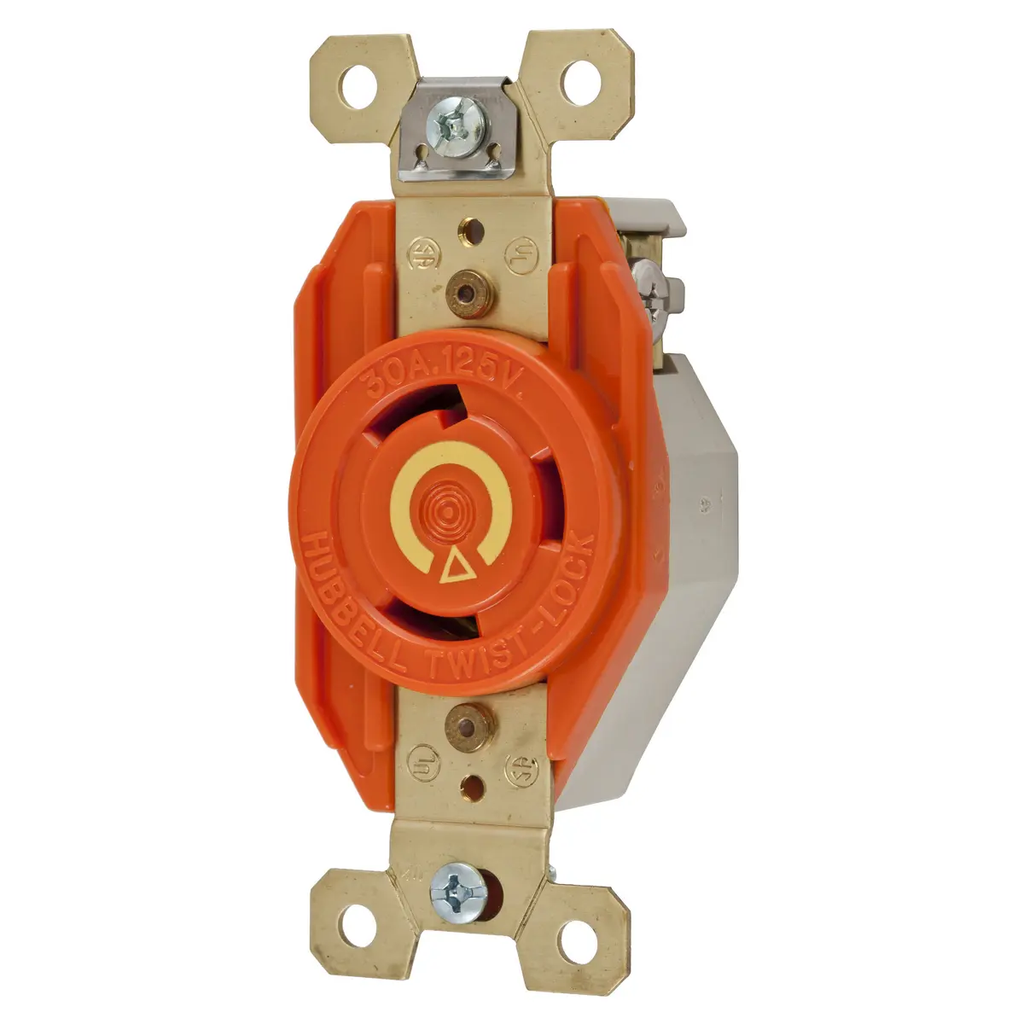

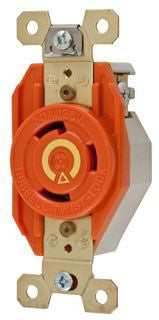

IG2610 is a Hubbell Twist-Lock Isolated Ground Industrial Flush Receptacle rated for 30A, 125V, 2-Pole, 3-Wire grounding applications. This receptacle is designed for heavy-duty industrial environments where a clean, noise-free ground is essential. The IG2610 features insulation barrier construction that isolates the ground contact from the mounting strap, ensuring a dedicated ground path. The face is made of high-impact, abuse-resistant nylon, and the mounting and grounding system is all-brass for lower resistance and greater corrosion resistance. It supports both back and side wiring with screw terminals, and is compatible with #16 AWG to #8 AWG solid or stranded copper wire.
- Amperage Rating: 30A
- Voltage Rating: 125V AC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Mounting
- Interrupt Rating: Full rated current
- Series/Frame: Twist-Lock
- Dielectric Strength: 2,000V minimum
- Terminal Accommodation: #16 AWG to #8 AWG
- Face Material: Nylon
- Base Material: Reinforced Thermoplastic Polyester
- Certifications: UL 498, CSA C22.2 No.42, Fed.Spec. W-C-596
Specifications
- Part Number: IG2610
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585872308
- GTIN : 00783585872346
- Dimensions : 1.703 in W x 1.313 in D 3.28 x 1.7 x 1.31 in
- Weight : 0.3
