Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
IG2310

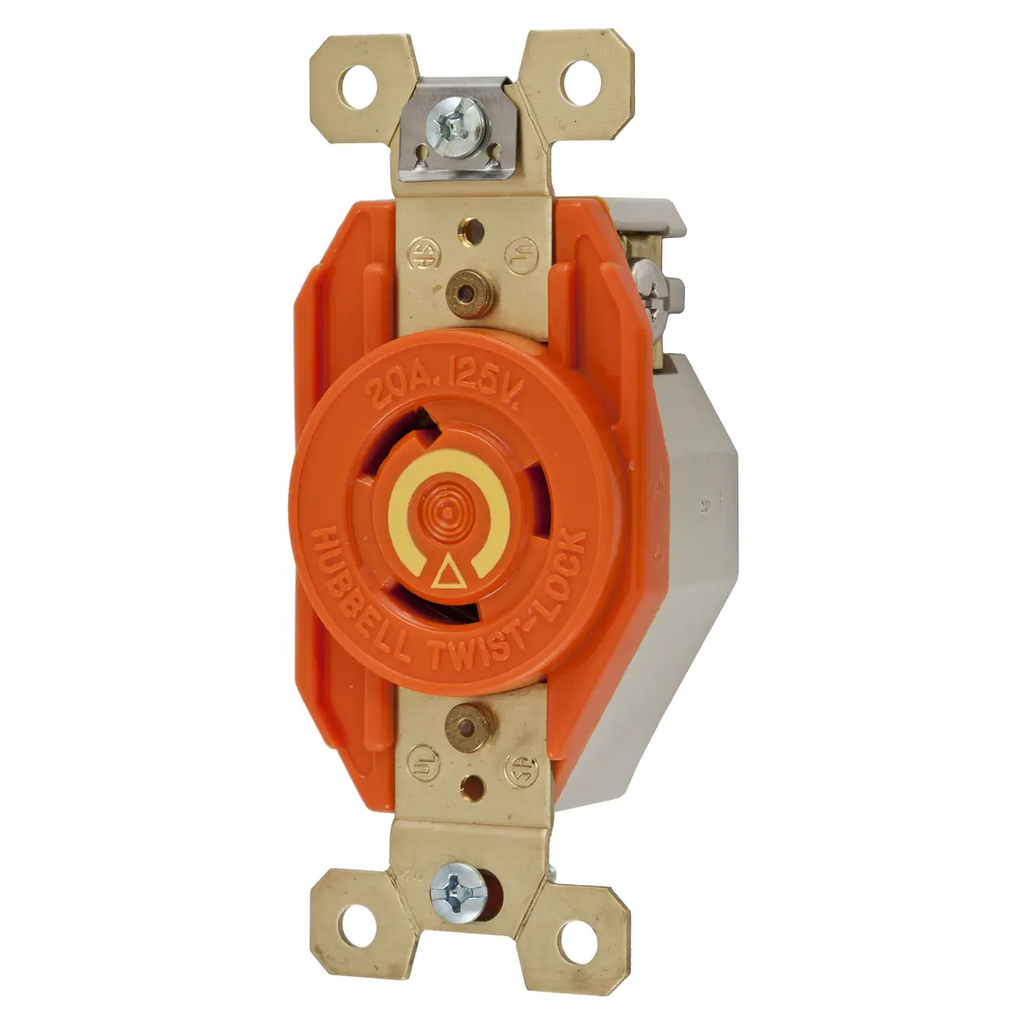

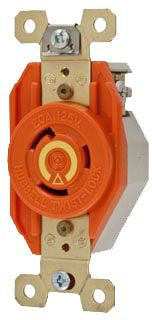

IG2310 is a Hubbell isolated ground twist-lock single receptacle designed for secure and reliable electrical connections in industrial applications.This receptacle features a 20 ampere rating, 125 volts, and a 2-pole 3-wire configuration with a NEMA L5-20R designation. It is constructed with brass contacts and a thermoplastic nylon body for durability. The device supports wire sizes from 16 AWG to 8 AWG and is suitable for flush screw mounting. It is certified to withstand dielectric voltage of 2000V and is rated for current interrupting at full load. The receptacle is orange for easy identification and meets CSA C22.2 No.42 and UL standards.
- Key Specifications
- Amperage: 20A
- Voltage: 125V
- Poles/Wires: 2-Pole, 3-Wire
- NEMA Rating: L5-20R
- Mounting Type: Flush Screw Mount
- Material: Thermoplastic Nylon
- Contact Material: Brass
- Wire Size Range: 16 AWG to 8 AWG
- Dielectric Voltage Withstand: 2000V
- Certifications: CSA C22.2 No.42, UL Listed
- Color: Orange
- Phase: Single
Specifications
- Part Number: IG2310
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585872209
- GTIN : 00783585872209
- Dimensions : 3.275 in H x 1.7 in W x 1.237 in D 3.28 x 1.24 x 1.7 in
- Weight : 5.19
