Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
IDSR350

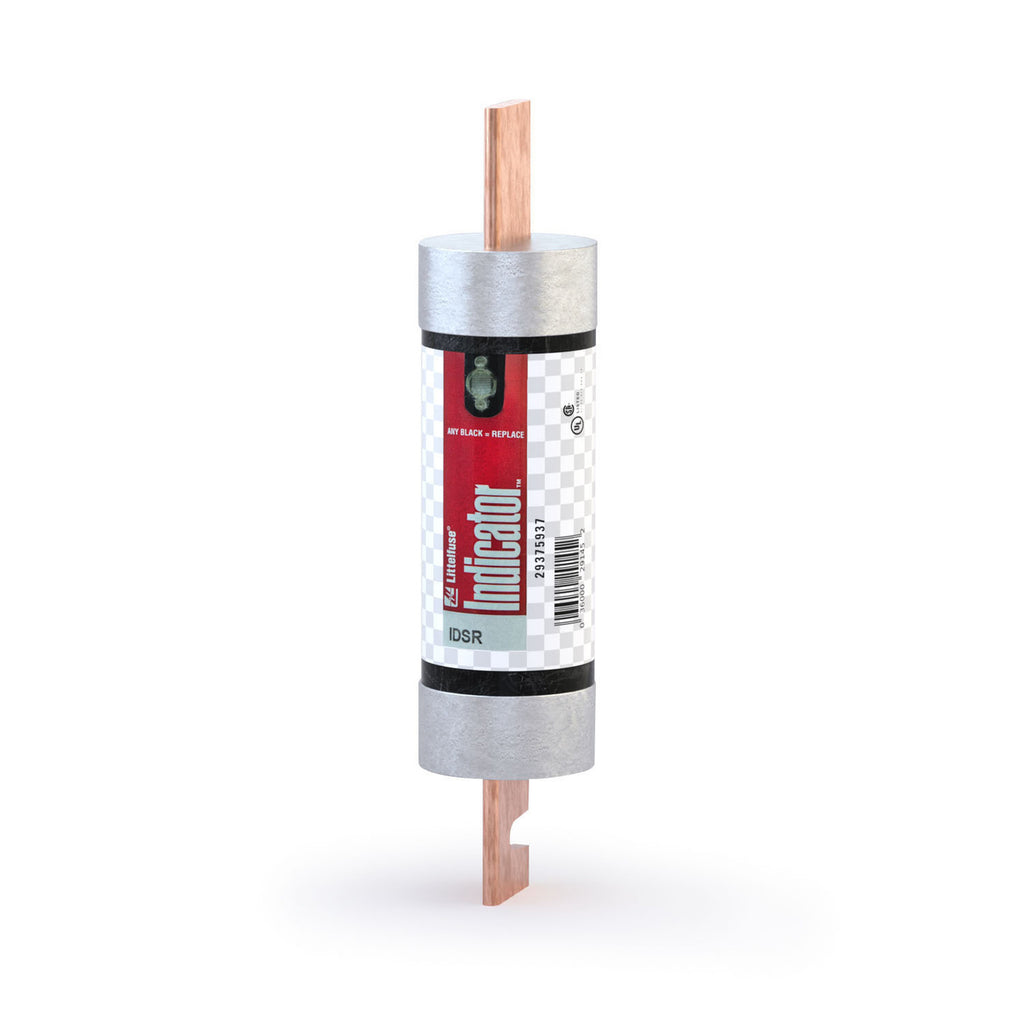

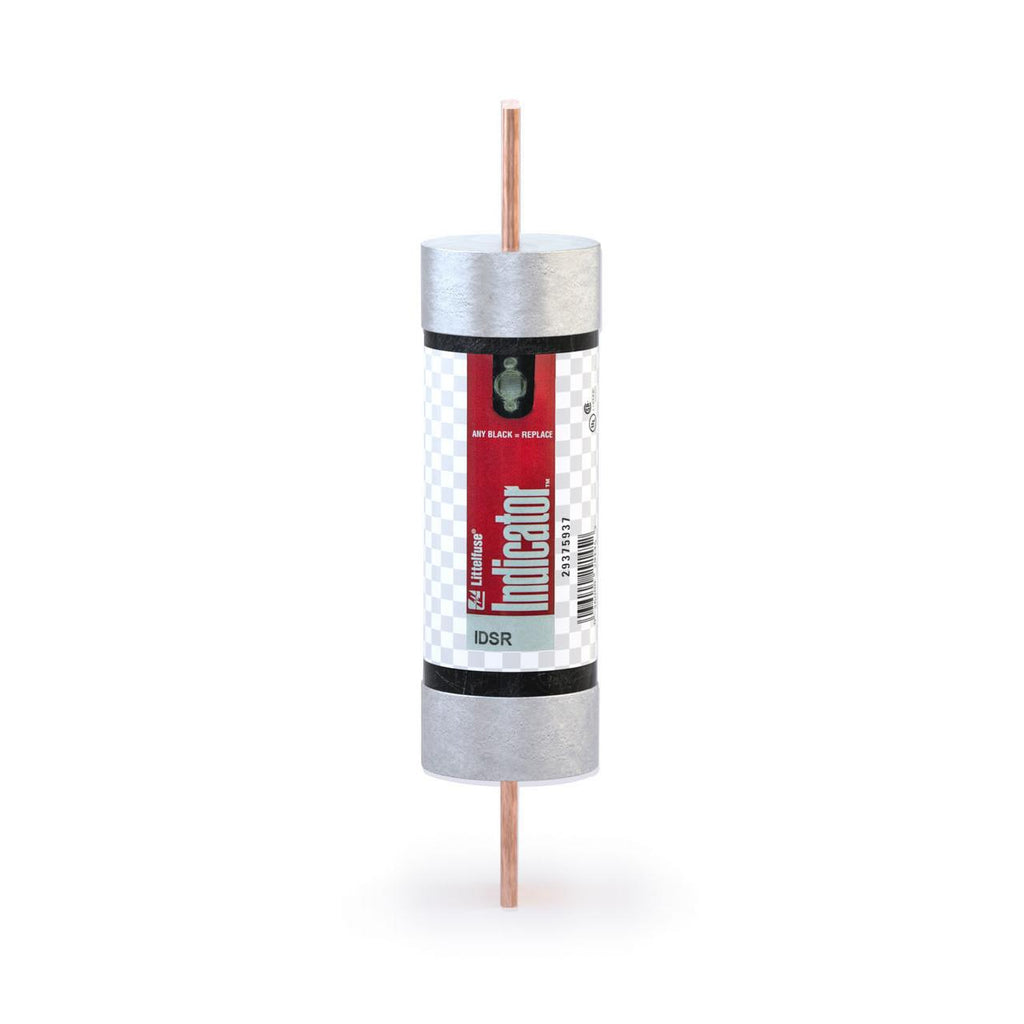

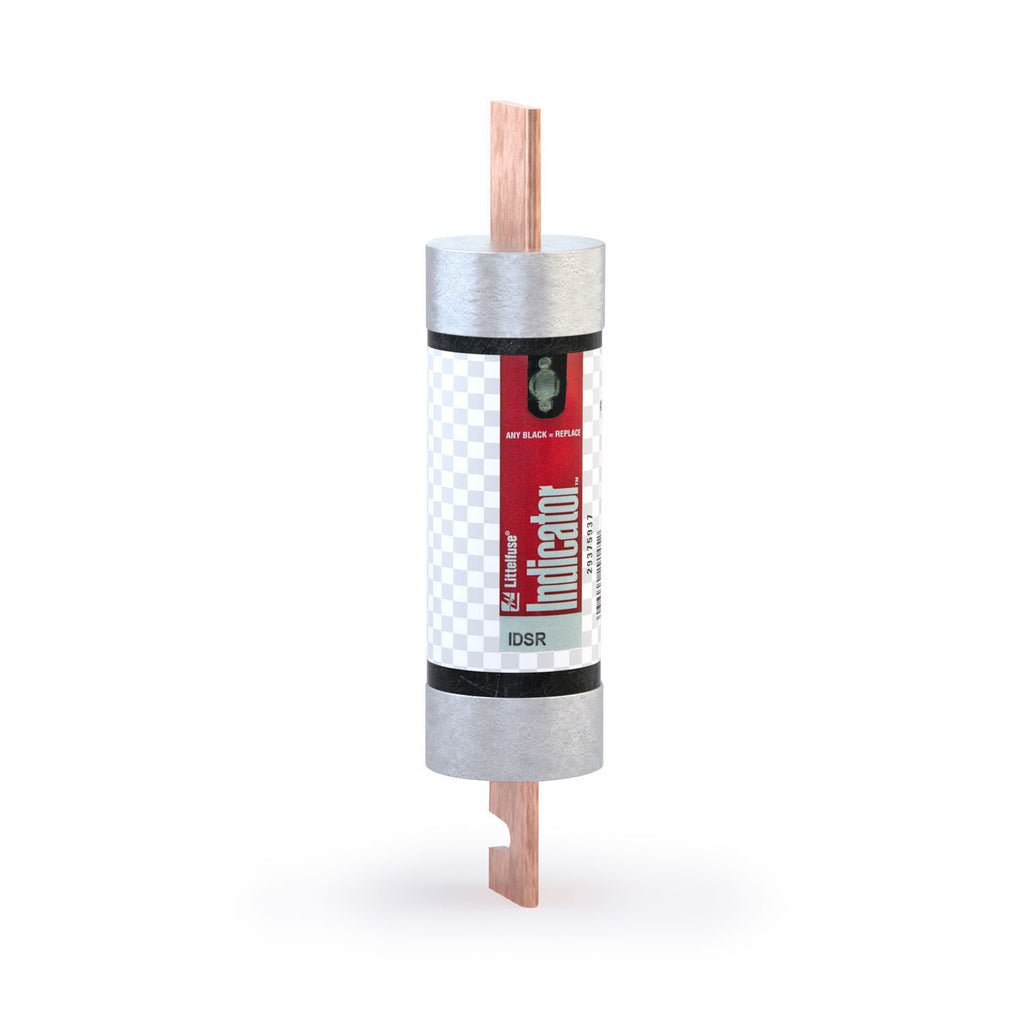

IDSR350 is a Littelfuse Class RK5 dual element time-delay fuse designed for reliable circuit protection in industrial and electrical applications. This fuse features a visual blown fuse indication window for easy identification and fast replacement.Engineered for both AC and DC circuits, the IDSR350 offers current limiting performance and advanced short-circuit and overload protection. Its robust design supports a wide range of uses including motors, transformers, solenoids, and solar inverters. The fuse is built to meet UL 248-12 standards and is suitable for general purpose power distribution systems.
- Amperage: 350A
- Voltage Rating: 600V AC/DC
- Fuse Type: Class RK5
- Series/Frame: IDSR
- Response Time: Time Delay (Dual Element)
- Interrupt Rating: 200 kA AC, 20 kA DC
- Visual Indication: Yes
- Current Limiting: Yes
- Standards: UL 248-12, UL 198M, CSA, CE
- Physical Size: 2 19/32" x 11 5/8"
- Mounting Type: Cylindrical Body
- Applications: Industrial, Solar, Motors, Transformers
Specifications
- Part Number: IDSR350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801581
- GTIN : 00079458015812
- Country of Origin : Mexico
- Weight : 1
- Certification : Standard 248-12 UL Listed/CSA
