Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
IDSR30

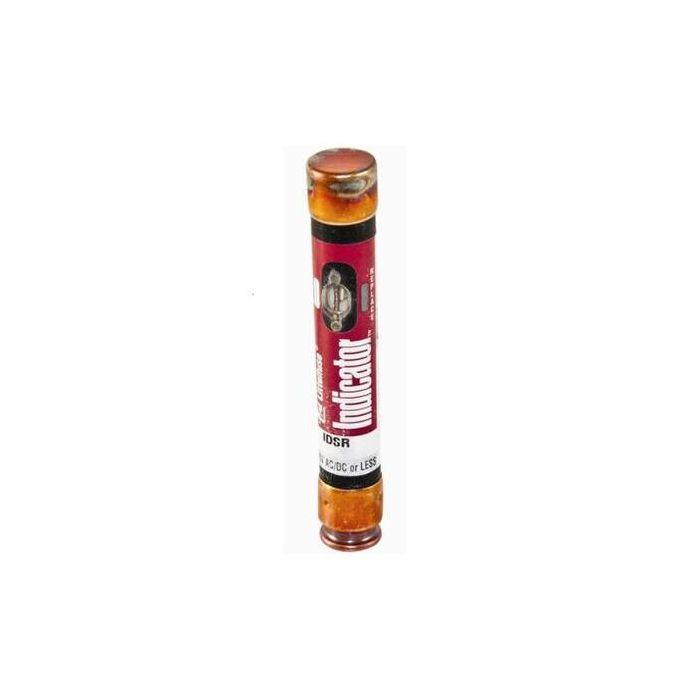

IDSR30 is a Littelfuse 30 Amp, 600 Volt AC/DC Class RK5 time delay fuse with visual blown fuse indication.
This IDSR30 fuse features a dual-element, current-limiting design providing excellent short-circuit and overload protection for general purpose circuits. It has a cartridge-style construction with a patented solid-state indicator that turns black when blown for fast identification. Rated for 600 V AC and DC operation, it offers a high interrupting rating of 200kA AC and 20kA DC, meeting UL 248-12 Class RK5 standards. This fuse is ideal for DC circuits, solar inverters, motors, transformers, and fluorescent lighting applications.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK5
- Time Delay: Dual Element
- Interrupting Rating: 200kA AC, 20kA DC
- Visual Blown Fuse Indicator
- Mounting Type: Cartridge
- Current Limiting Design
- Applicable Standards: UL 248-12 Class RK5
- Frame Type: IDSR
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: IDSR30
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : IDSR
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Connection : Ferrule Rejection
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 007945801580
- GTIN : 00079458015805
- Weight : 5
