Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

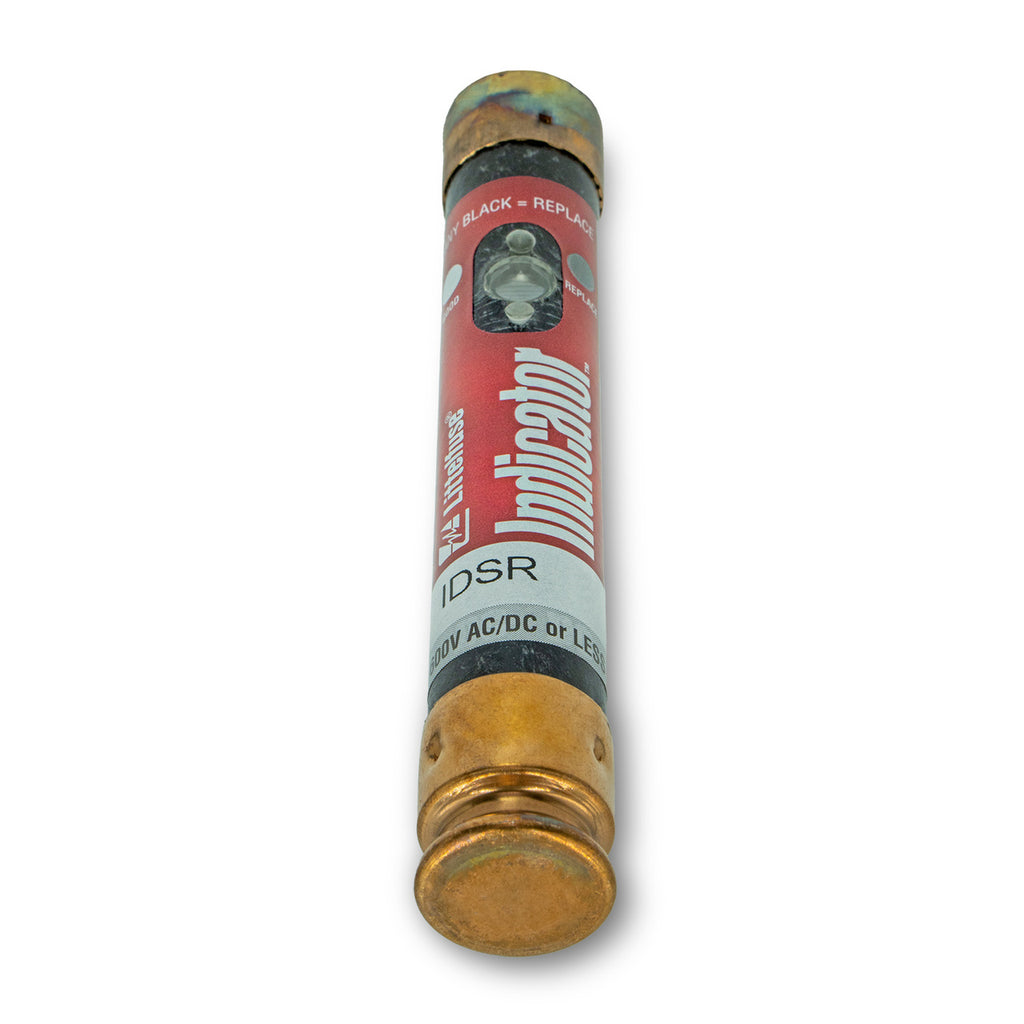

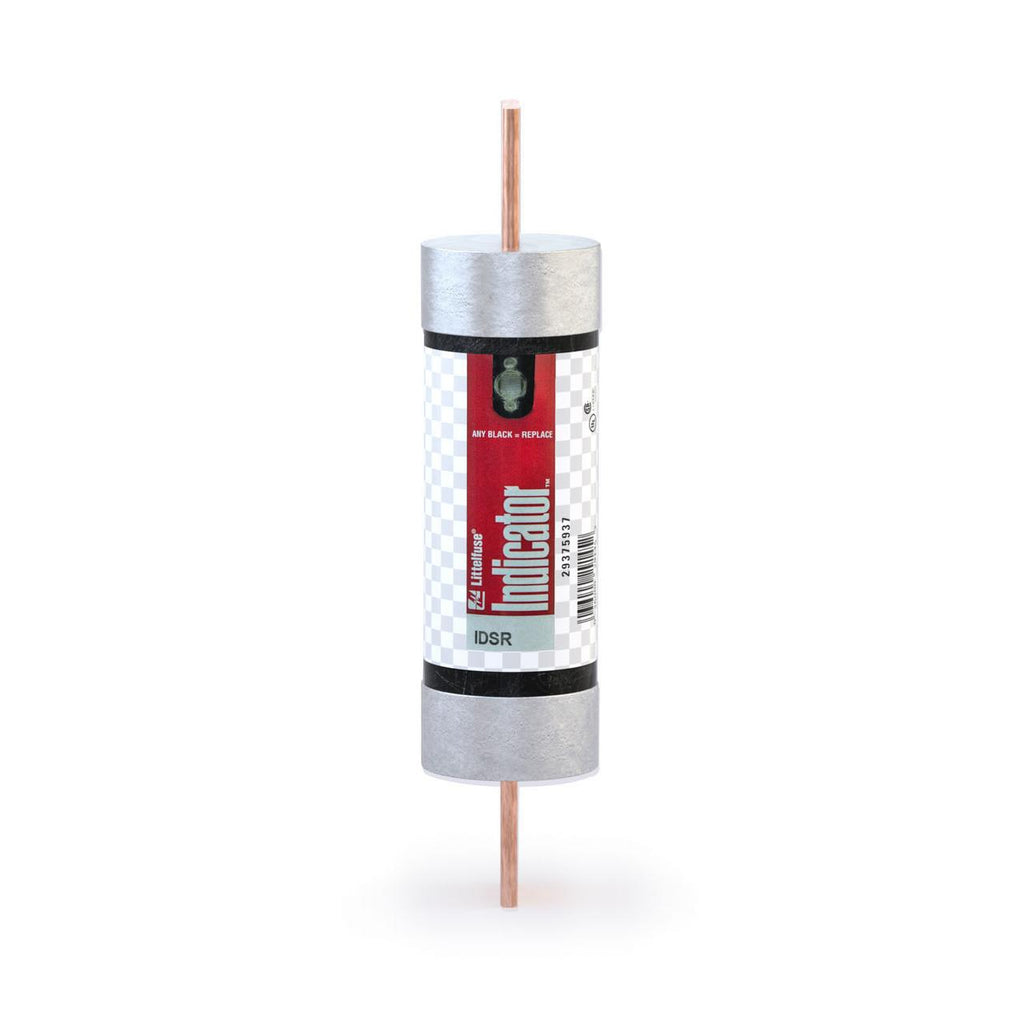

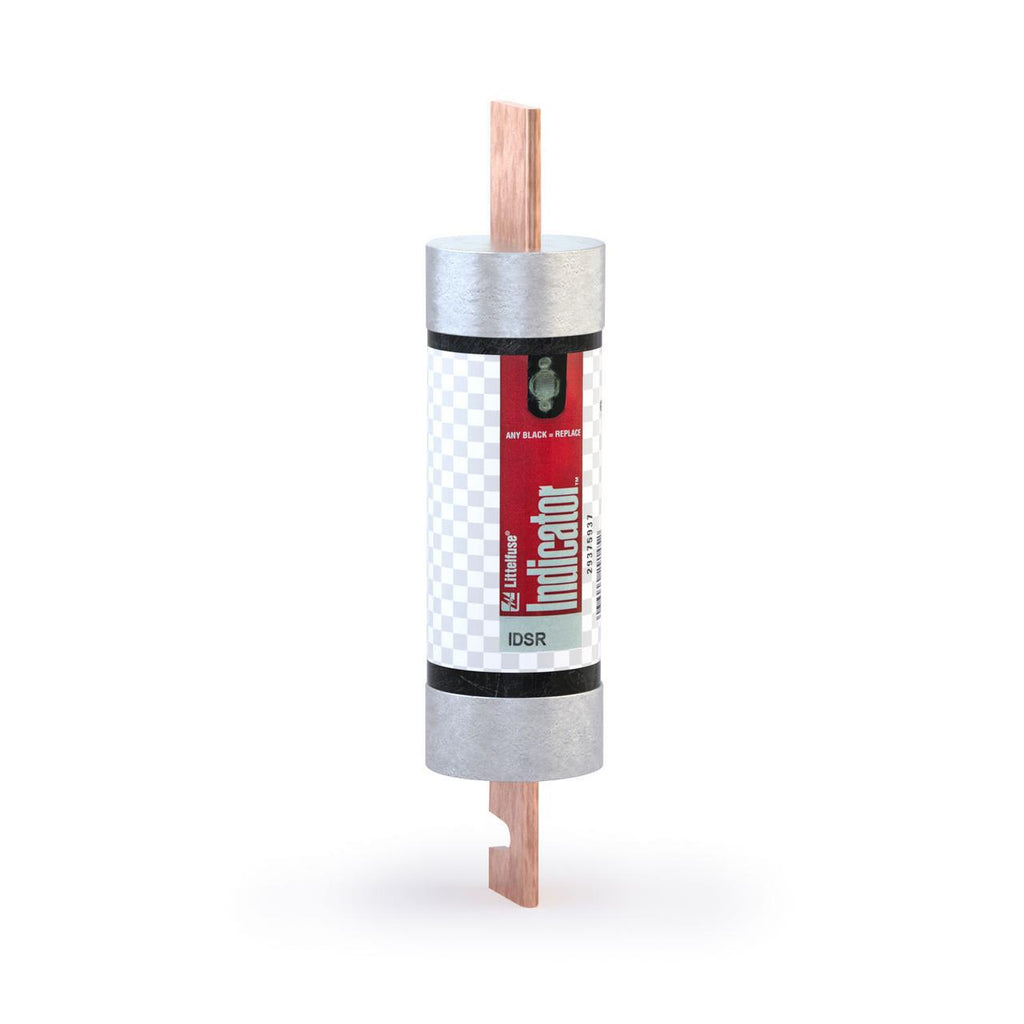

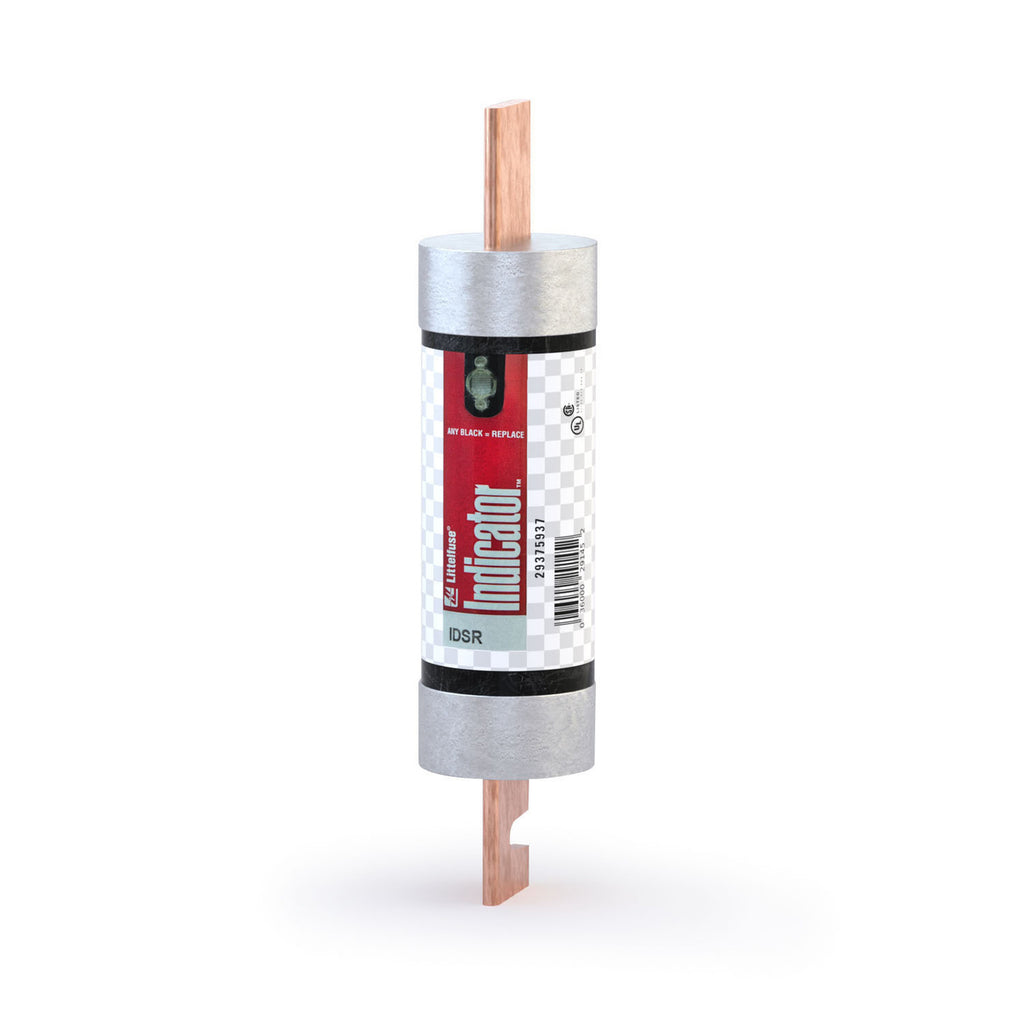

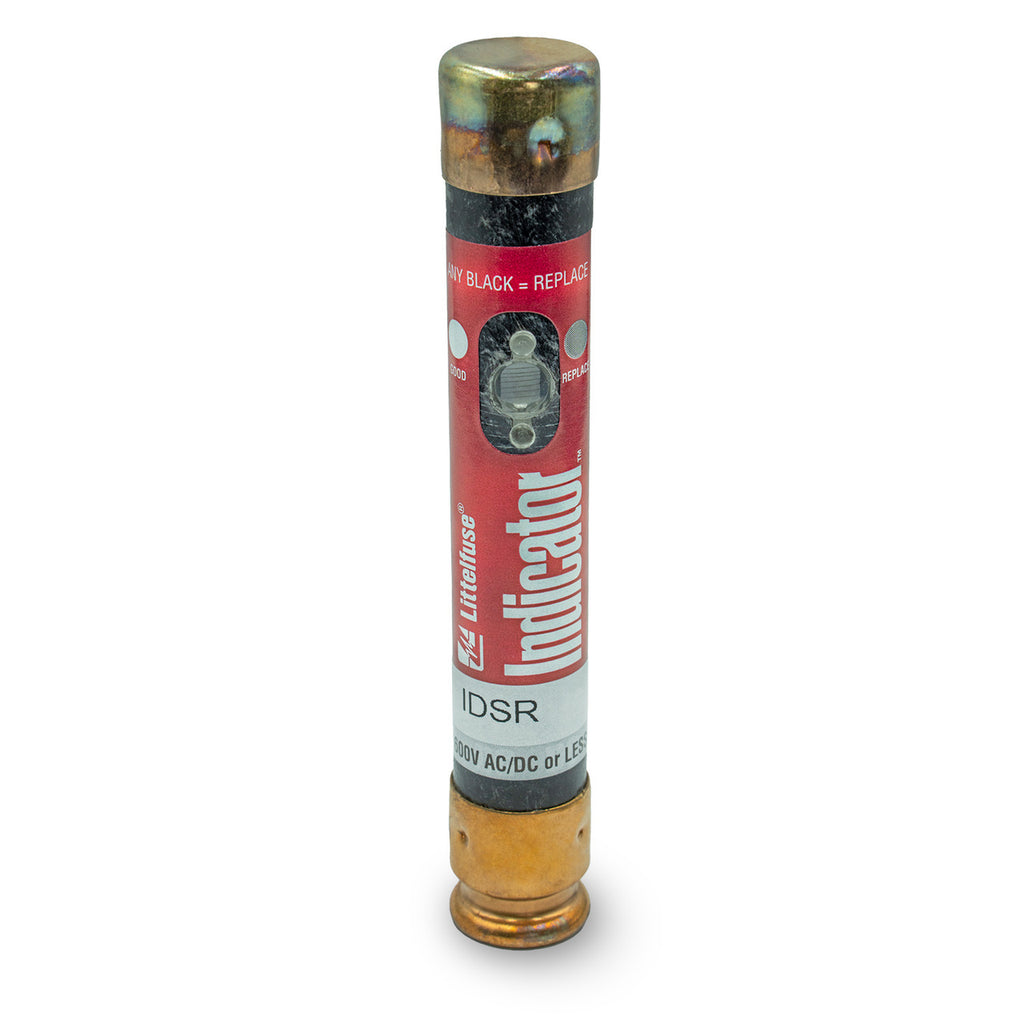

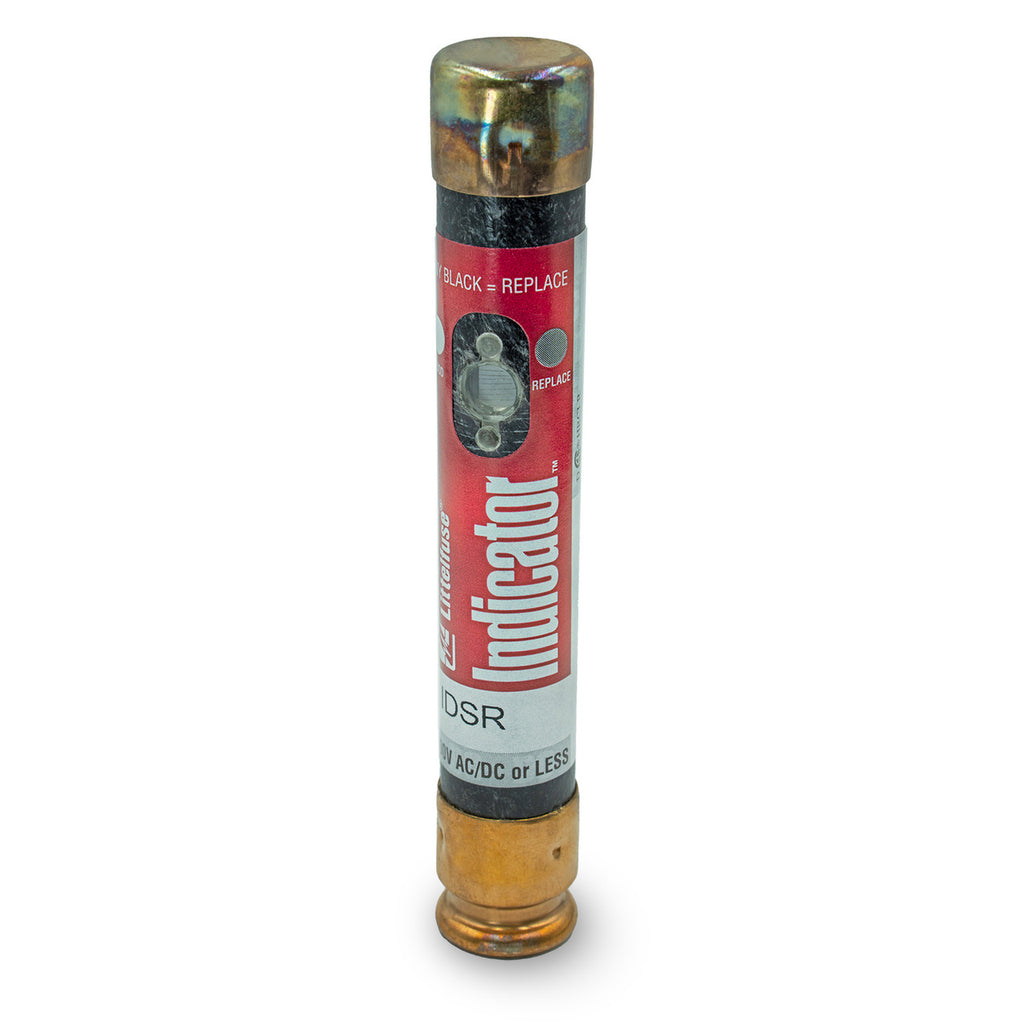

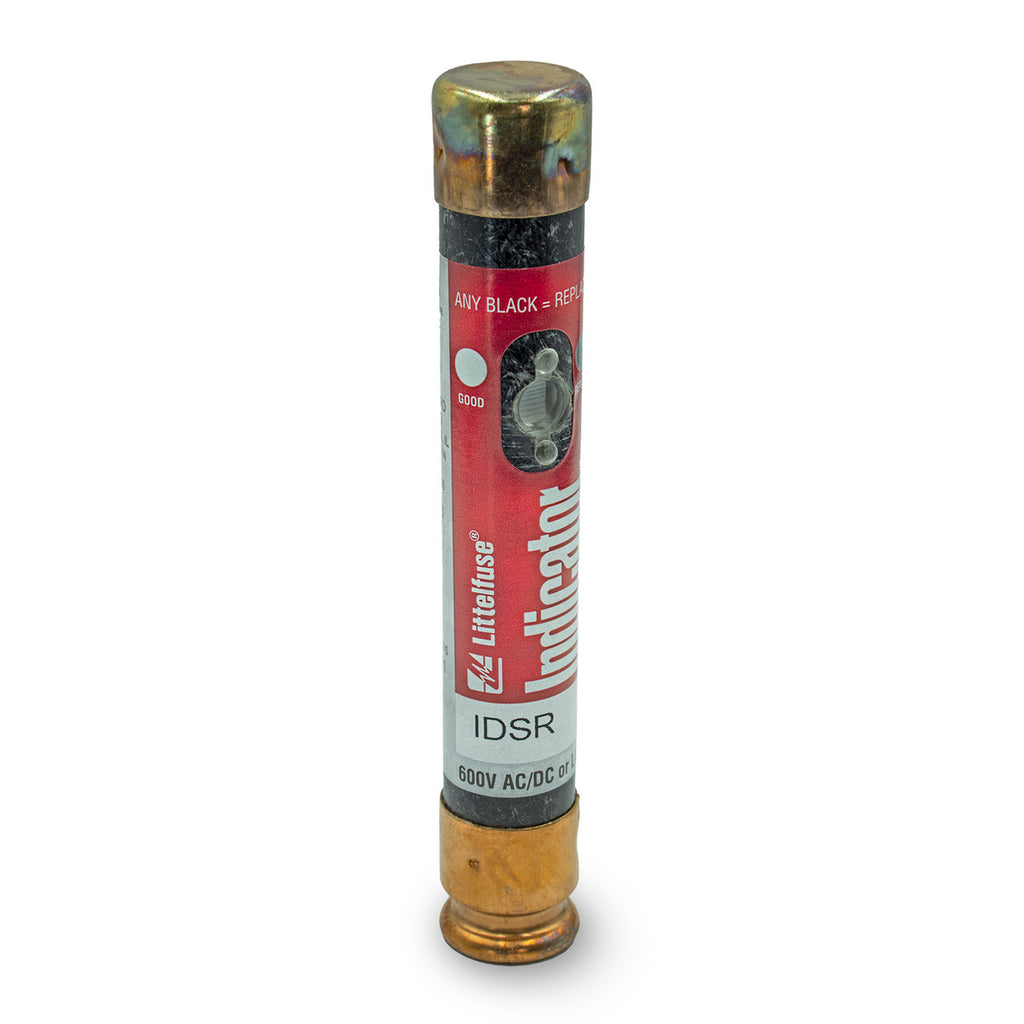

IDSR225
IDSR225 is a Littelfuse Class RK5 fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a dual-element, time-delay design with visual blown fuse indication for easy troubleshooting. The IDSR225 fuse offers current limiting performance and is suitable for use in DC circuits, solar inverters, motors, transformers, and lighting systems. Its knife-blade-style construction ensures secure mounting and dependable operation.
- 225A continuous current rating
- 600VAC/600VDC voltage rating
- Class RK5 fuse type
- Time-delay, dual-element design
- Visual blown fuse indication
- Interrupting rating: 200kAIC at 600VAC
- Interrupting rating: 20kA at 600VDC
- UL 248-12 listed
- Knife-blade mounting style
- Current limiting protection
- Applications: DC circuits, solar inverters, motors, transformers, solenoids, lighting
Specifications
- Part Number: IDSR225
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801578
- GTIN : 00079458015782
- Country of Origin : Mexico
- Weight : 3.48
- Certification : Standard 248-12 UL Listed/CSA
