Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

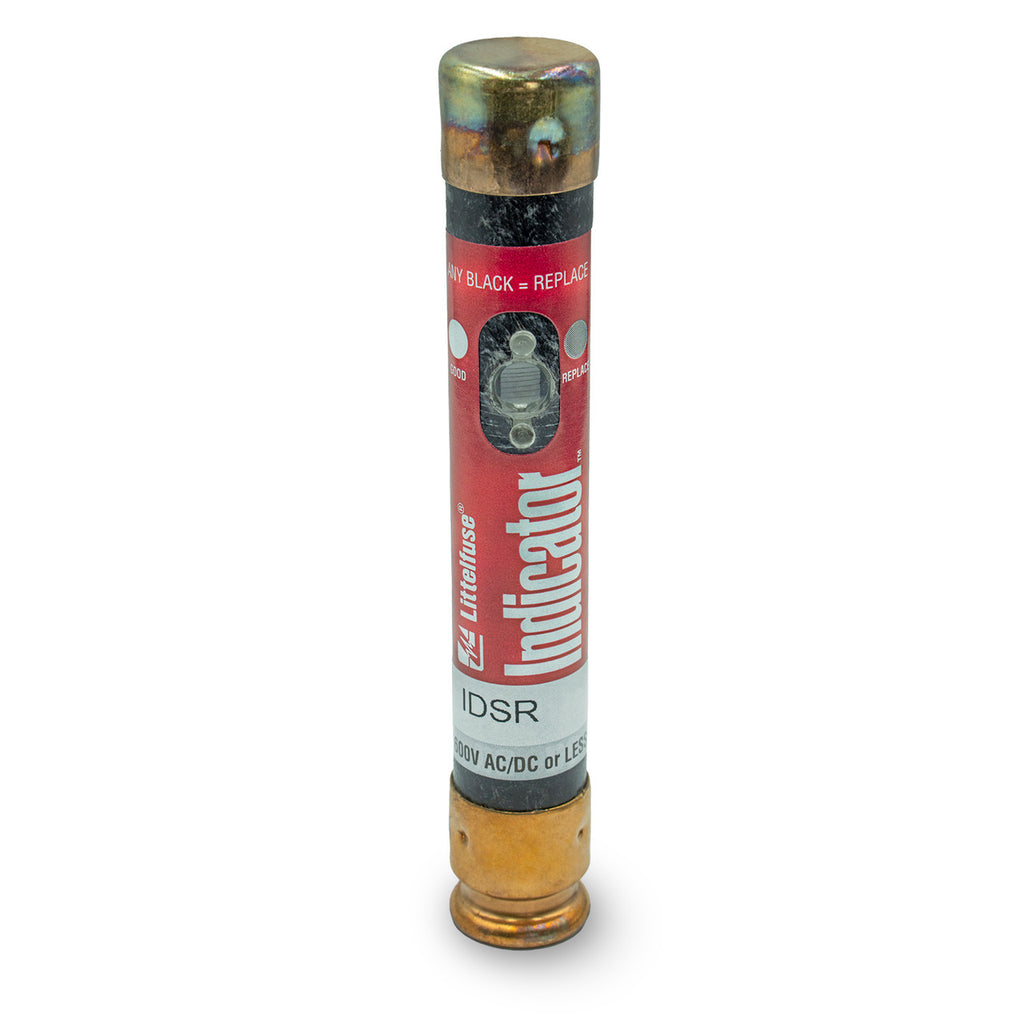

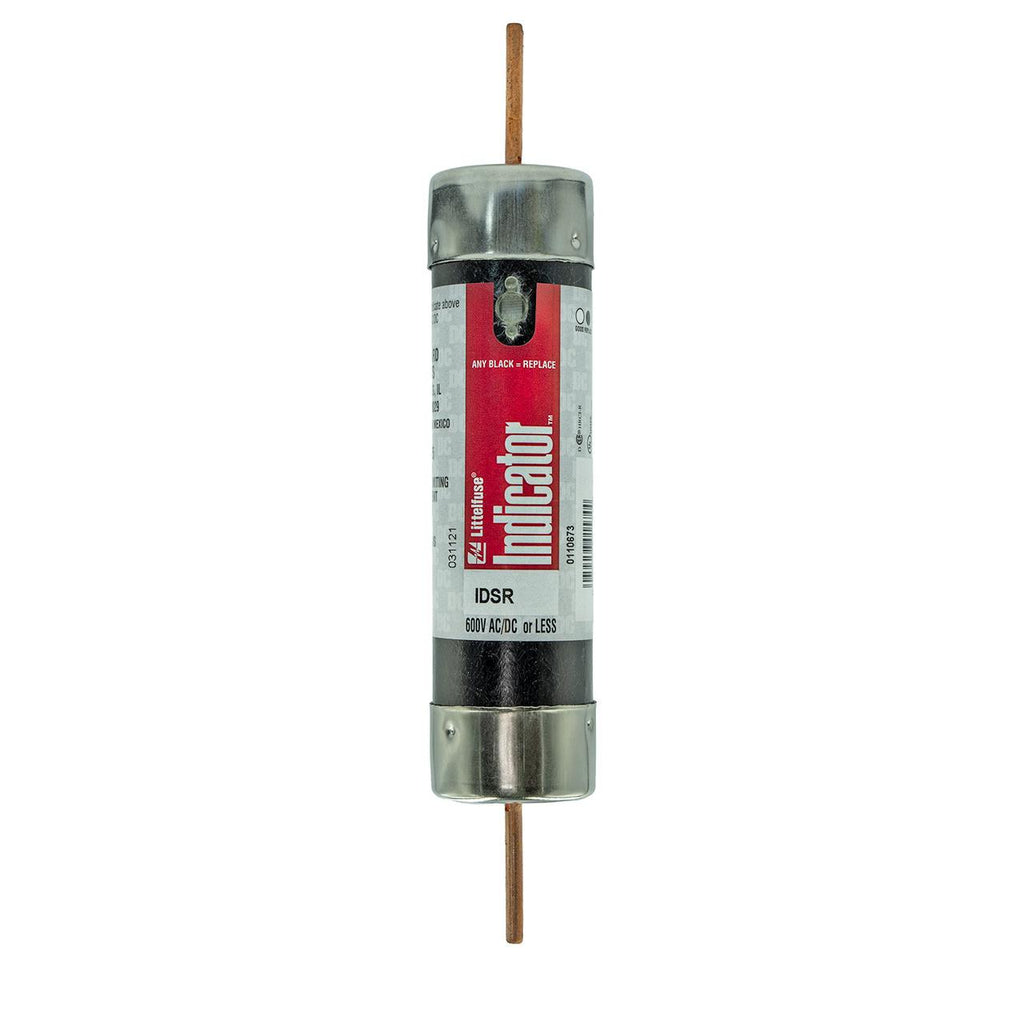

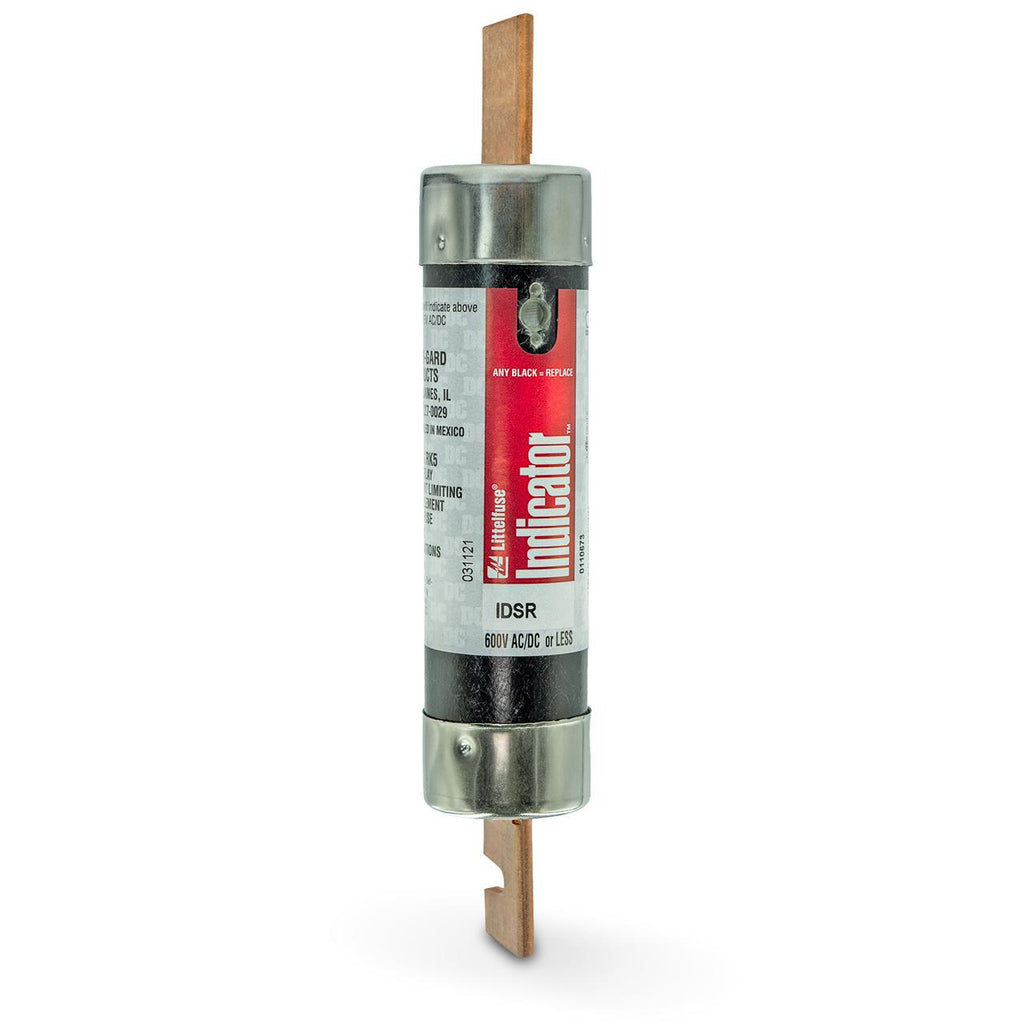

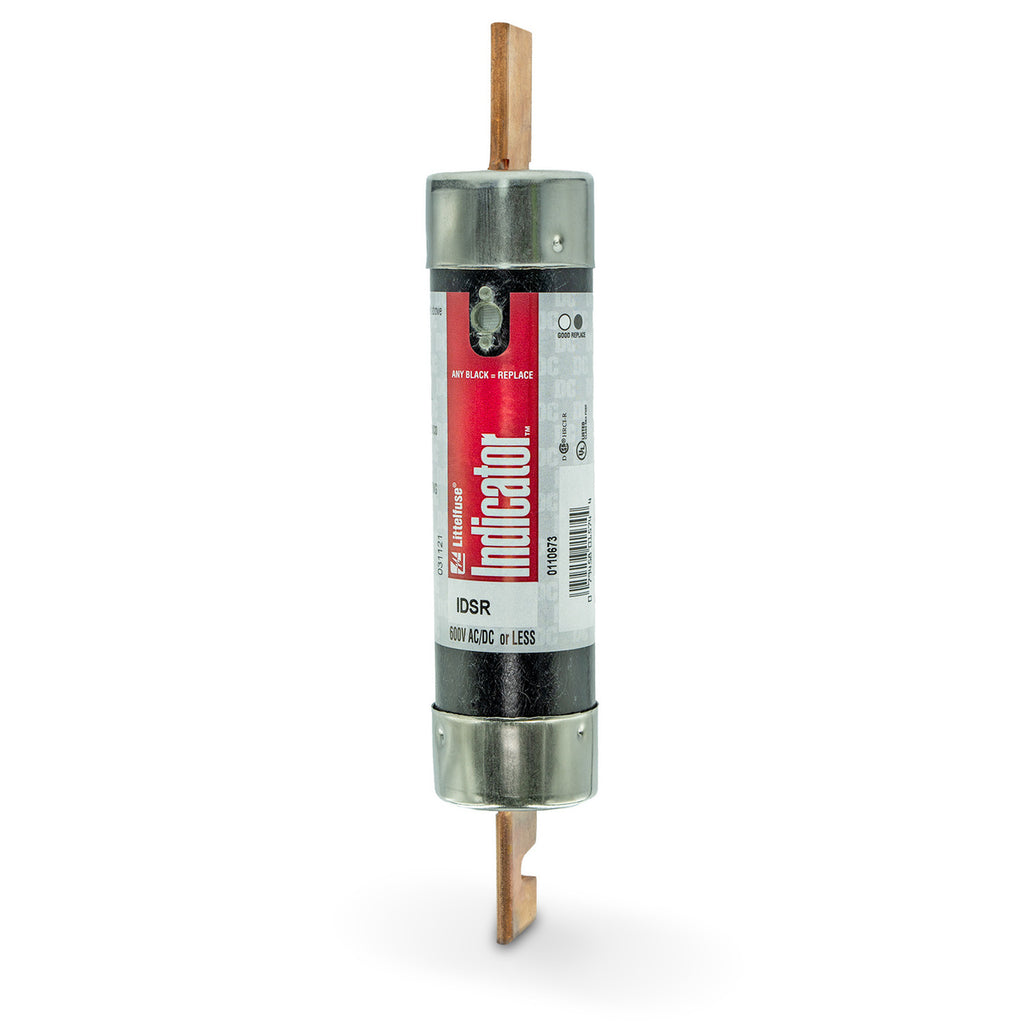

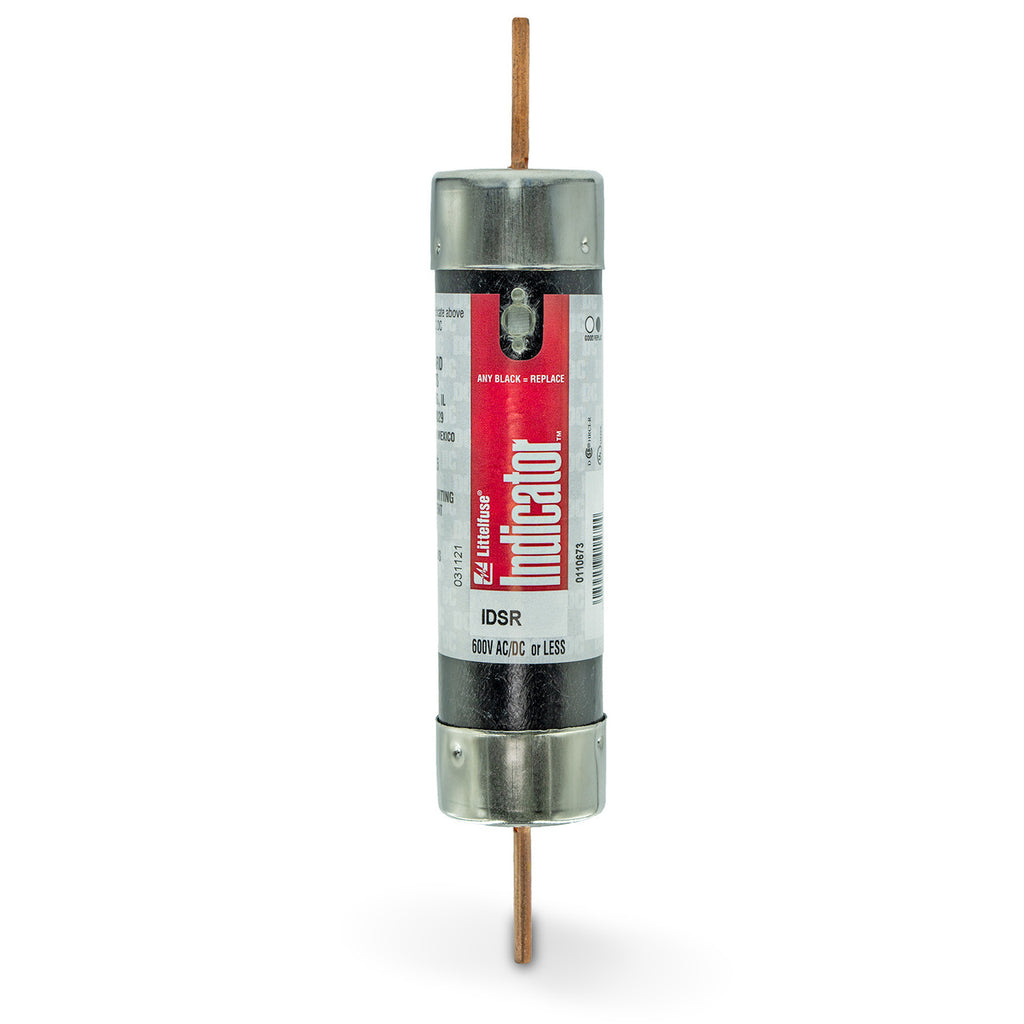

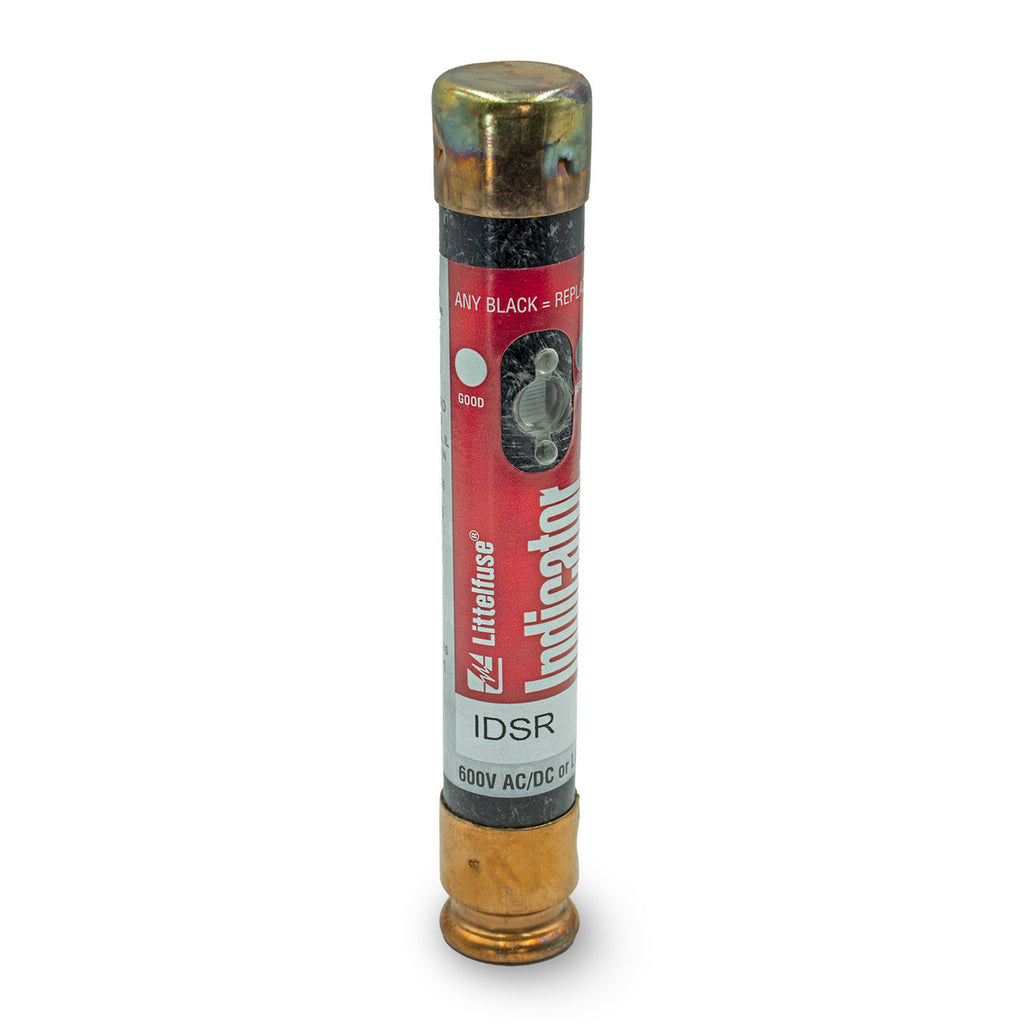

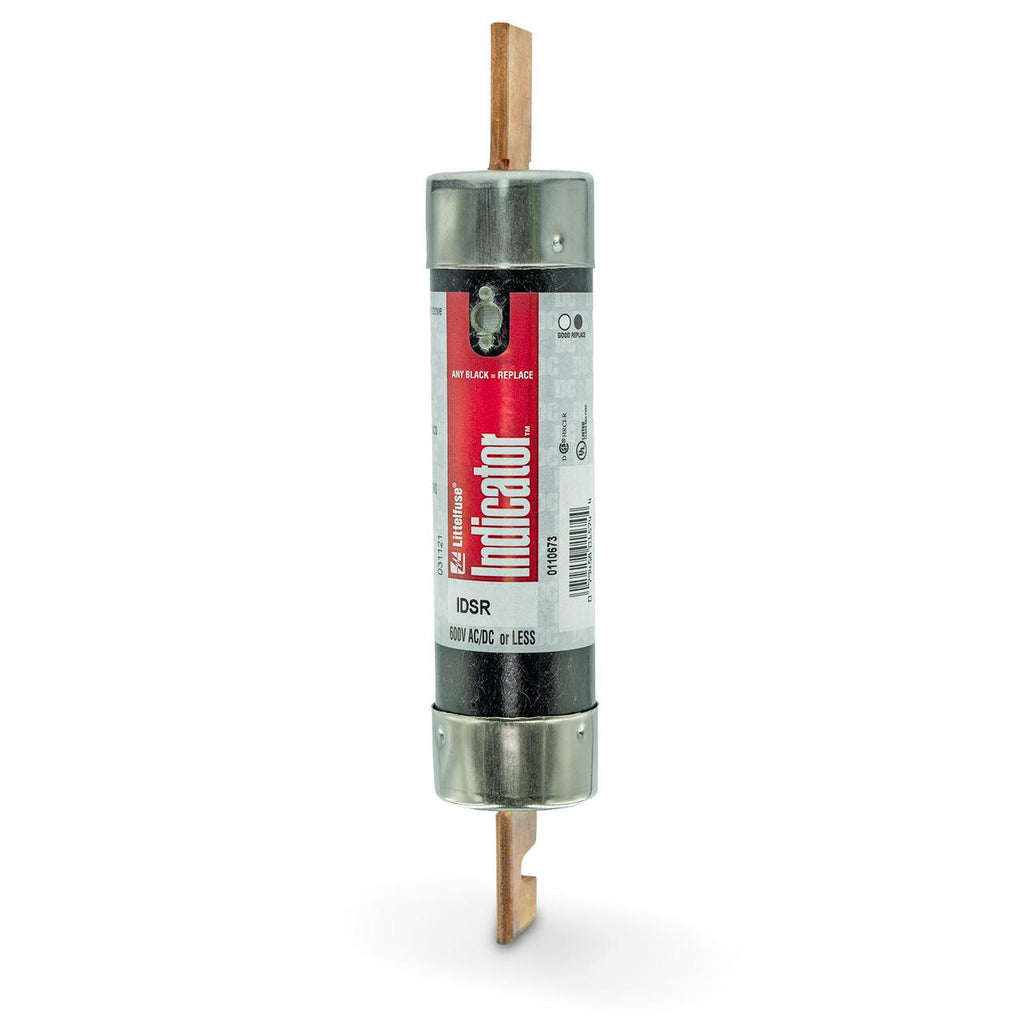

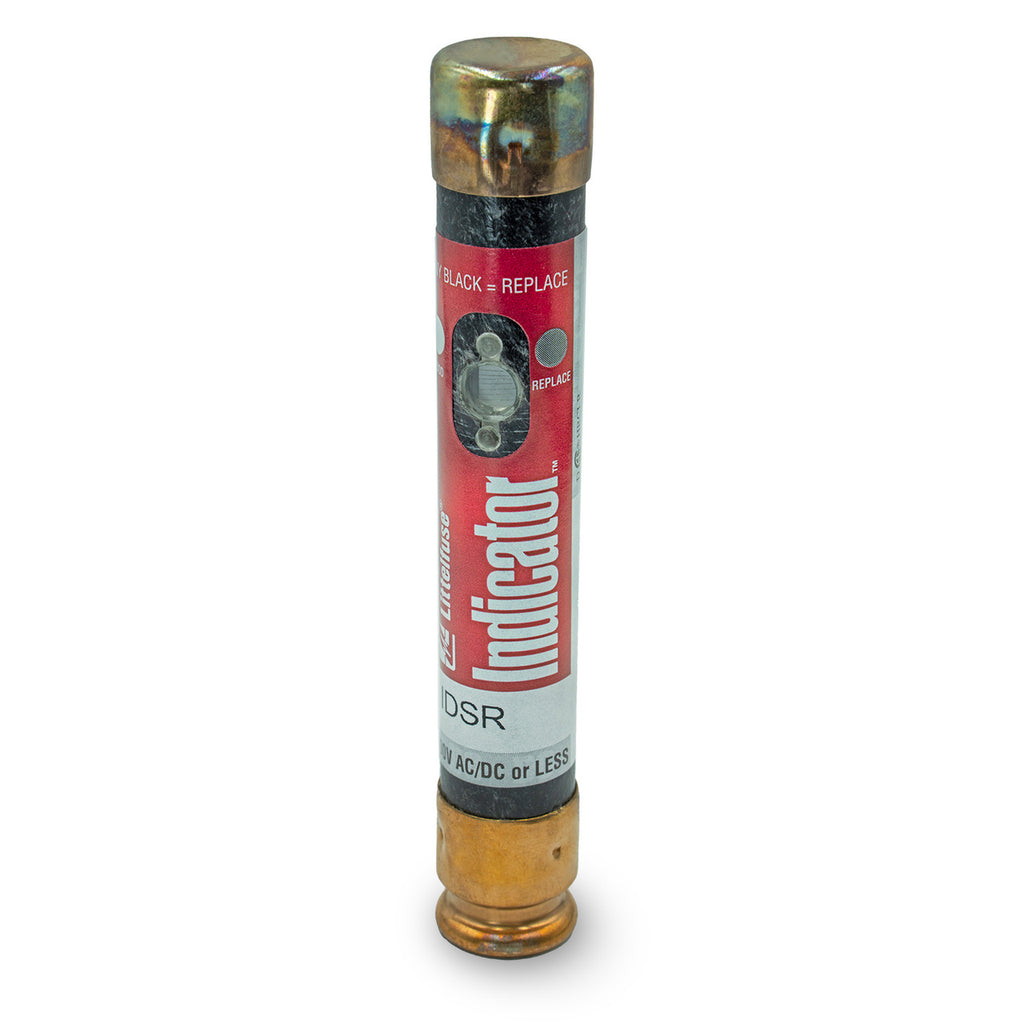

IDSR200

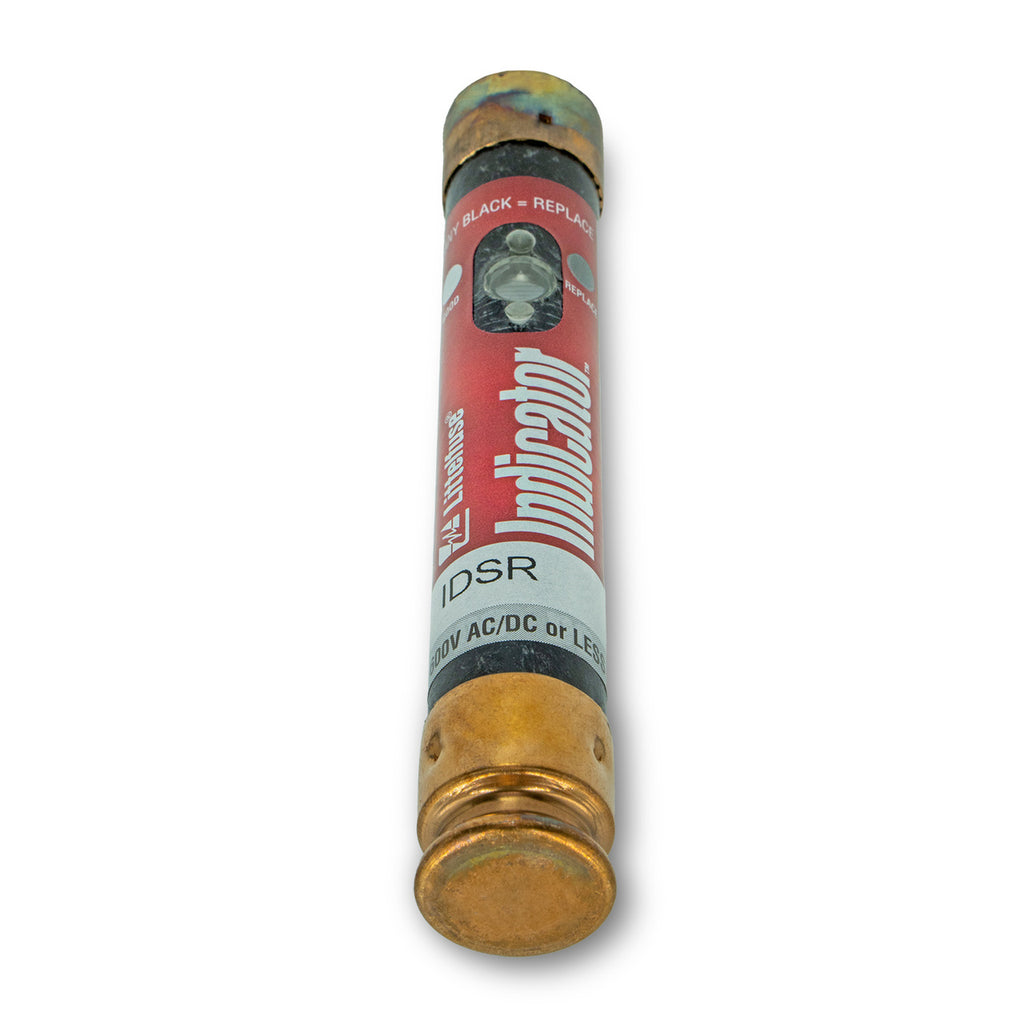

IDSR200 is a 200 amp, 600 volt AC/DC Class RK5 time delay fuse from Littelfuse designed for reliable overcurrent protection.
This fuse features a dual-element, current-limiting design with a knife-blade mounting style. It provides a 200,000 amp interrupting rating at 600 VAC and 20,000 amps at 600 VDC, making it suitable for a wide range of DC and AC applications including solar inverters, motors, transformers, and fluorescent lighting. The fuse is UL 248-12 Class RK5 certified and includes an indicator for fuse status.
- Amperage: 200 A
- Voltage Rating: 600 V AC/DC
- Class: RK5
- Fuse Type: Time Delay, Dual Element
- Interrupt Rating: 200 kA AC, 20 kA DC
- Mounting Type: Knife Blade
- Length: 9 5/8 inches
- Diameter: 1 27/32 inches
- UL Certified: UL 248-12
- Applications: DC circuits, solar inverters, motors, transformers, fluorescent lighting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: IDSR200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801577
- GTIN : 00079458015775
- Country of Origin : Mexico
- Dimensions : x 9 5/8 in x
- Weight : 1.41
- Certification : CSA, cUL, UL
