IDSR175 - Littelfuse 175A 600V Class RK5 Time Delay Fuse with Indicator

IDSR175

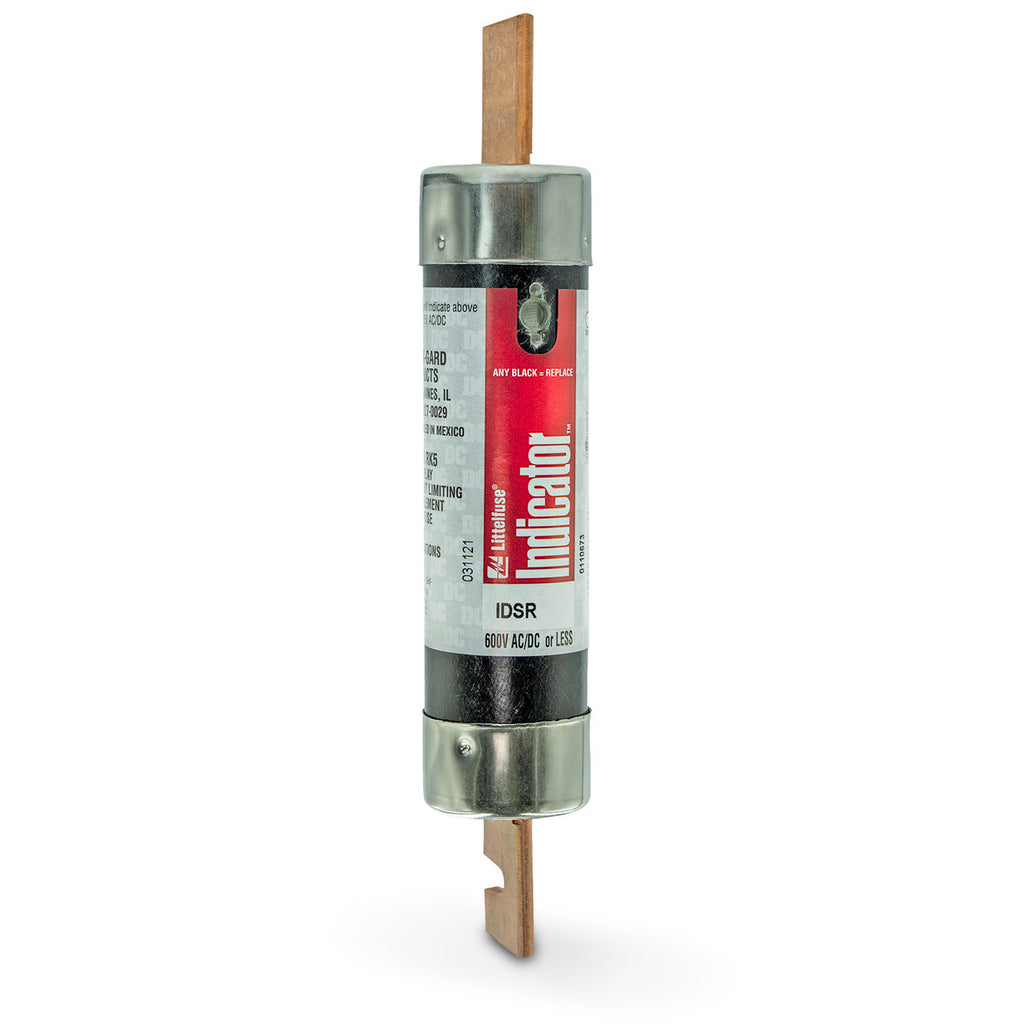

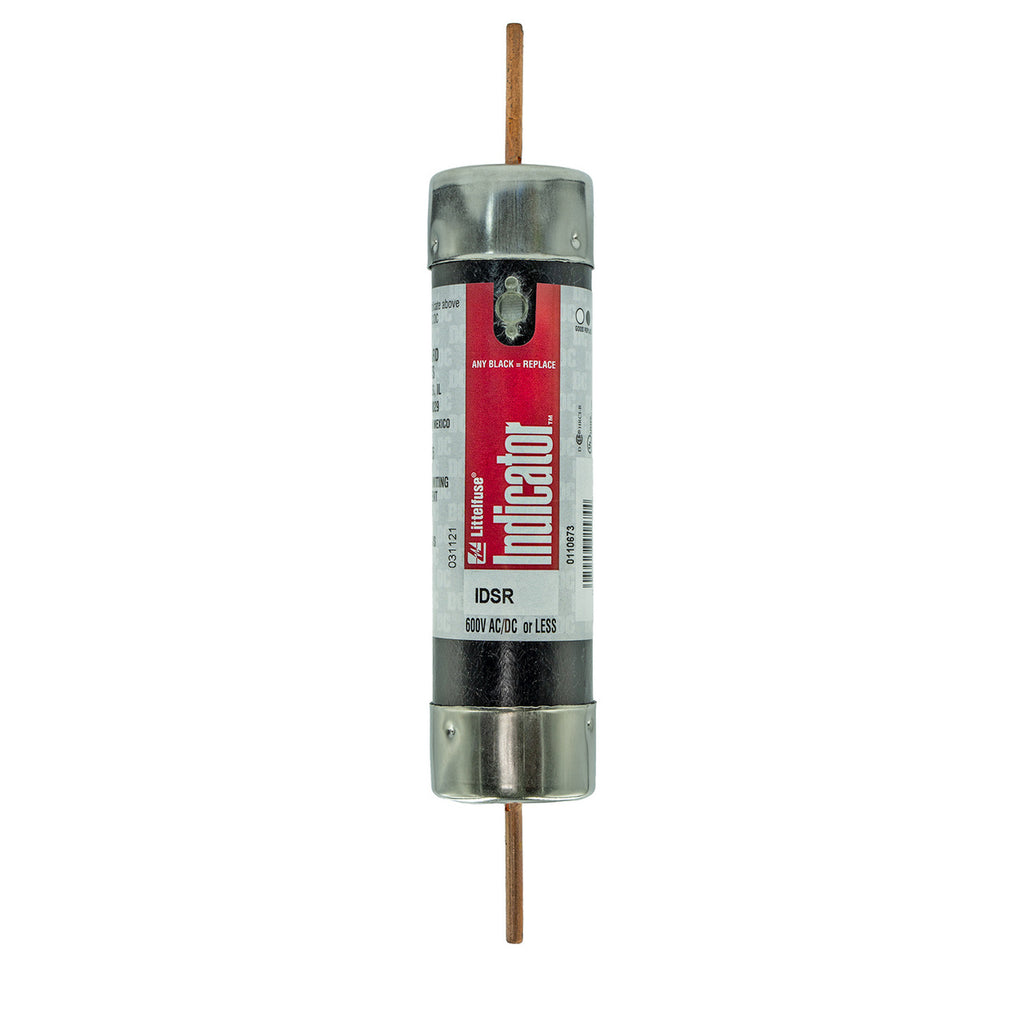

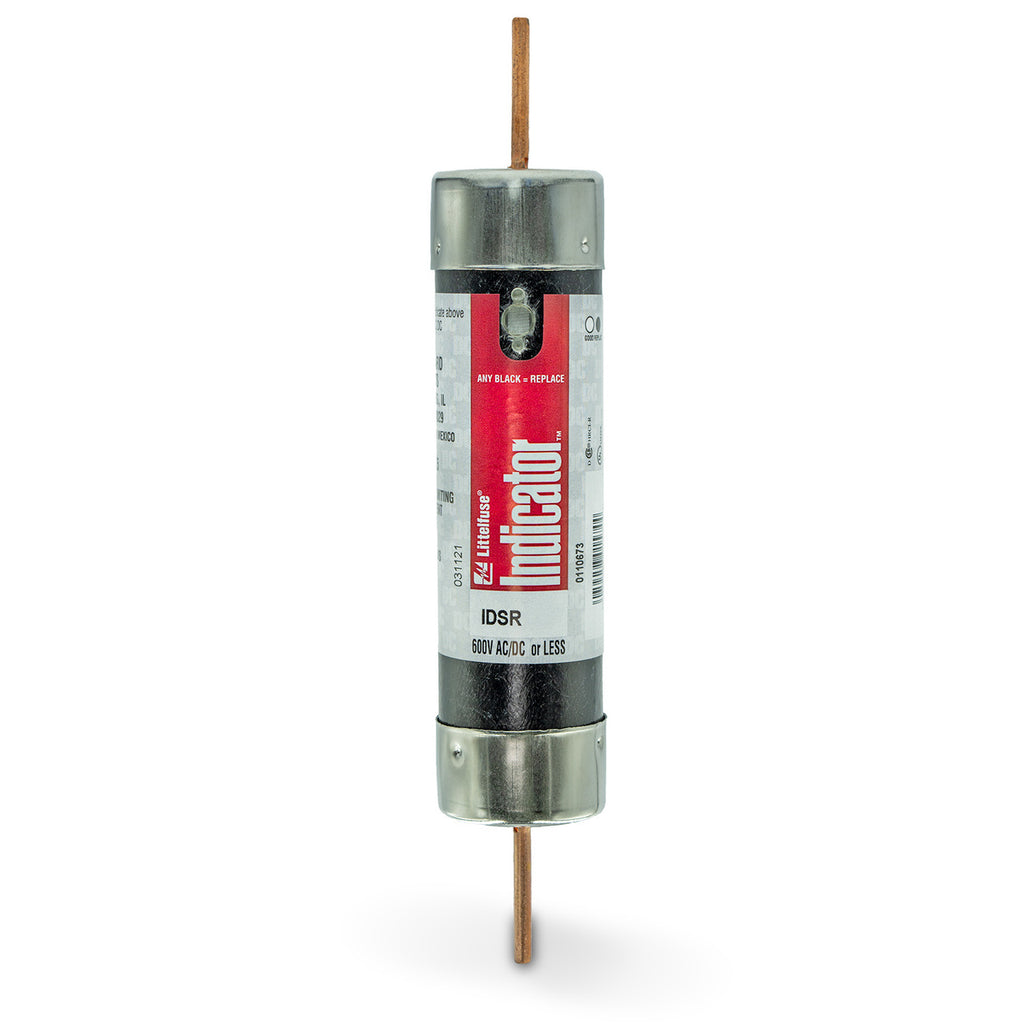

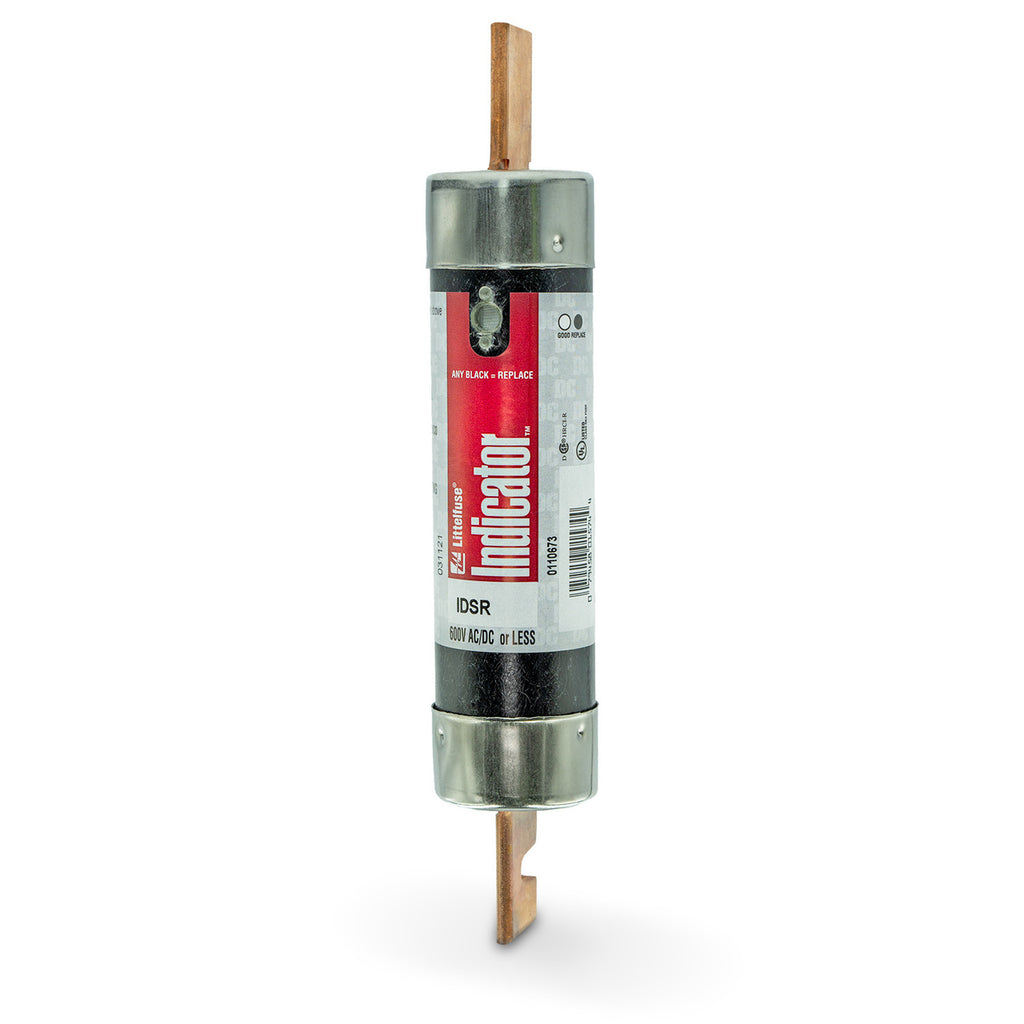

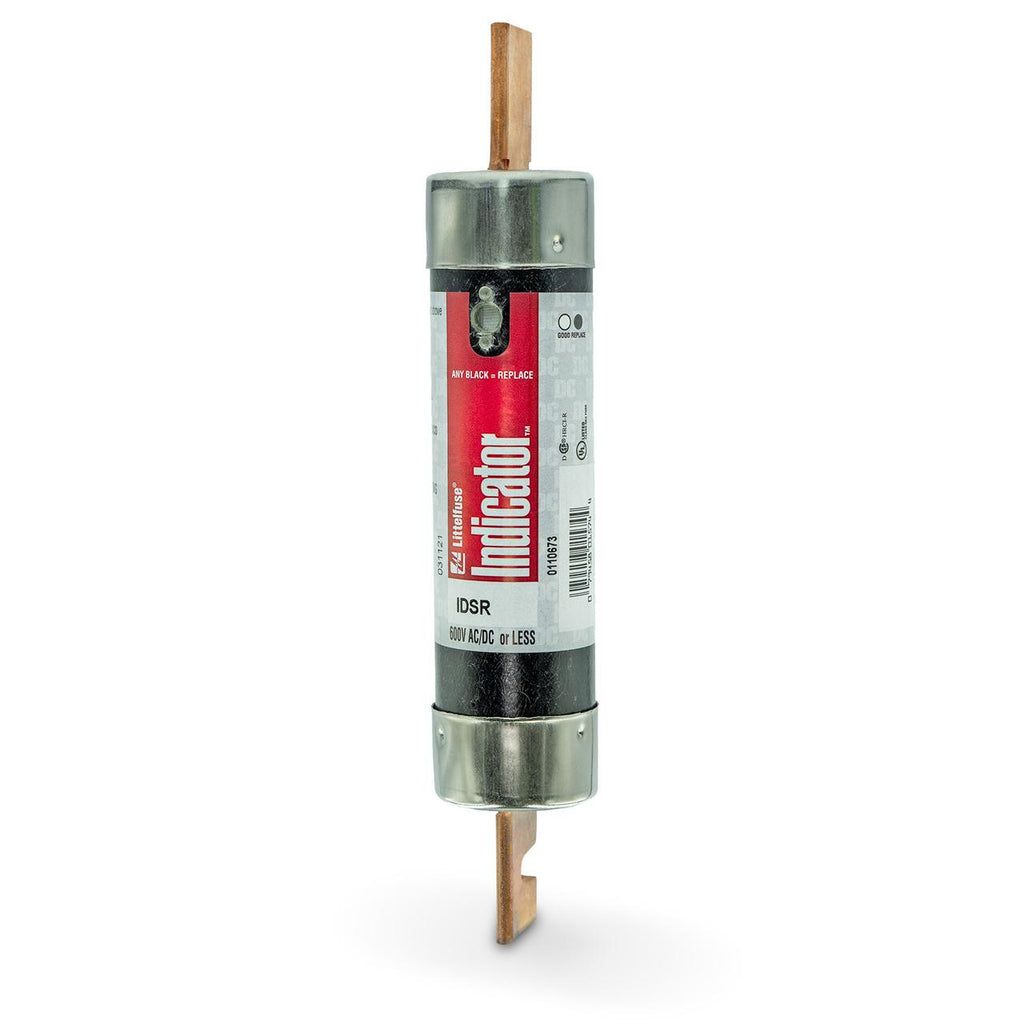

IDSR175 is a 175 ampere, 600 volt AC/DC Class RK5 time delay fuse from Littelfuse featuring a dual-element design and visual blown fuse indication.

This Littelfuse IDSR175 fuse offers advanced short circuit and overload protection with current limiting capabilities to restrict fault currents. It has a cylindrical body measuring 1 27/32 inches in diameter and 9 5/8 inches in length. The fuse is UL and CSA certified, suitable for low voltage applications, and provides a high interrupt rating of 200 kA AC and 20 kA DC. The visual indicator window turns black when the fuse blows, allowing quick identification without disassembly.

Key Specifications
• Amperage: 175 A
• Voltage Rating: 600 V AC/DC
• Class: RK5
• Time Delay: Dual-element design
• Interrupt Rating: 200 kA AC / 20 kA DC
• Body Type: Cylindrical
• Dimensions: 1 27/32 in diameter x 9 5/8 in length
• Visual Blown Fuse Indicator
• Certifications: UL 198M, UL 248-12, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: IDSR175
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
• Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
• Voltage : 600
• Amperage : 175
• AIC rating : 200kA@600V
• Diameter : 1.84
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945801576
• GTIN : 00079458015768
• Country of Origin : Mexico
• Weight : 1.41
• Certification : Standard 248-12 UL Listed/CSA
