Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

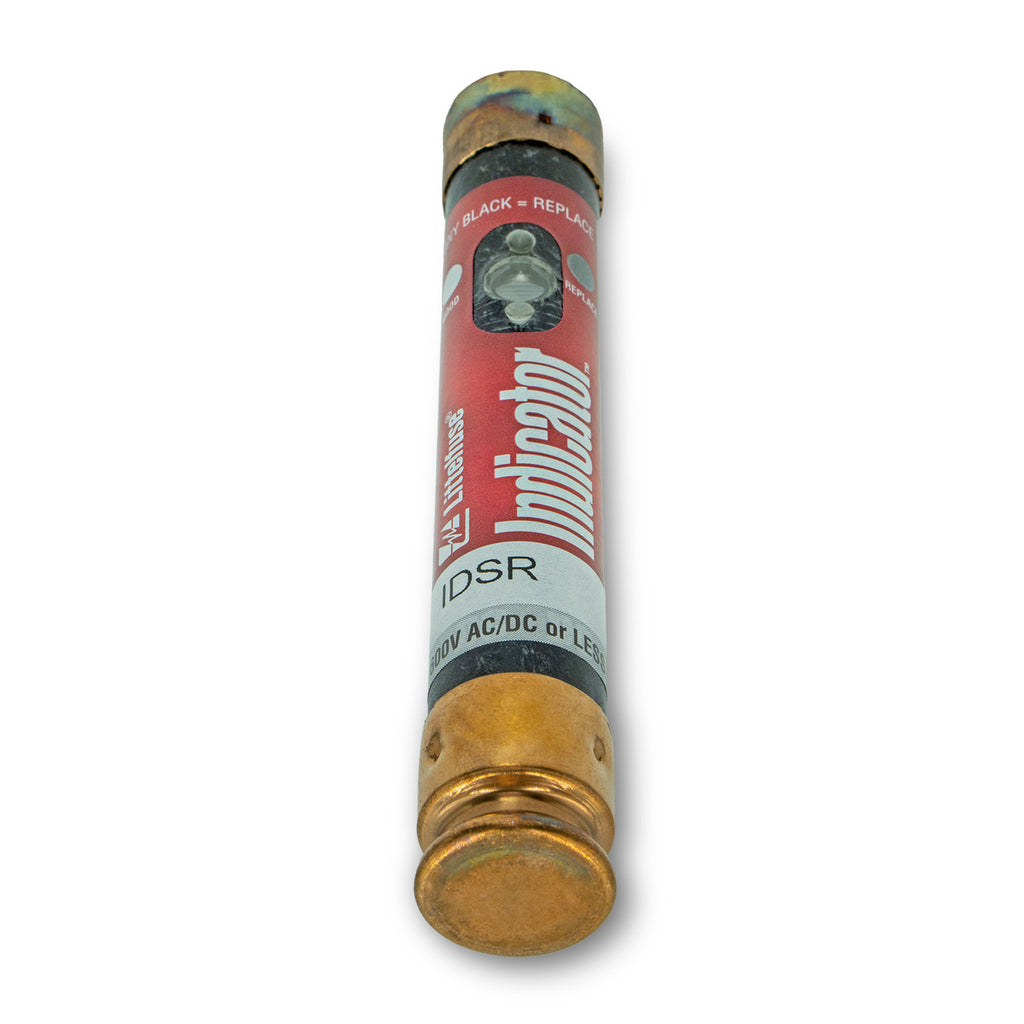

IDSR150

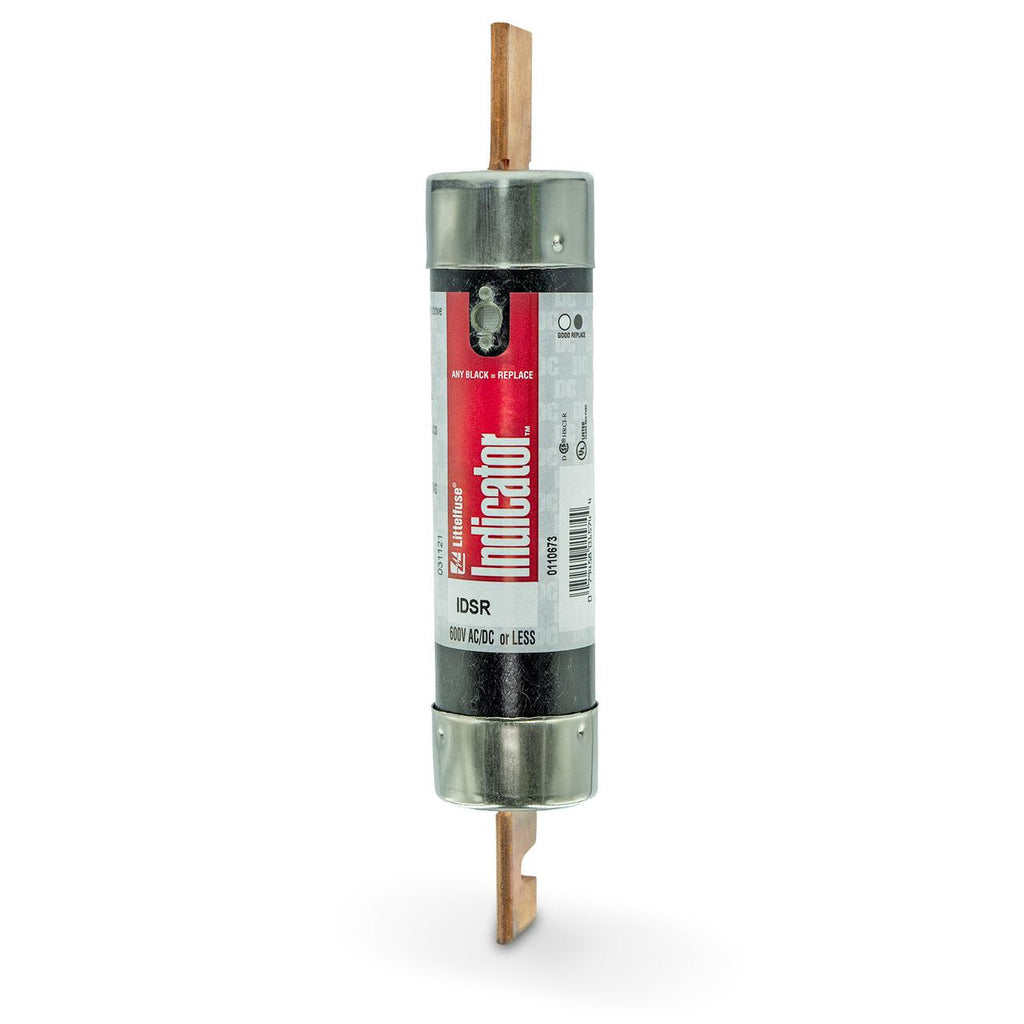

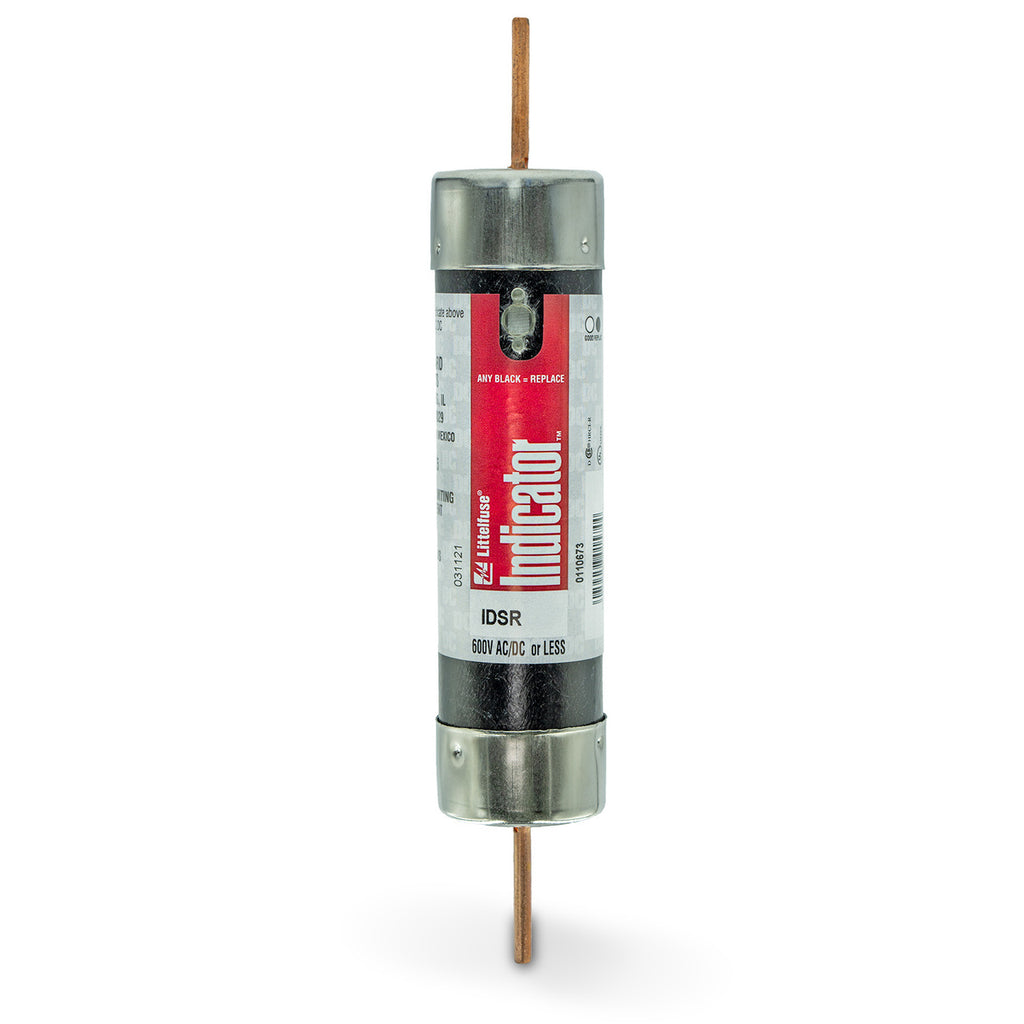

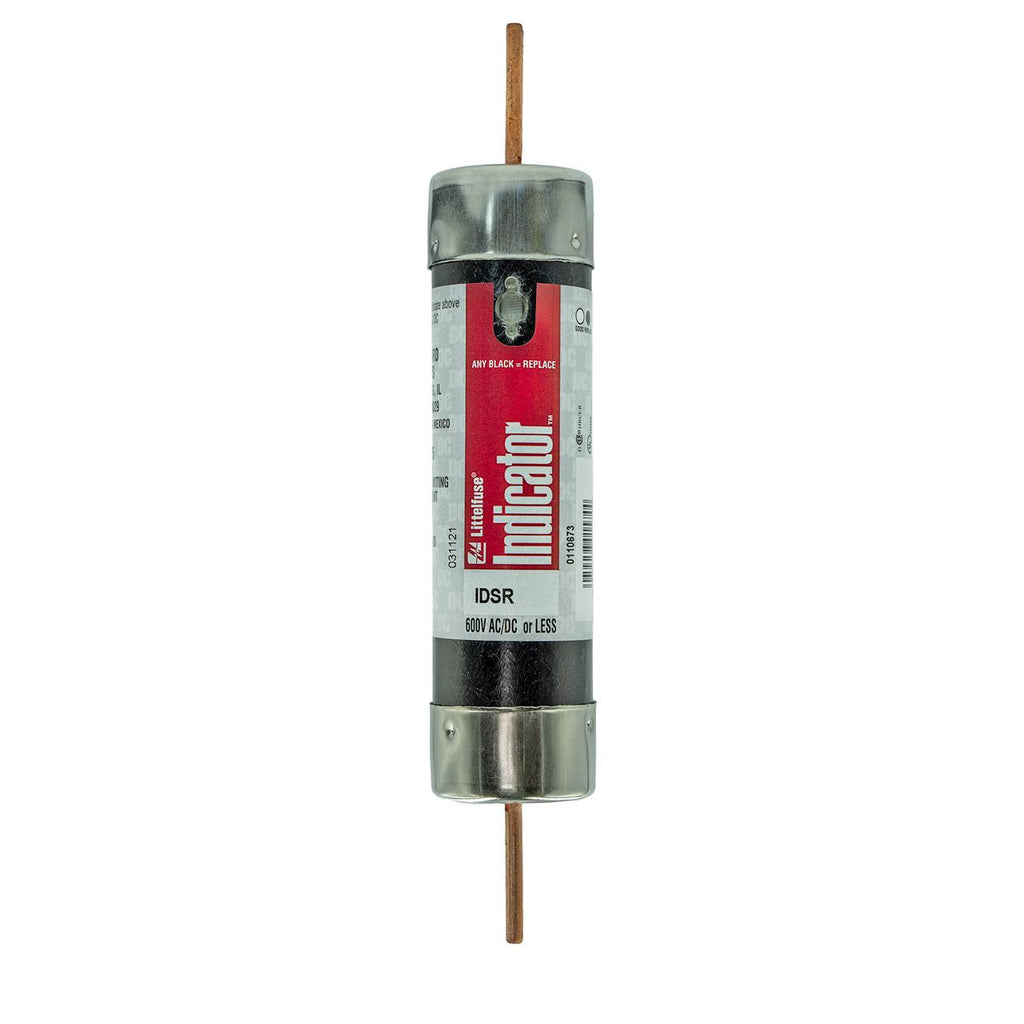

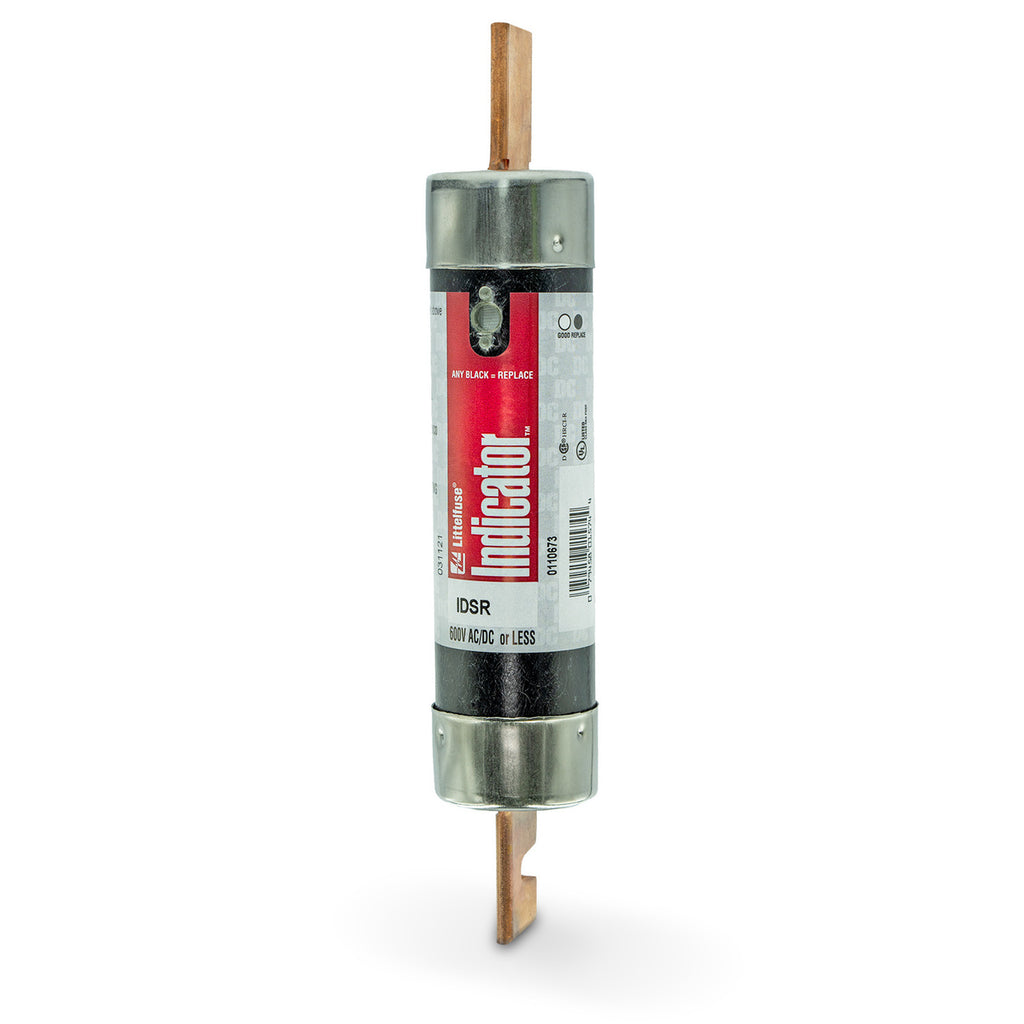

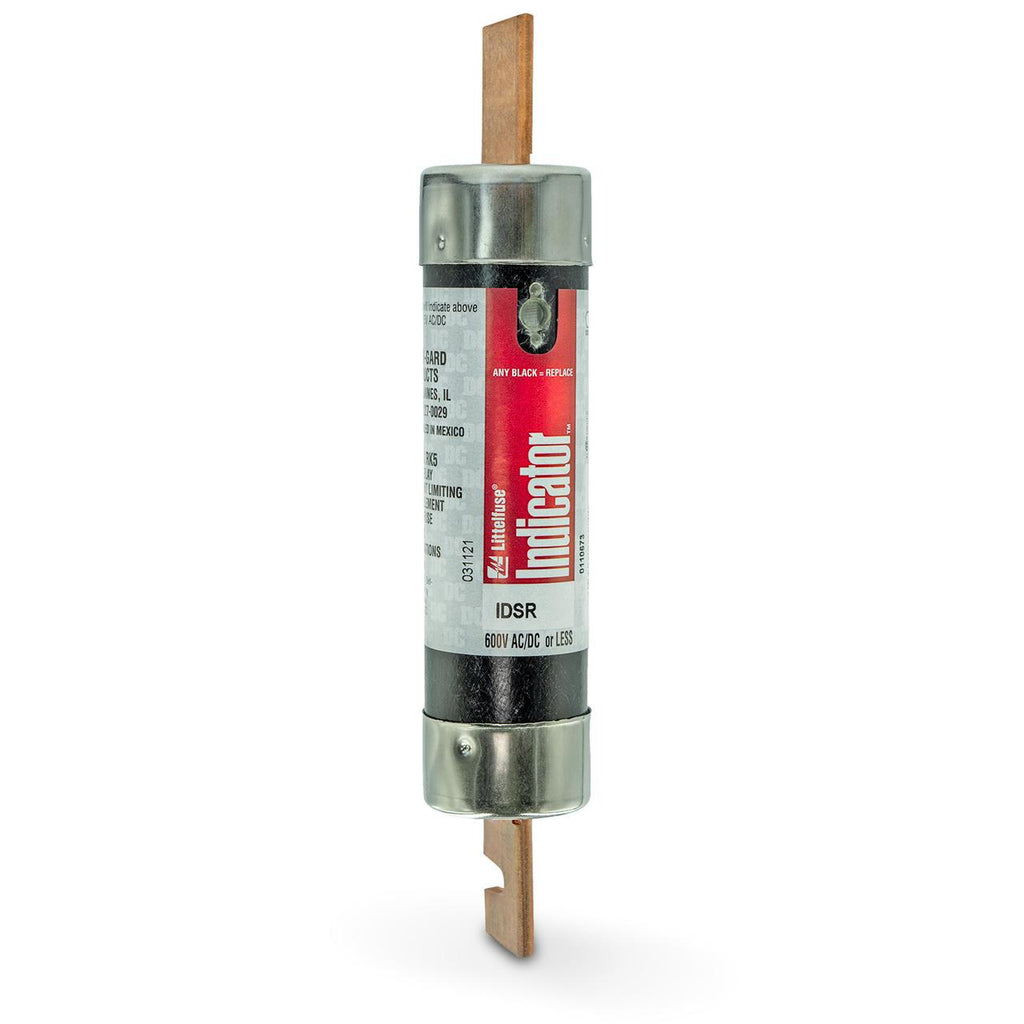

IDSR150 is a Class RK5 fuse designed for reliable circuit protection in demanding electrical applications. This fuse features a time-delay, dual-element construction and built-in indication for easy status monitoring. The IDSR150 fuse is engineered for use in both AC and DC circuits, offering a robust solution for solar inverters, motors, transformers, and lighting systems. Its patented solid-state design ensures maximum reliability and superior performance, making it suitable for a wide range of industrial and commercial environments.
- Amperage: 150 A
- AC Voltage Rating: 600 V
- DC Voltage Rating: 600 V
- Fuse Type: Class RK5
- Response Time: Time Delay
- Element Type: Dual Element
- Mounting Type: Knife Blade
- Interrupting Rating AC: 200 kA rms symmetrical
- Interrupting Rating DC: 20 kA
- Physical Size: 1 27/32" x 9 5/8"
- Standards: UL 248-12, UL 198M, CSA, CE
- Indicator: Yes
Specifications
- Part Number: IDSR150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801575
- GTIN : 00079458015751
- Country of Origin : Mexico
- Weight : 1.4
- Certification : IEC 60127-2
