Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
IDSR125

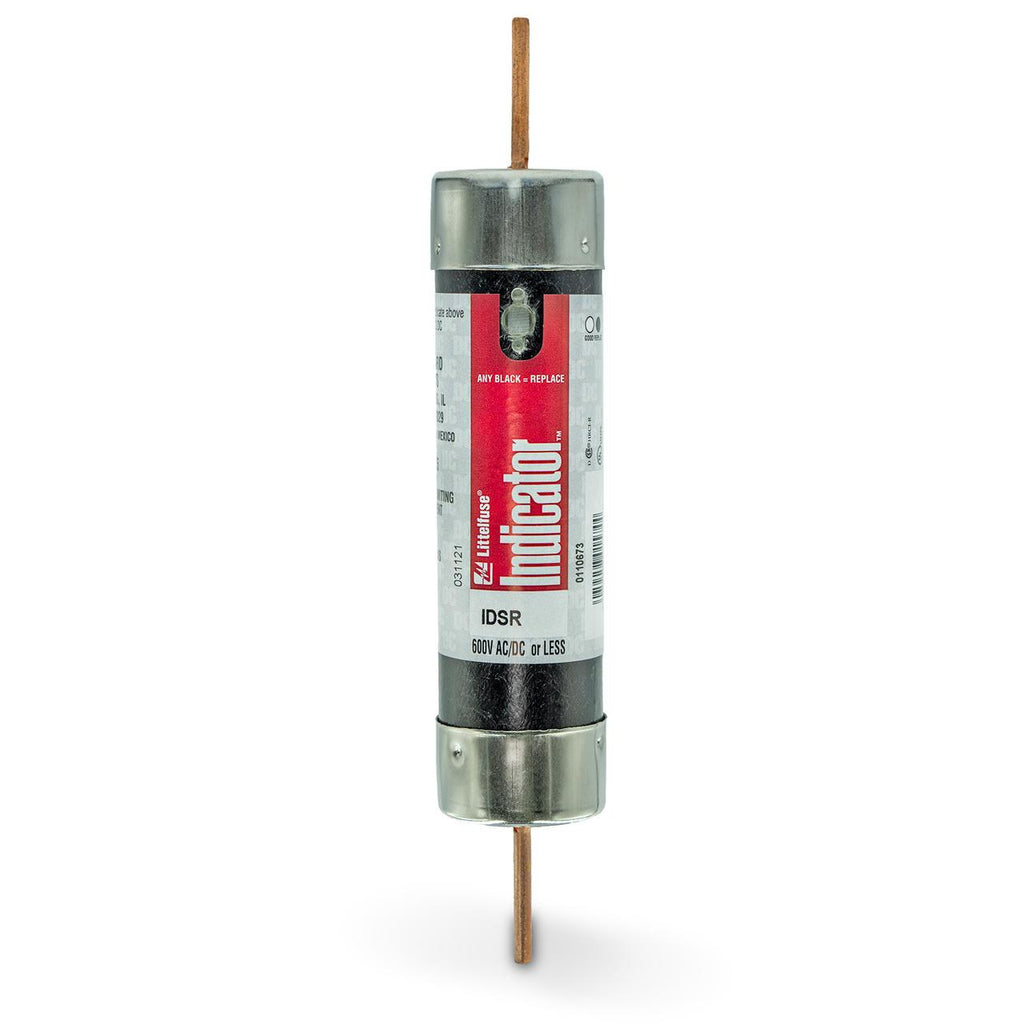

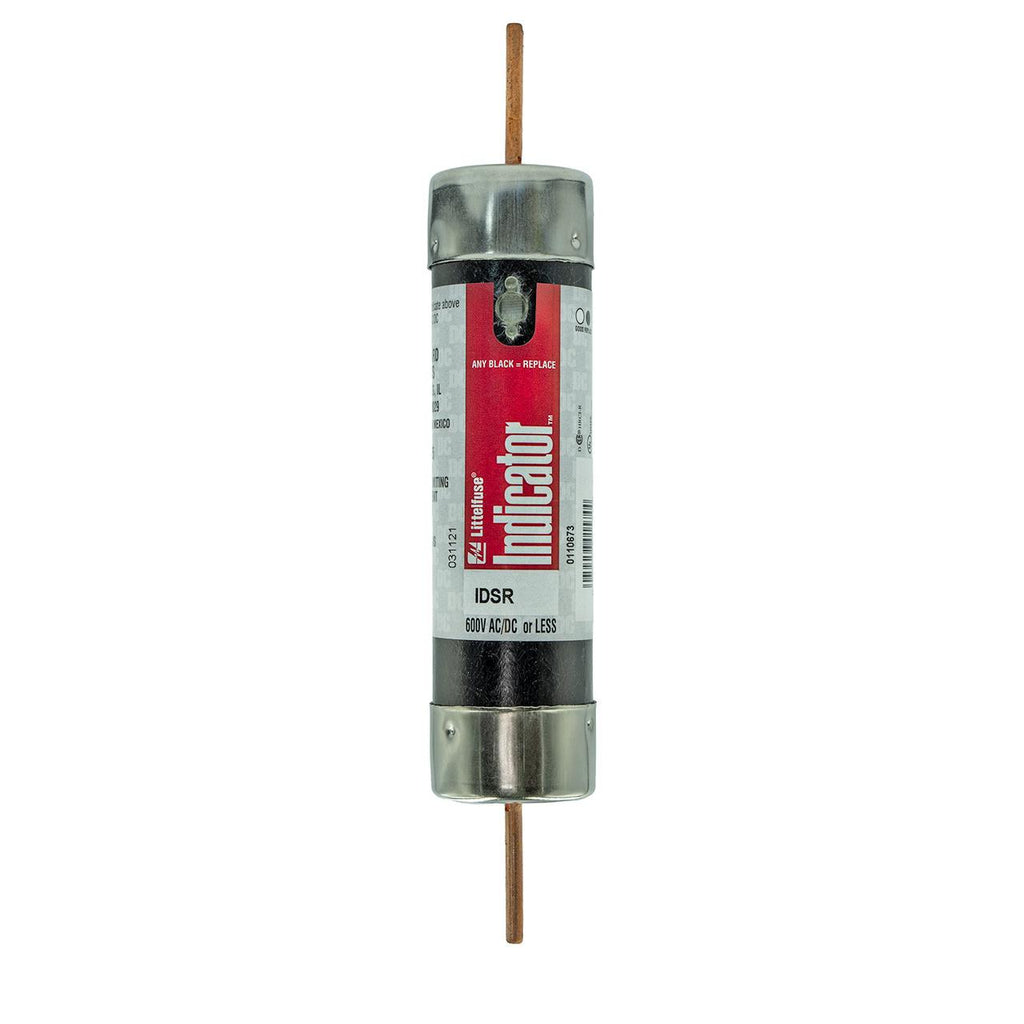

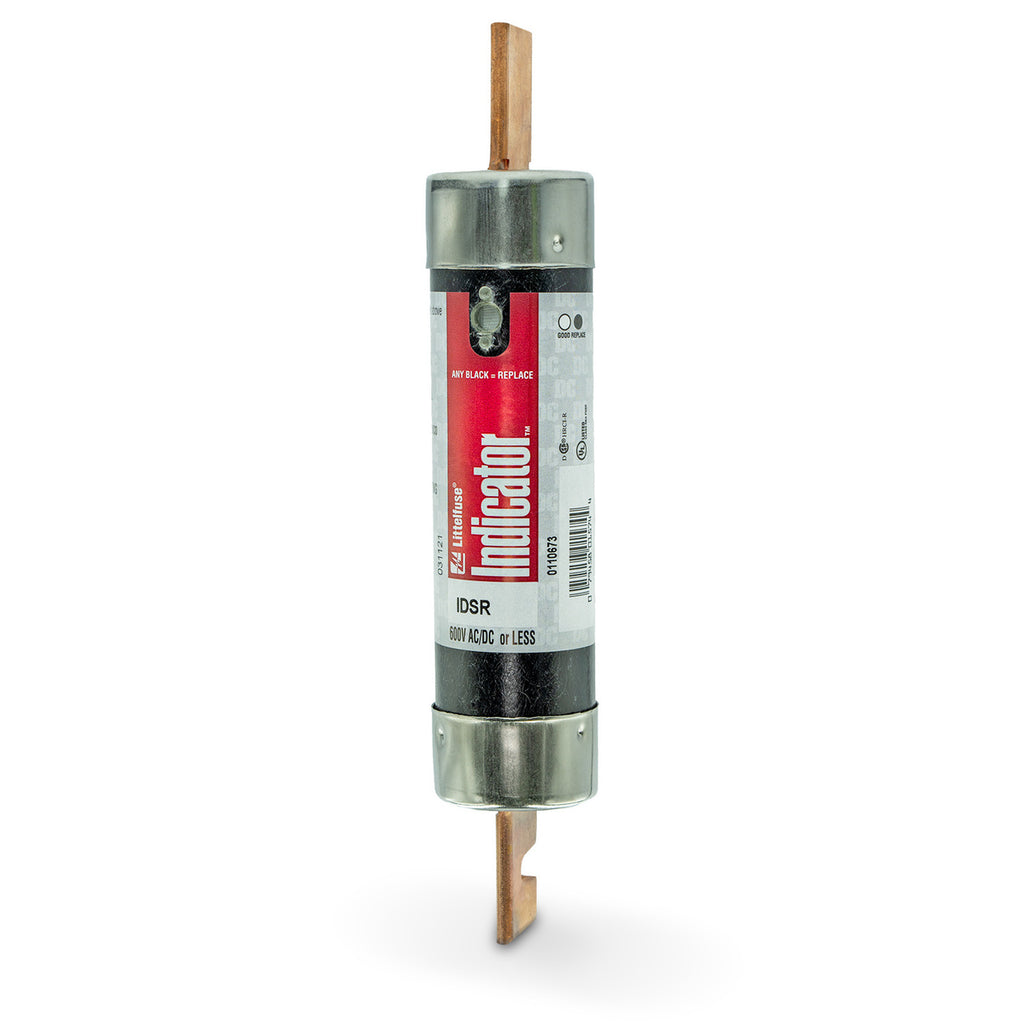

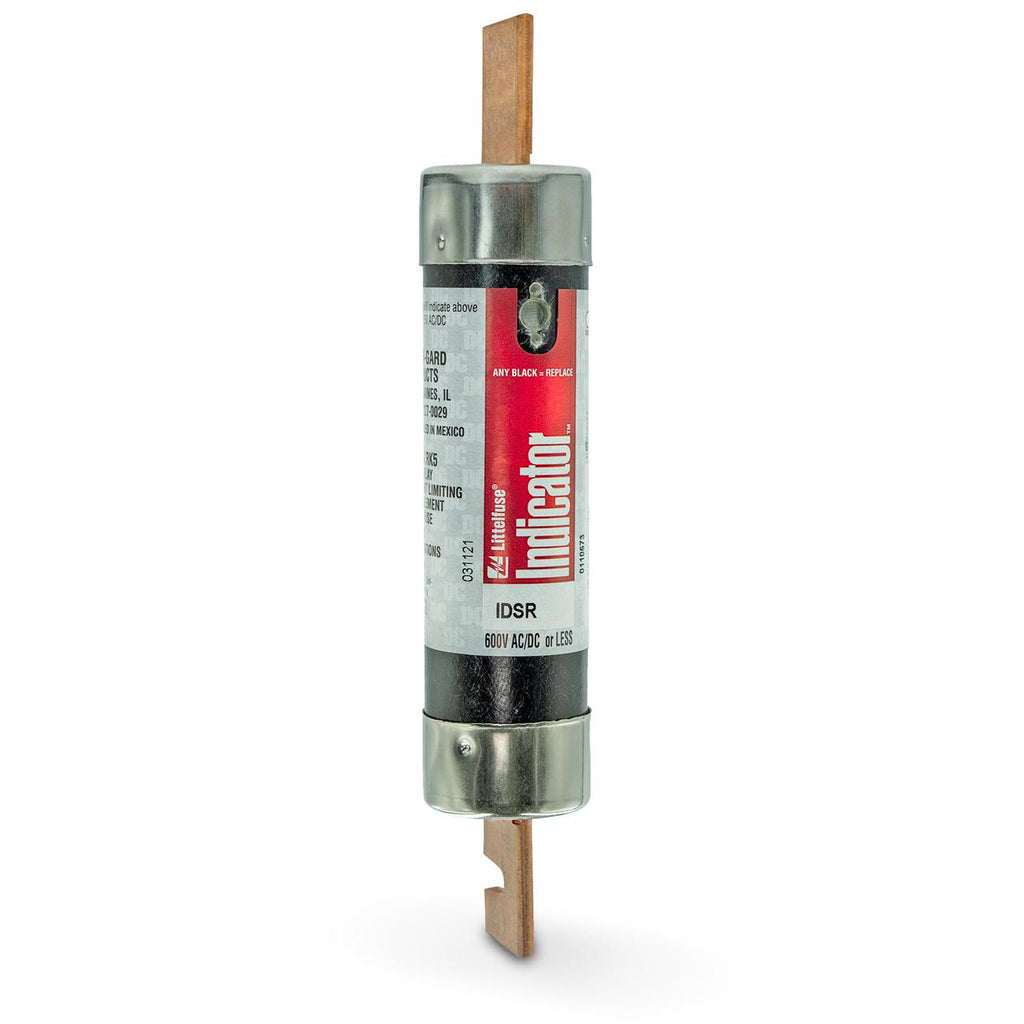

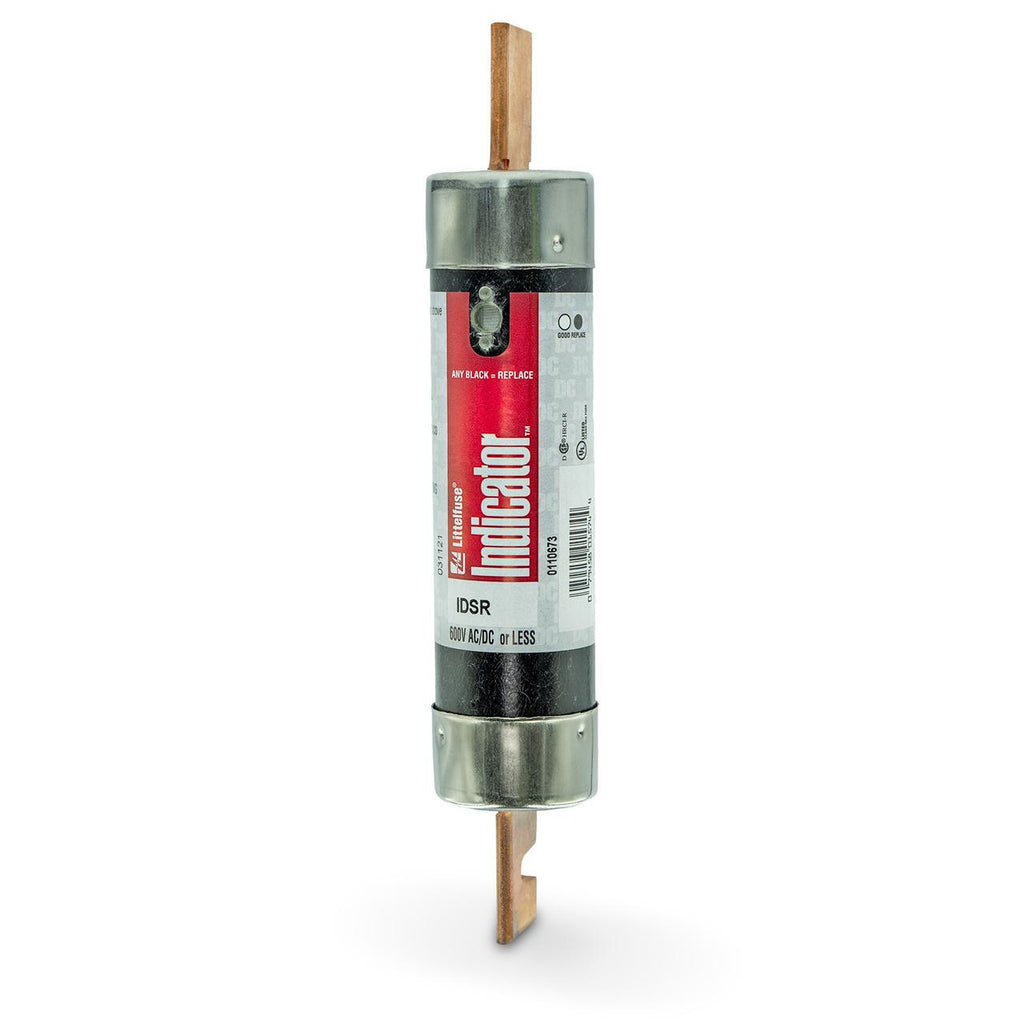

IDSR125 is a 125 amp, 600 volt AC/DC Class RK5 time-delay fuse with an indicator from Littelfuse.This fuse features a dual-element, current-limiting design with a solid-state indicator window that visually signals when the fuse has blown. It is constructed with a knife-blade mounting style and provides excellent short-circuit and overload protection for industrial and electrical applications. The fuse is rated for 600 VAC and 600 VDC operation, with interrupt ratings of 200 kA AC and 20 kA DC, making it suitable for demanding power distribution environments.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600 VAC / 600 VDC
- Fuse Class: RK5
- Speed: Time Delay (Slow Blow)
- Mounting Type: Blade (Knife-Blade Style)
- Interrupt Rating AC: 200 kA
- Interrupt Rating DC: 20 kA
- Length: 9 5/8 inches
- Diameter: 1 27/32 inches
- Dual Element Design
- Visual Blown Fuse Indication
- Current Limiting
- Part Number: IDSR125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
- UPC : 07945801574
- GTIN : 00079458015744
- Country of Origin : Mexico
- Weight : 1.43
- Certification : IEC 60127-2
