Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
IDSR035

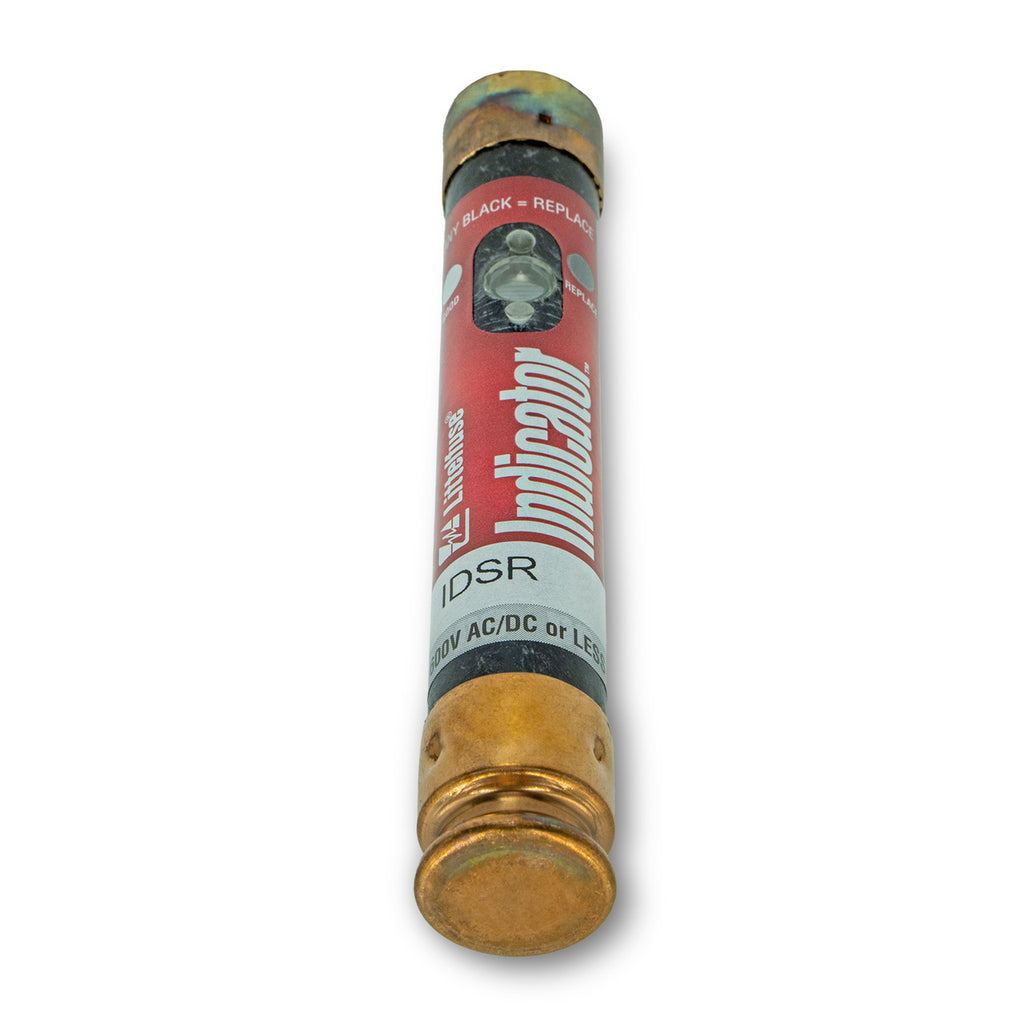

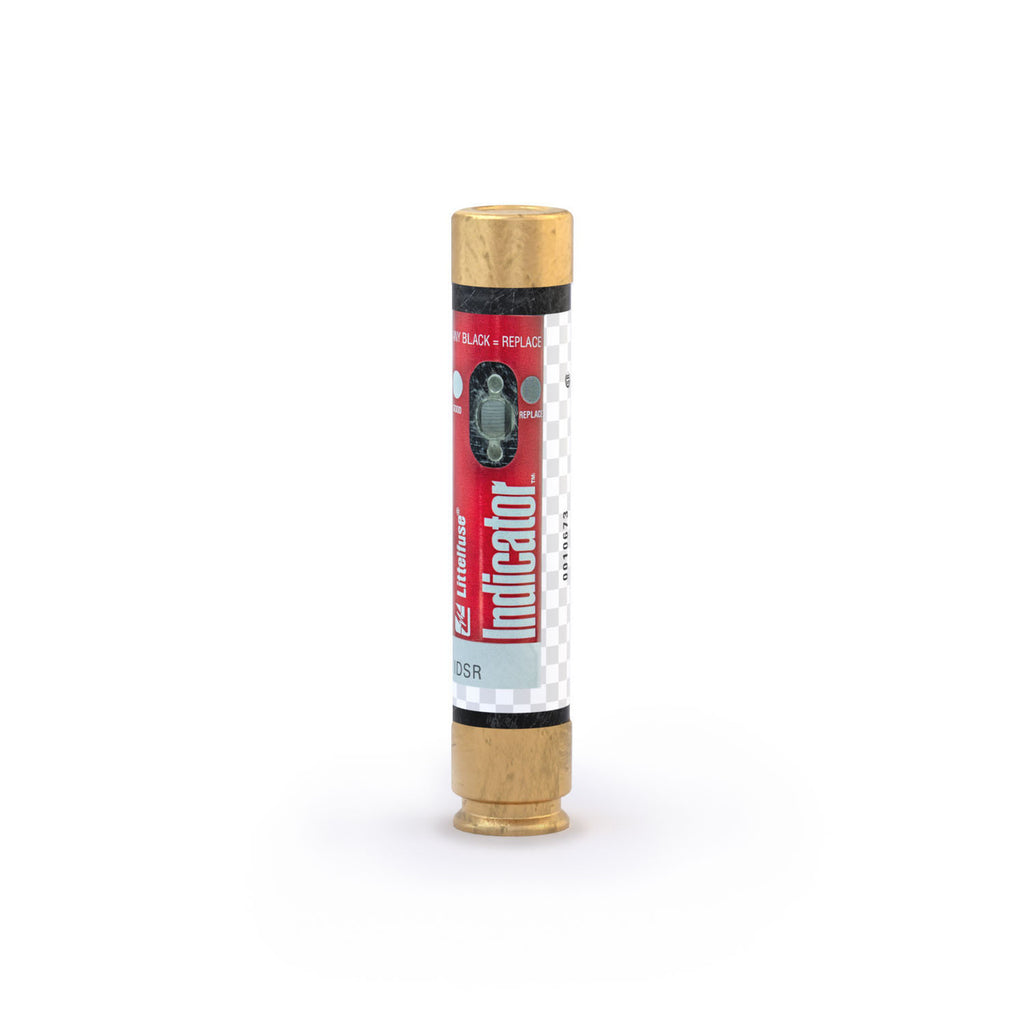

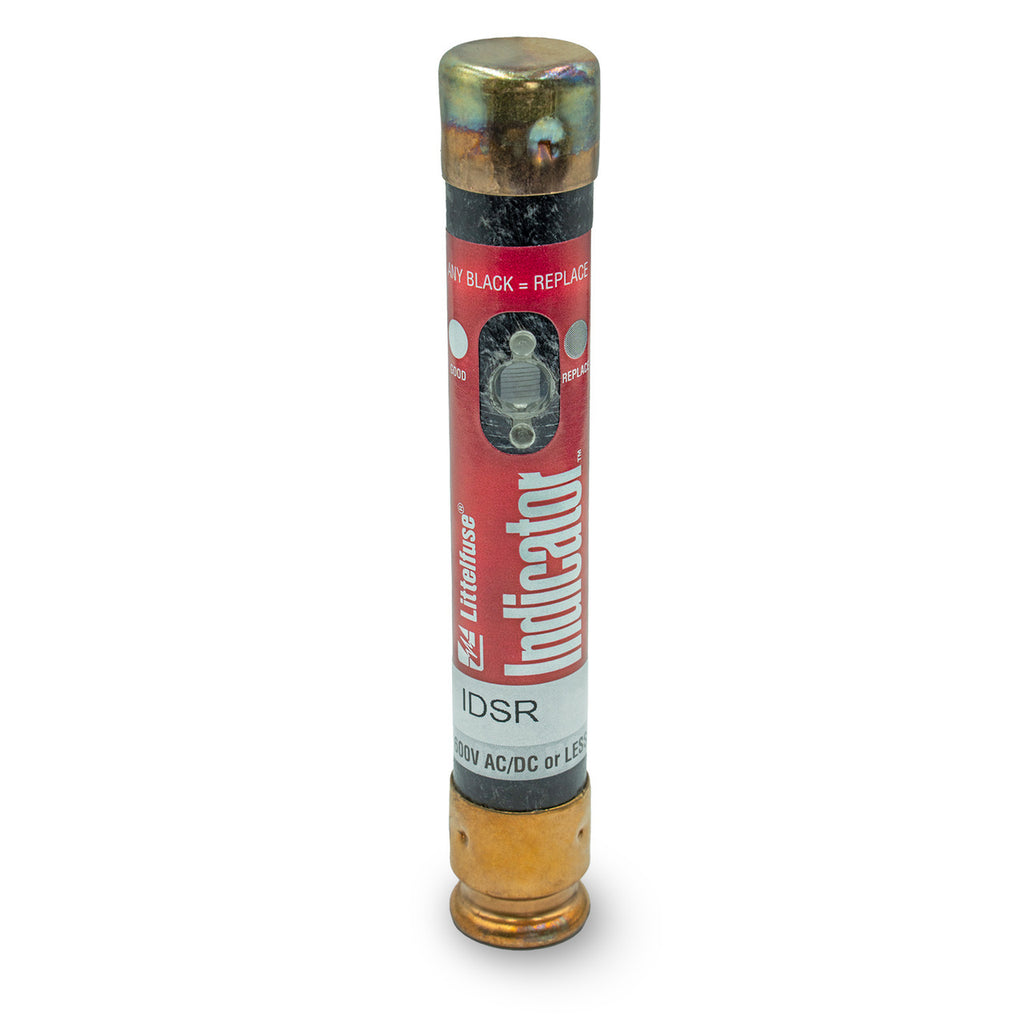

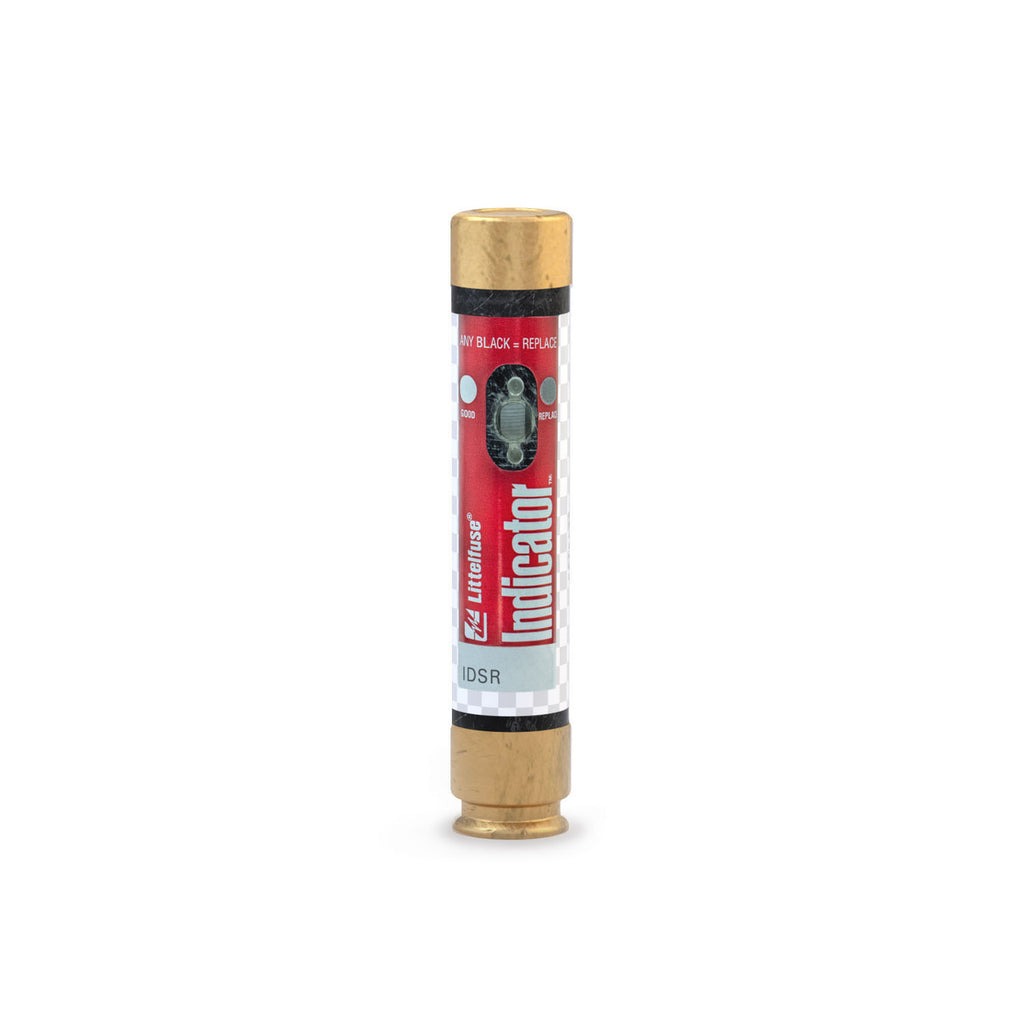

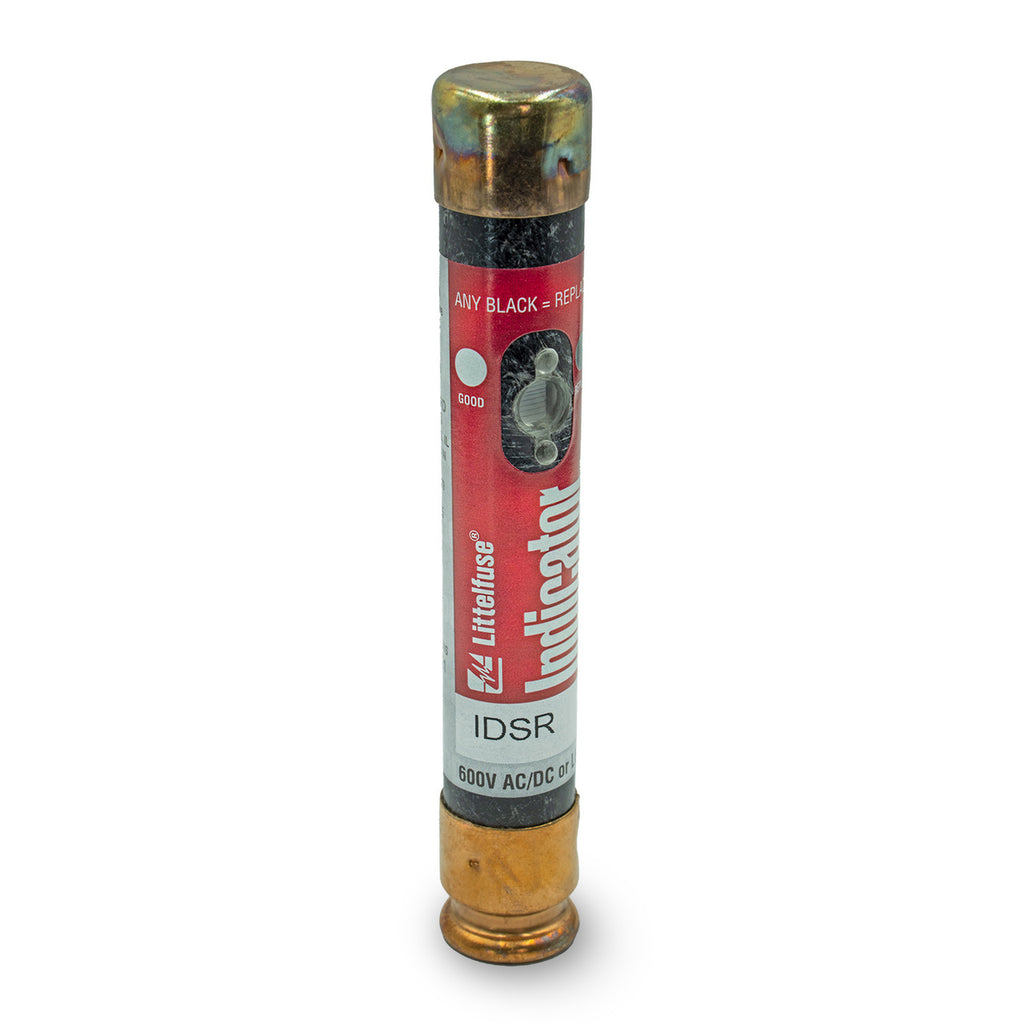

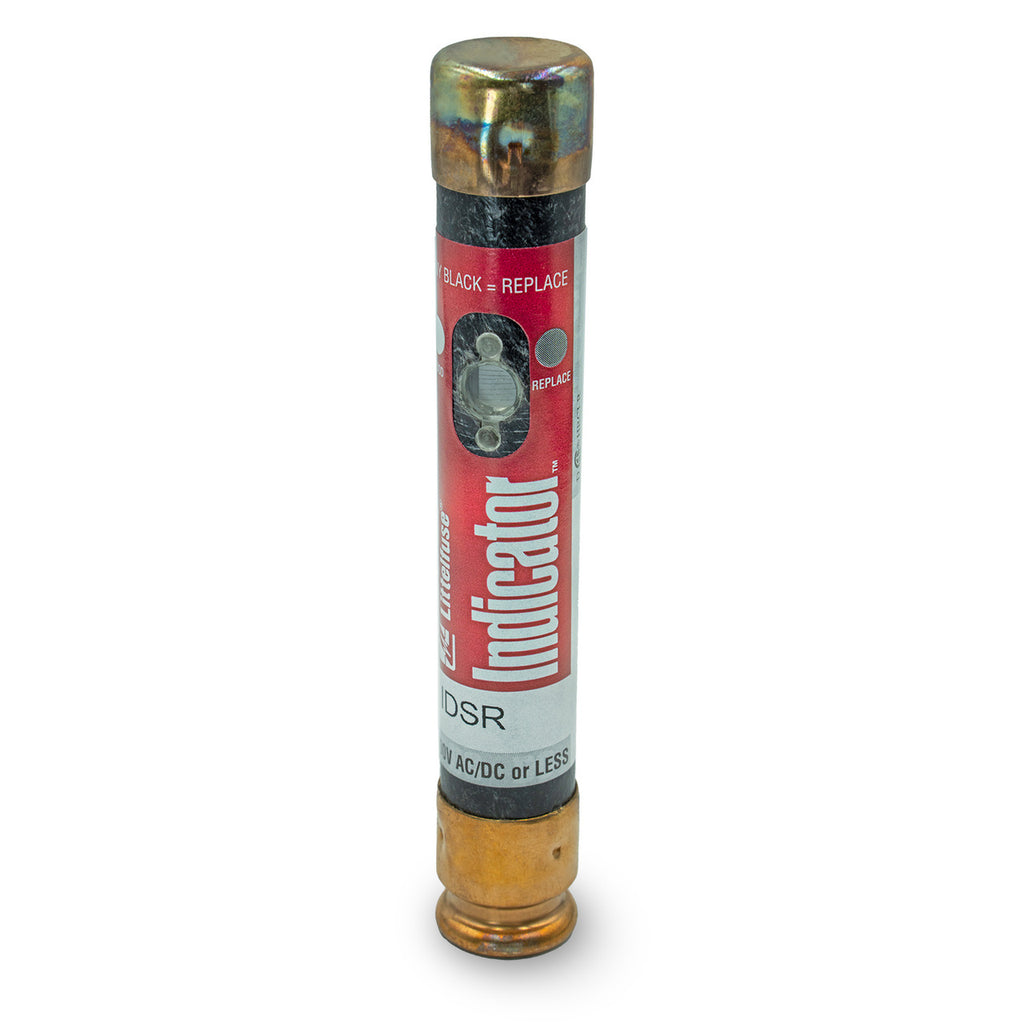

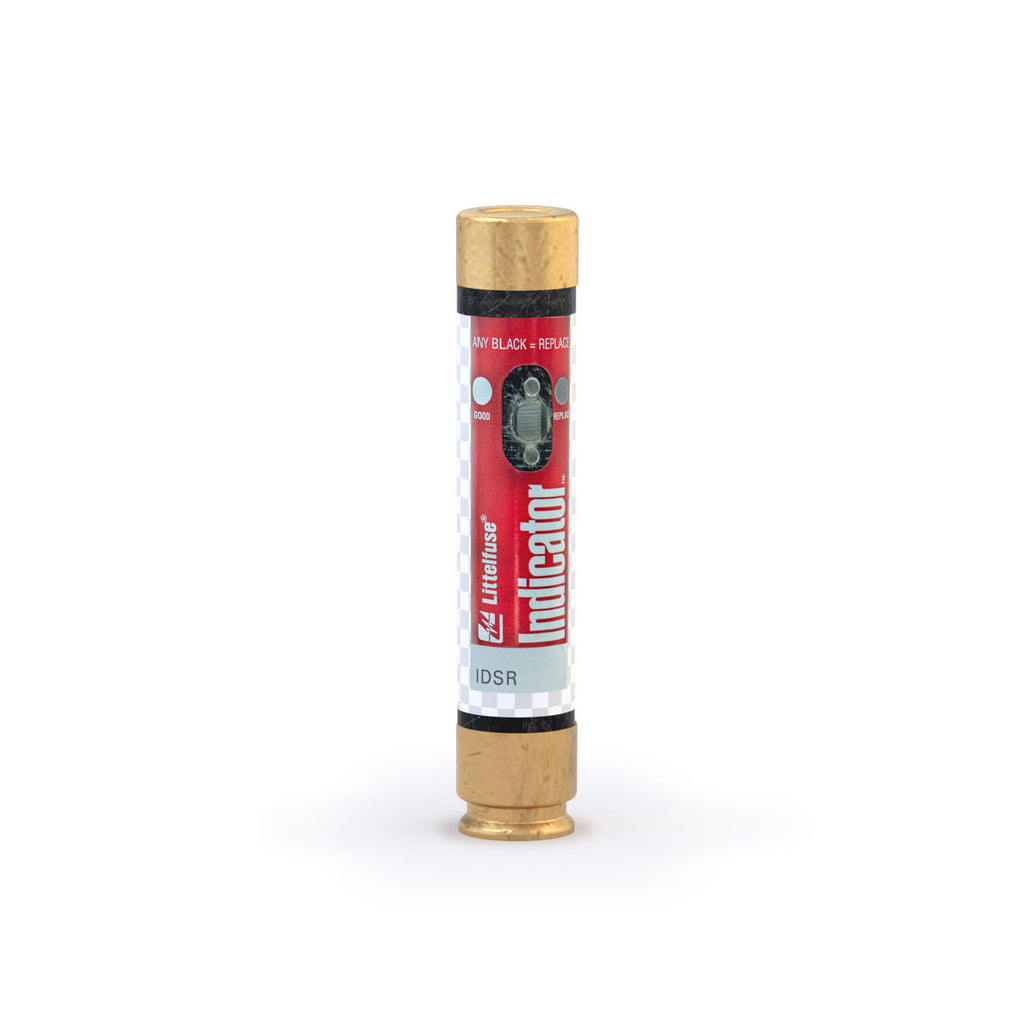

IDSR035 is a Class RK5 time-delay, dual-element fuse rated for 600V AC and DC applications with current-limiting protection. Littelfuse IDSR series fuses feature a patented solid-state design combining advanced short-circuit and overload protection with visual blown fuse indication. The dual-element construction provides excellent fault current response while the current-limiting design restricts fault currents to enhance circuit protection. Ideal for DC circuits, solar inverters, motors, transformers, solenoids, and fluorescent lighting applications. Key Specifications
- Amperage: 35A
- Voltage Rating: 600V AC / 600V DC
- Class: RK5
- Type: Dual Element, Time Delay
- Interrupt Rating: 200 kA AC (rms symmetrical) / 20 kA DC
- Mounting: Cartridge
- Physical Size: 1-1/16 inch diameter x 5-1/2 inch length
- Current Limiting: Yes
- Certifications: UL 248-12, UL 198M, CSA, CE
- Visual Indication: Blown fuse window turns black
- Country of Origin: Mexico
Specifications
- Part Number: IDSR035
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 35
- AIC rating : 200kA@600V
- Diameter : 3.09
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801563
- GTIN : 00079458015638
- Country of Origin : Mexico
- Weight : 0.35
- Certification : IEC 60127-2
