Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
IDSR025

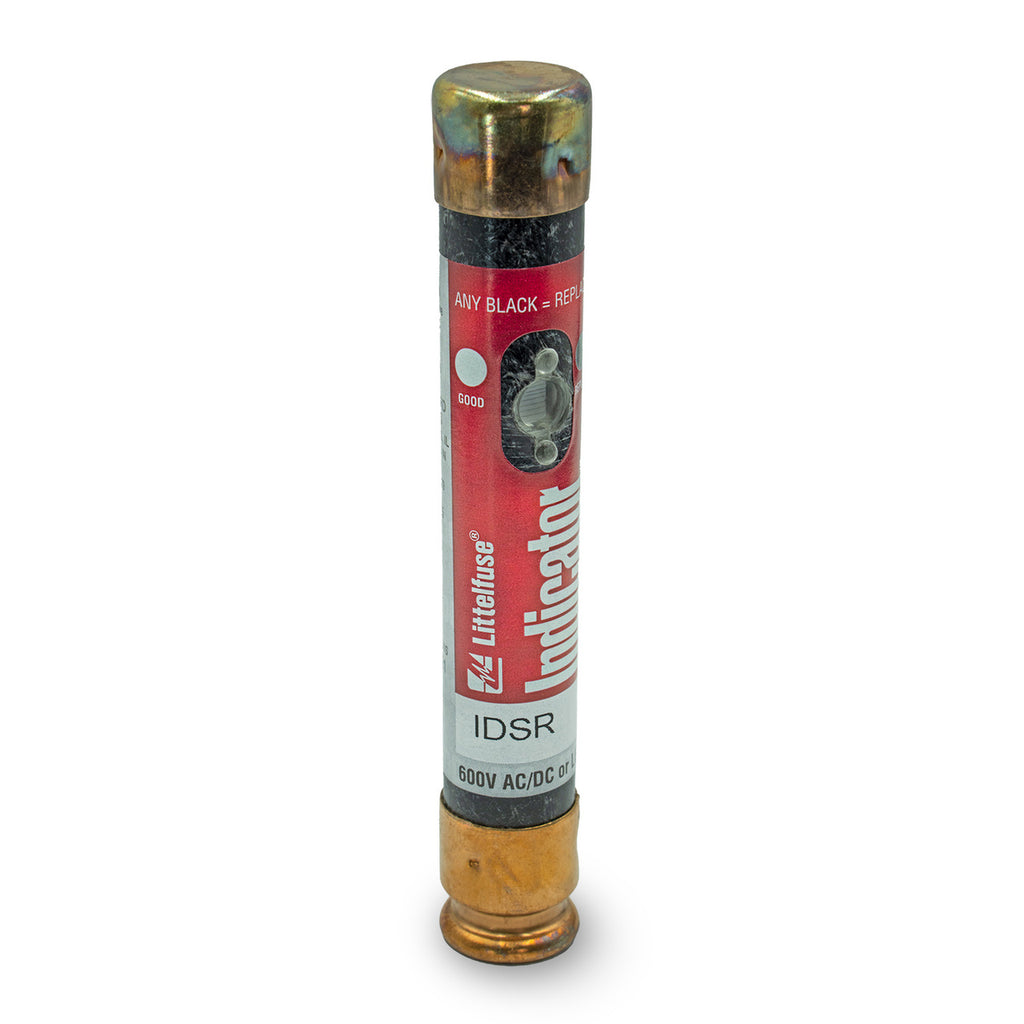

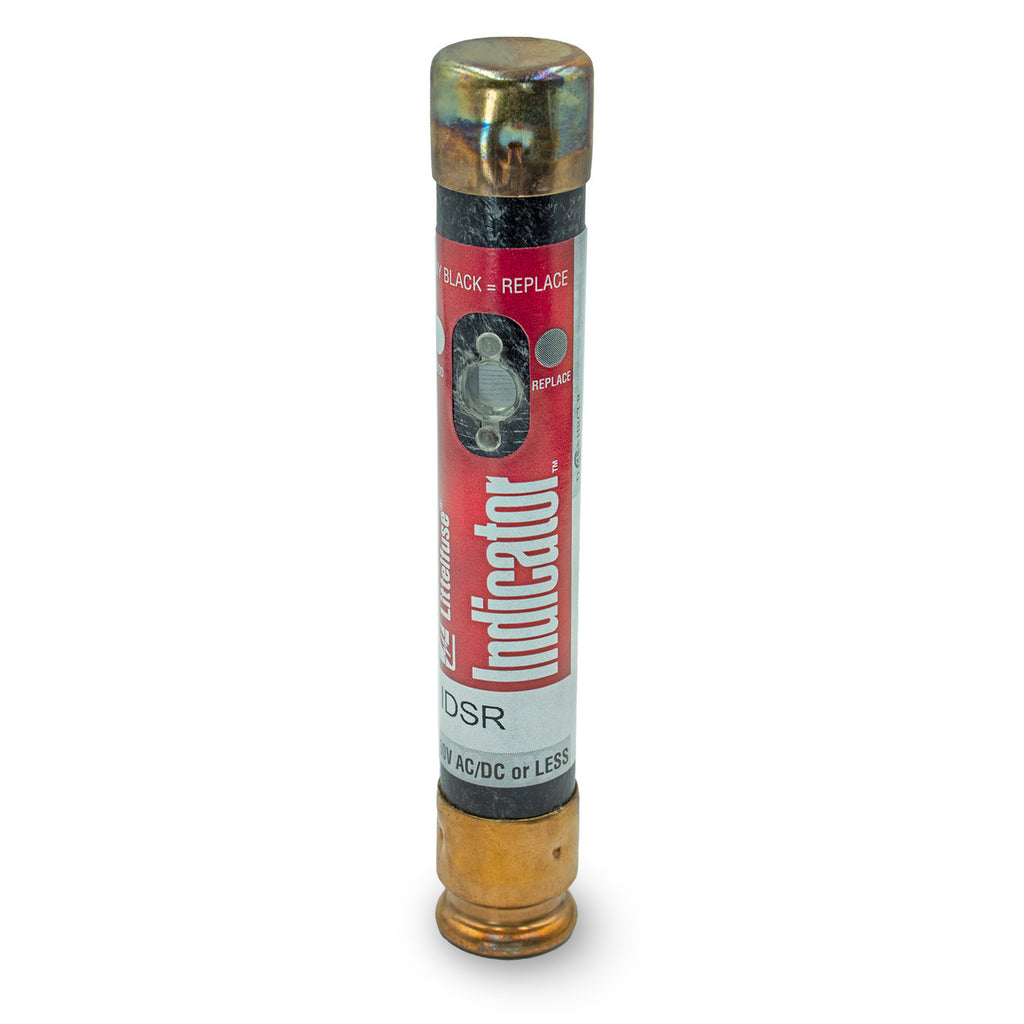

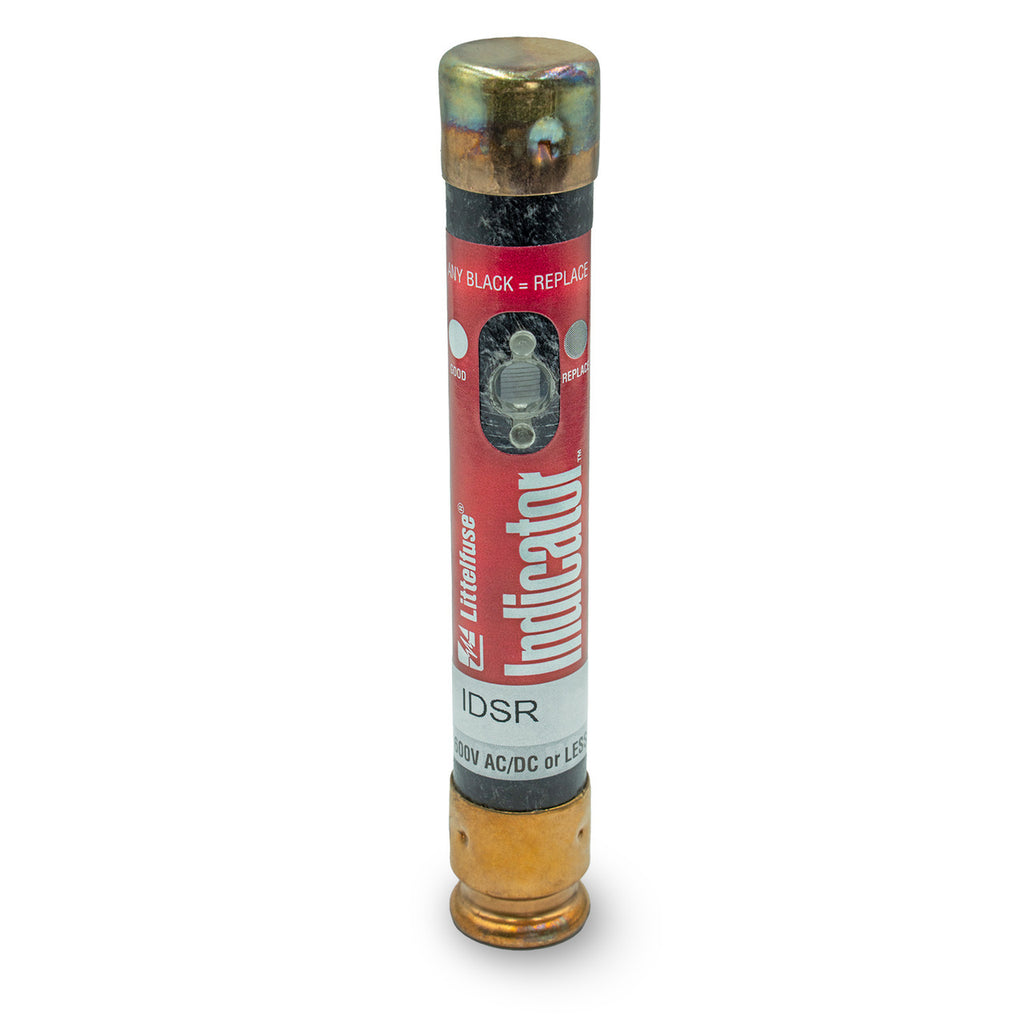

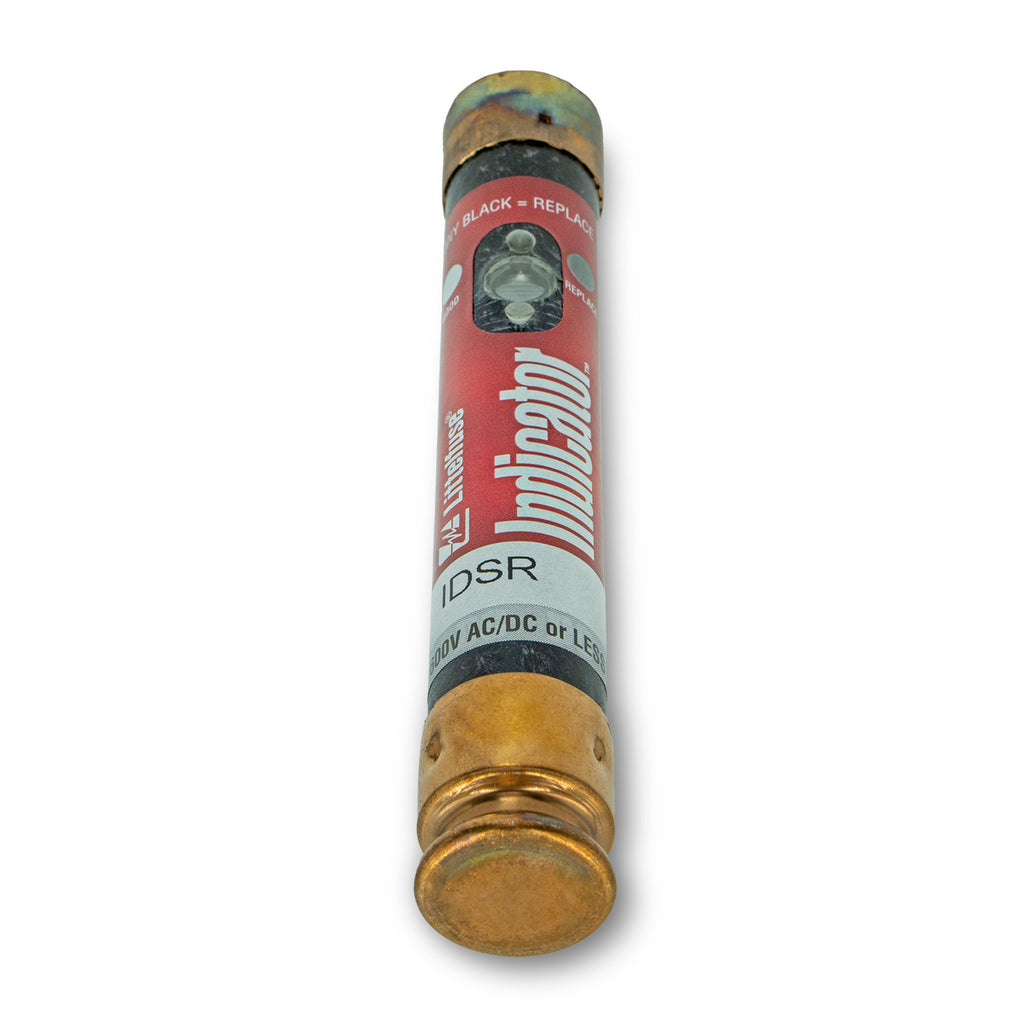

IDSR025 is a Littelfuse POWR-GARD Class RK5 current limiting time delay fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a dual-element design for advanced short-circuit and overload protection, with a visual indication window that turns black when blown for quick identification. The IDSR025 fuse is suitable for both AC and DC circuits, offering a 600 VAC and 600 VDC voltage rating, and is ideal for use in solar inverters, motors, transformers, and fluorescent lighting systems. Its current limiting technology restricts fault currents, improving safety and equipment reliability.
- 25 A current rating
- 600 VAC voltage rating
- 600 VDC voltage rating
- 200 kA AC interrupting rating
- 20 kA DC interrupting rating
- Class RK5
- Dual-element, time delay design
- Visual blown fuse indication
- Cylindrical cartridge body
- UL 248-12 certified
Specifications
- Part Number: IDSR025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801561
- GTIN : 00079458015614
- Country of Origin : Mexico
- Weight : 0.18
- Certification : Standard 248-12 UL Listed/CSA
