Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
IDSR020

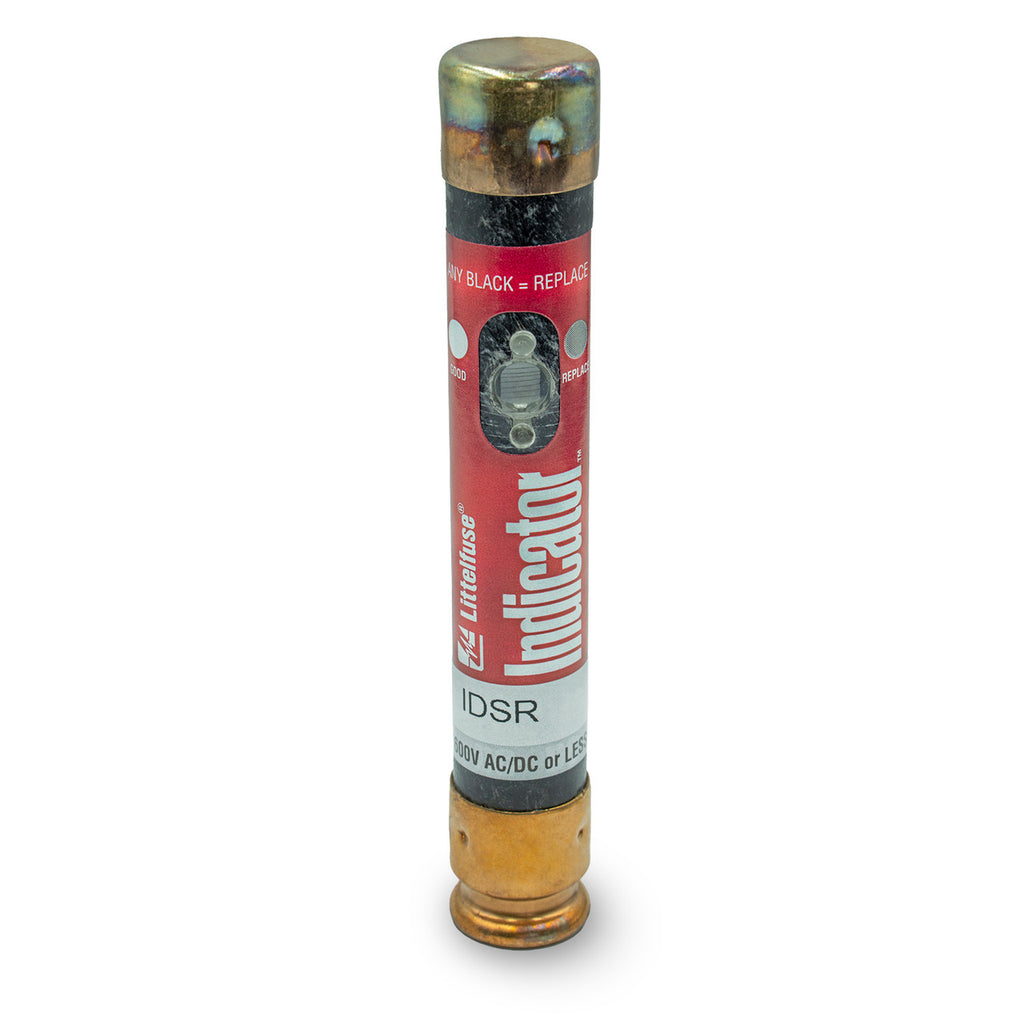

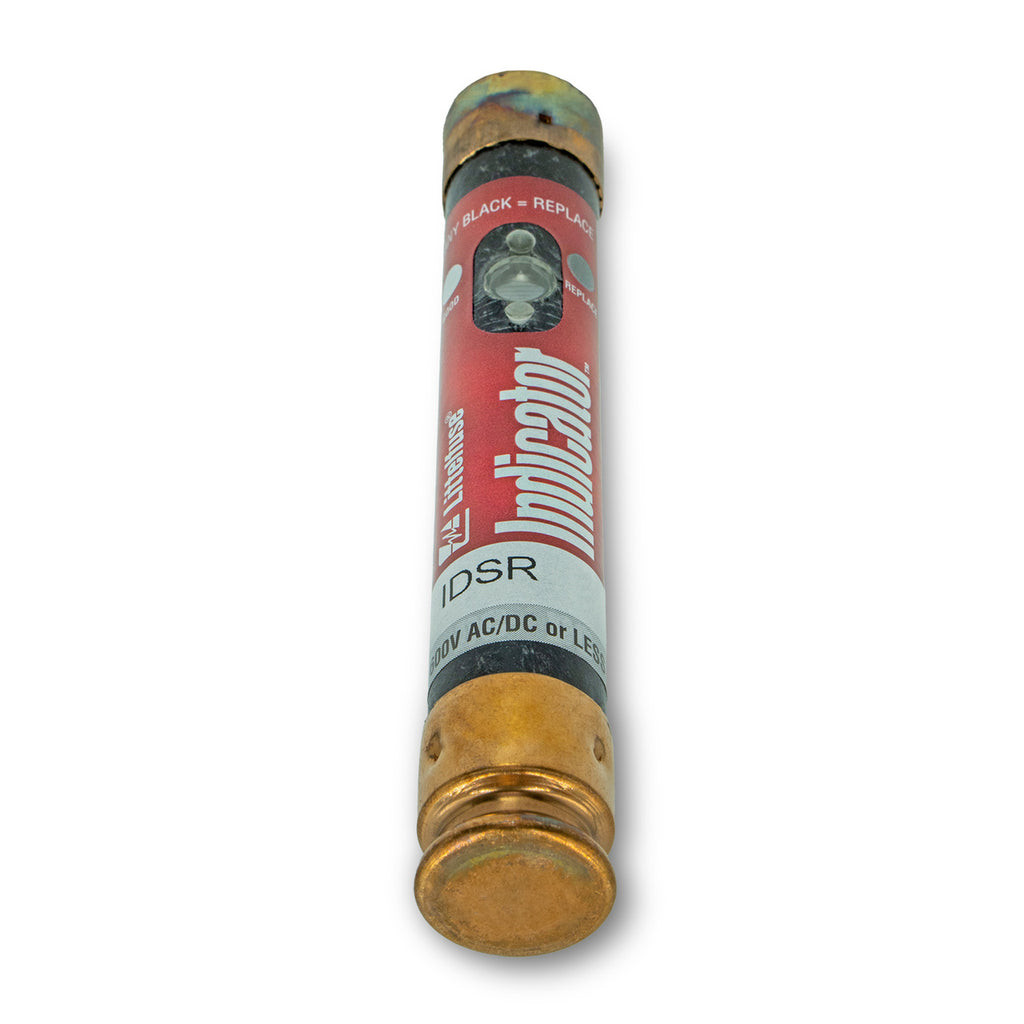

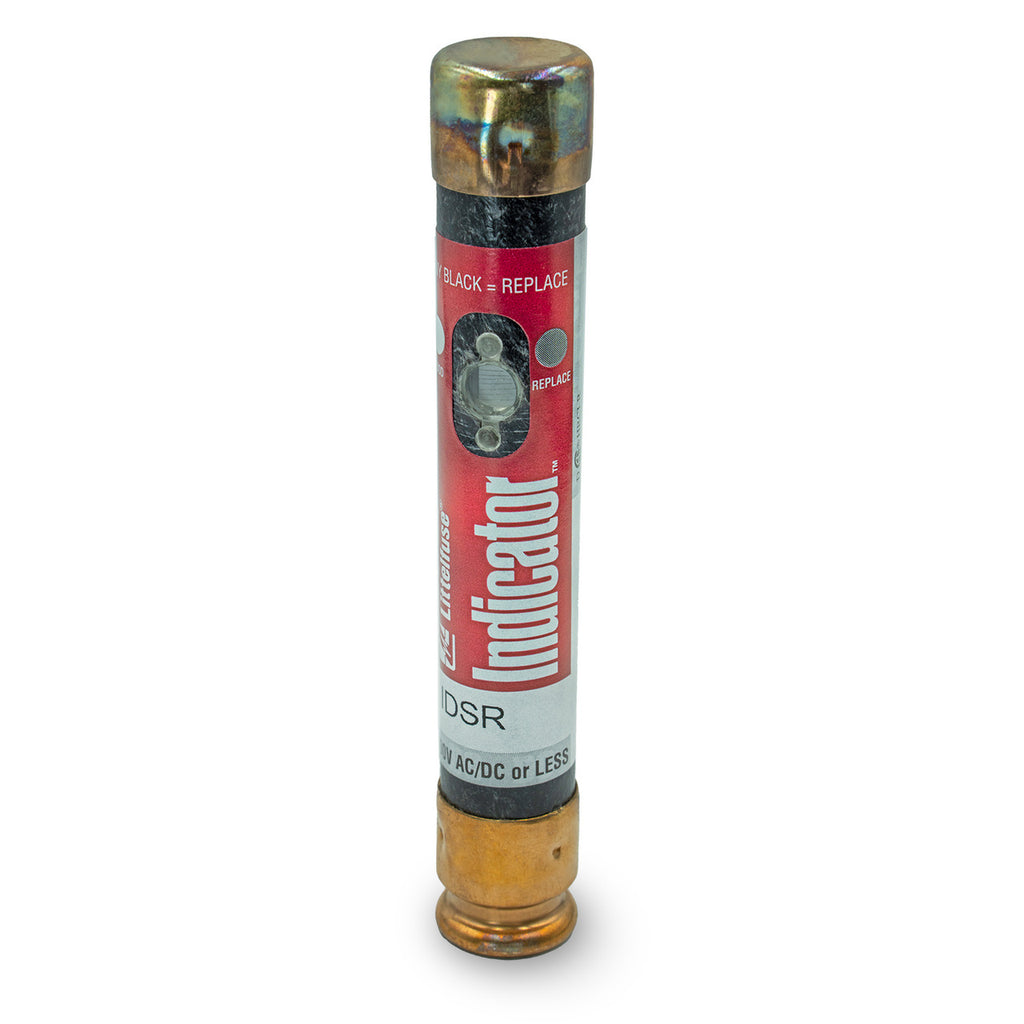

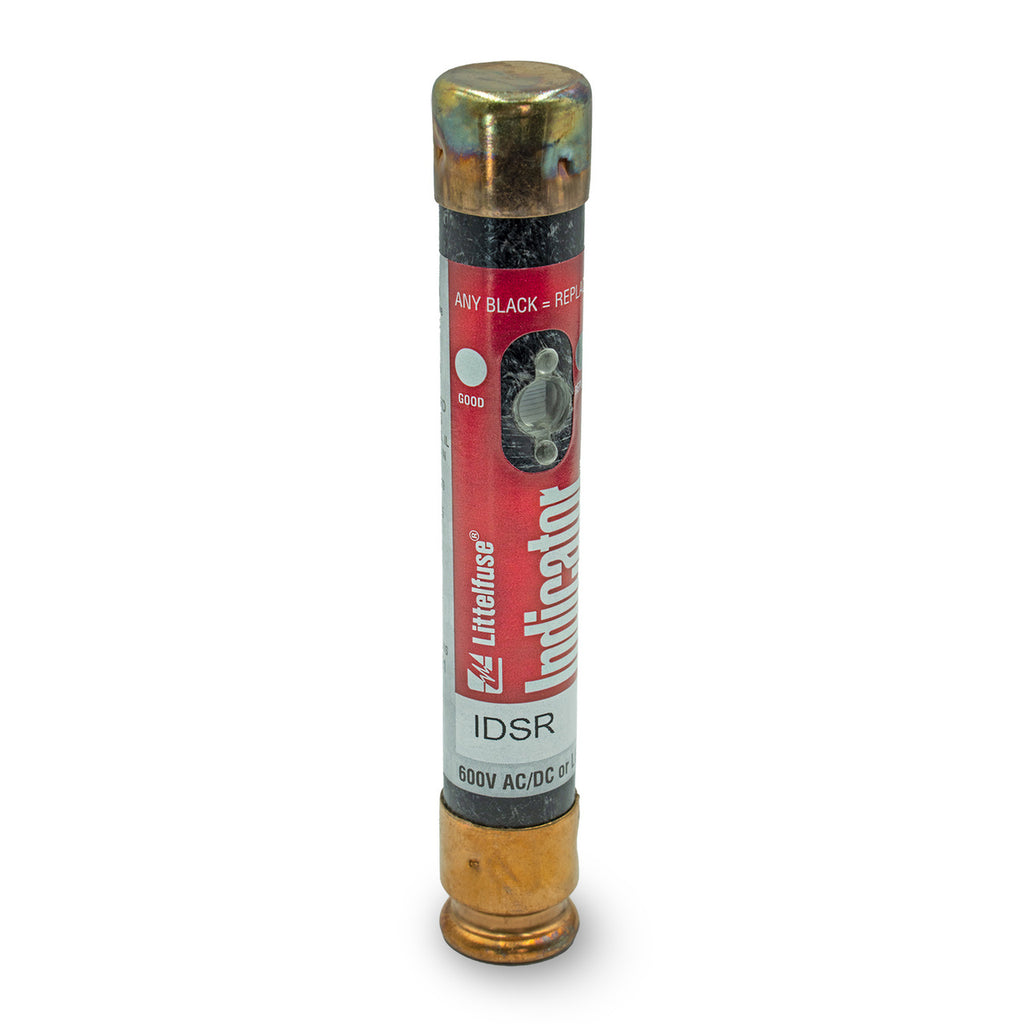

IDSR020 is a 20 amp, 600 volt AC/DC Class RK5 time delay cartridge fuse from Littelfuse designed for industrial applications.This fuse features a dual-element, time-delay design with current limiting capability and an indicating feature for status monitoring. It is suitable for protecting motors, transformers, solenoids, solar inverters, and fluorescent lighting circuits. The fuse has a 5-inch length and a 13/16-inch diameter, with a 20 kA interrupting rating at 600 V DC and up to 200 kA at 600 V AC. It mounts in fuse blocks, clips, or holders and complies with UL 248-12 and CSA standards.
- Amperage: 20 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK5
- Time Delay (Slo-Blo) Dual Element
- Interrupting Rating: 20 kA DC, 200 kA AC
- Indicating Fuse
- Mounting Type: Cartridge, Fuse Block/Clip/Holder
- Length: 5 inches
- Diameter: 13/16 inches
- UL 248-12 and CSA Certified
Specifications
- Part Number: IDSR020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Type : IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945801560
- GTIN : 00079458015607
- Country of Origin : Mexico
- Dimensions : x 5 1/2 in x
- Weight : 0.18
- Certification : CSA, cUL, UL
